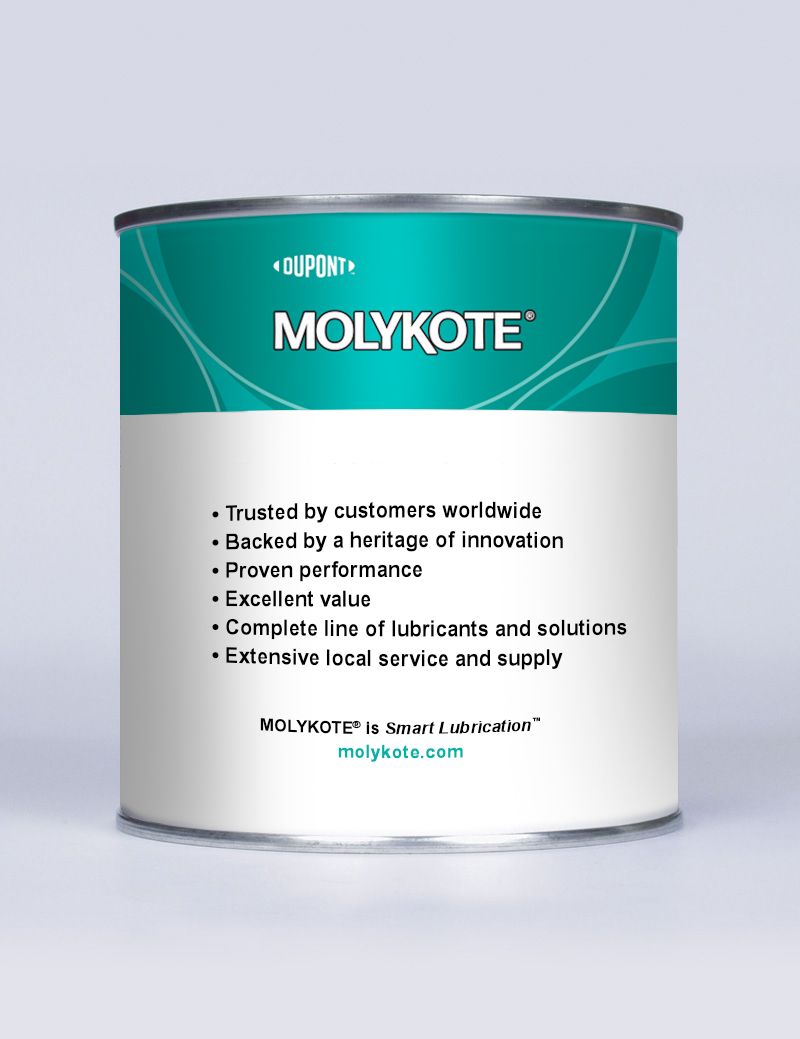

MOLYKOTE D-321 R Anti-Friction Coating
MOLYKOTE D-321 R is a dry-film lubricant available in bulk liquid or aerosol spray forms, designed for metal-to-metal contacts operating under high loads and slow to medium speeds. It's suitable for improving the running-in process and lubricating various components such as plain bearings, bushings, sleeves, power screw drives, threaded connections, fasteners, and high-voltage switches, even in demanding conditions. Application methods vary depending on the form; the bulk liquid requires thorough stirring before brushing or spraying, while the aerosol spray needs shaking before application of a thick, uniform coating. Proper surface preparation, including cleaning, degreasing, and optional phosphatization or sandblasting, is essential for optimal adhesion and service life.
The coating achieves touch-dry state within 5 minutes at 23 C, or 1 minute with 80 C hot air, and full curing is completed within 2 hours at 23 C. A recommended dry-film thickness of 5 to 20 m should be maintained for effective lubrication.
Key Features:
- Air-curing dry-film lubricant
- Available in bulk liquid and aerosol spray forms
- Suitable for high-load, slow to medium-speed metal-on-metal applications
- Improves running-in processes
- Wide service temperature range (-180 C to 450 C)
- Enhanced adhesion with surface preparation (phosphatization or sandblasting)
Typical Applications:
- Plain bearings
- Bushings
- Sleeves
- Power screw drives
- Threaded connections
- Fasteners
- High-voltage switches
Product Key Properties: An air cured anti-friction coating filled with molybdenum disulfide and graphite
Product Performance Benefits: Air drying, Avoidance of stick-slip, High aging resistance, High load carrying capability, High temperature performance, Low speed performance, Low temperature performance, Wide temperature range, No intentional polytetrafluoroethylene (PTFE) or per- and polyfluoroalkyl substances (PFAS)
