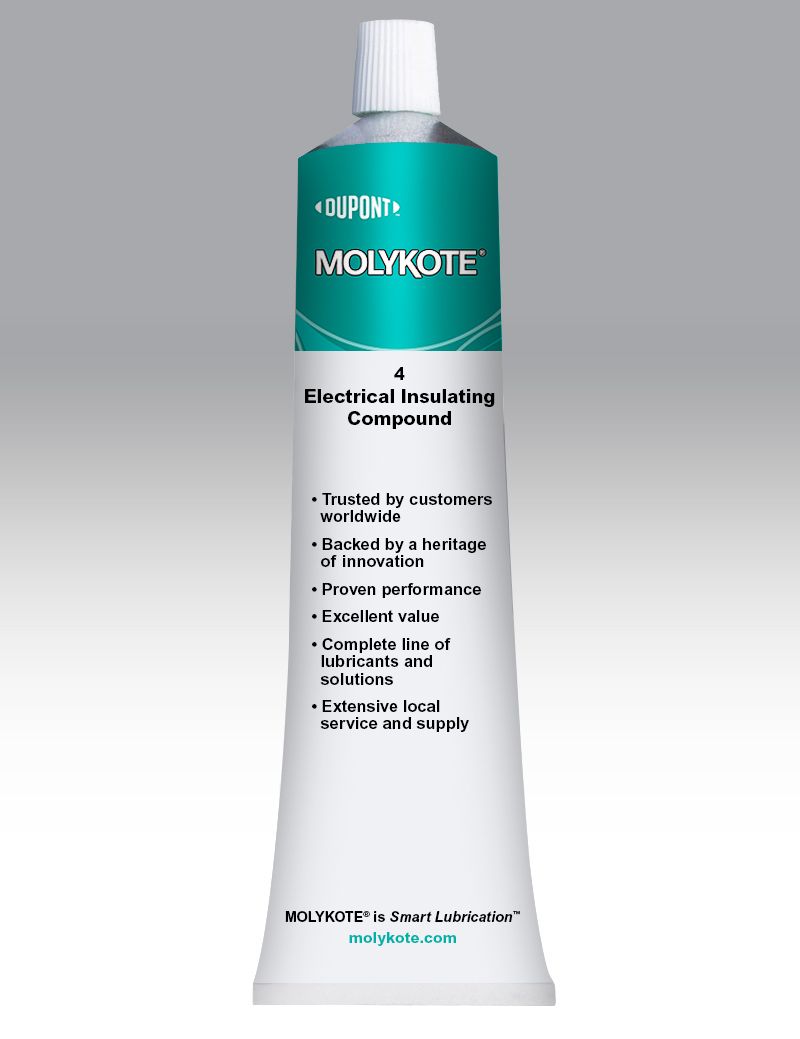

MOLYKOTE 4 Electrical Insulating Compound
MOLYKOTE 4 Electrical Insulating Compound is a silicone-based, semi-flowable electrical insulating compound offering high dielectric strength, excellent insulation, and broad temperature range performance. MOLYKOTE 4 Electrical Insulating Compound is a silicone-based, semi-flowable material designed for electrical insulation applications. Its semi-fluid consistency allows for easy application by hand, brush, or wipe, enabling it to penetrate complex geometries. The compound's rheology can be influenced by shear, increasing flow characteristics which is beneficial for filling intricate spaces. This compound provides high dielectric strength and excellent electrical insulation properties while adhering well to various dry substrates including metals, elastomers, polymers, and ceramics. It offers good moisture and water resistance, low volatility and evaporation rates, and excellent oxidation stability, maintaining performance across a wide temperature range from -54 C to 200 C. The product is certified to NSF 51 and 61, meets 21 CFR 175.30, and holds Kosher Pareve and Halal certifications. It is also tested to AMS 8660 Tables 1-4. The compound has a shelf life of 60 months when stored in its original, unopened container.
Product Key Properties: NLGI Grade 2-3; translucent white; used primarily as a lubricant and moisture-proof seal for assembly of metal-on-polymer and metal-on-rubber combinations and sealed electrical connectors, disconnect junctions and terminals
Product Performance Benefits: High dielectric strength and excellent electrical insulating properties Good adhesion to most dry materials, including metals, elastomers, polymers and ceramics Semi-flowable rheology may allow compound to enter complex geometries Low volatility and evaporation Good moisture resistance and water repellency Good thermal oxidation stability Material tested to AMS8660 Tables 1-4 (see Typical Properties on tech data sheet) Certification to NSF 51 and 61, meets 21 CFR 175.30, Kosher Pareve, Halal
Dielectric Good oxidation resistance Good plastic & rubber compatibility Good water resistance High tack & adhesion High temperature performance Low temperature performance Wide temperature range No intentional polytetrafluoroethylene (PTFE) or per- and polyfluoroalkyl substances (PFAS)
Key Features:
- Excellent dielectric strength and electrical insulation
- Semi-flowable consistency for easy application and penetration into complex geometries
- Good adhesion to metals, elastomers, polymers, and ceramics
- Good moisture and water resistance
- Low volatility and evaporation
- Excellent oxidation stability
- Wide operating temperature range (-54 C to 200 C)
- NSF 51 and 61 certified, meets 21 CFR 175.30, Kosher Pareve, and Halal
- Tested to AMS 8660 Tables 1-4
Typical Applications:
- Electrical insulation in various applications
