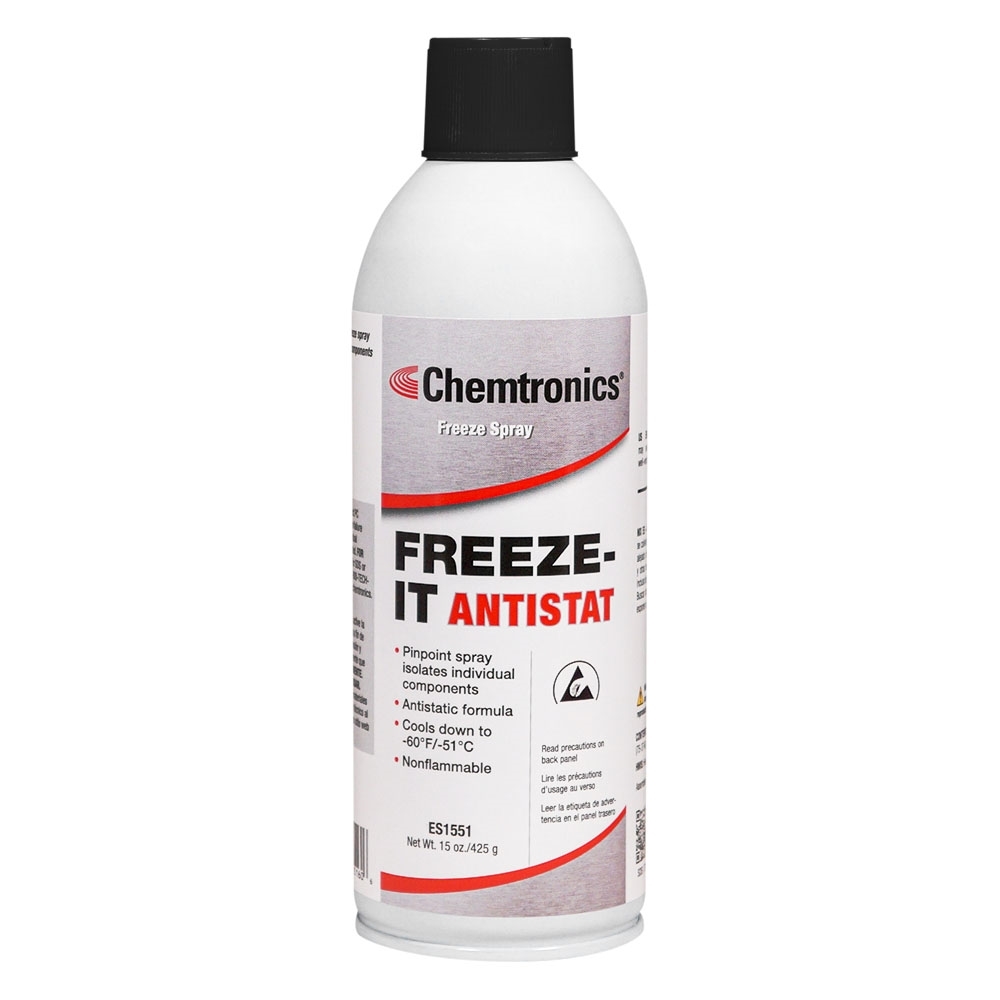

Chemtronics Freeze-It Antistatic Freeze Spray
Freeze-It Antistat is engineered for locating thermal intermittent electrical components or cooling printed circuit boards with minimal static generation. This circuit refrigerant system is nonflammable, residue-free and provides fast cooling action. For failure isolation, energize the suspect PC board. Spray on board to determine the area where the failure is occurring. Attach extension tube and spray on individual components until the failed component has been isolated.
No special surface preparation is required prior to using Freeze-It Antistat. Direct spray onto the area to instantly cool components, circuit boards or adhesives. For optimum performance and pin point control, use Freeze-It Antistat with the attached extension tube. It is generally compatible with most materials used in printed circuit board fabrication, including sensitive plastics and compounds. With any circuit refrigerant, compatibility must be determined on a non-critical area prior to use.
Key Features
- Pinpoint spray isolates individual components without freezing surrounding areas
- Antistatic formulation ideal for use on static sensitive components
- Rapidly cools components to -60°F/-51°C
- Non-abrasive, safe for use on plastics and other sensitive surfaces
- Nonflammable
- CFC/HCFC free
- Evaporates quickly, leaves no residue
- Minimal frost formation
Typical Applications
- Cool Equipment for Testing
- Dissipate Heat While Soldering or Desoldering
- Isolate Thermal Intermittent Components
- Test Circuit Traces for Continuity, Stress Fractures
- Track Static Sensitive Components
Product Key Properties: Engineered for locating thermal intermittent electrical components or cooling printed circuit boards with minimal static generation.
Product Performance Benefits:
- Minimal static generation
- Nonflammable
- High heat transfer
- Low static generation
- Noncorrosive
- Lowers temperature to -60°F (-51°C)
- Ultra pure, filtered to <0.2 microns
- Leaves no residue
- Nonabrasive on most surfaces
- Dries fast
- Contains no CFCs or HCFCs
