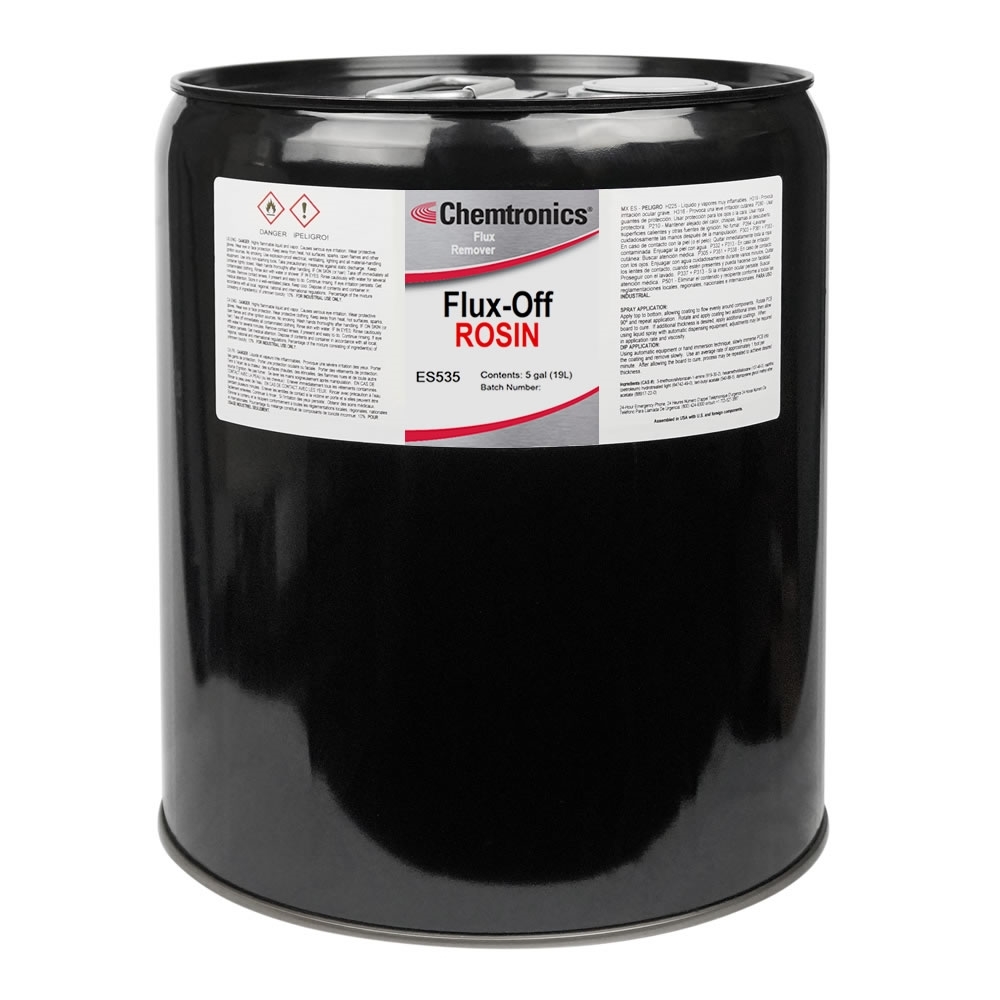

Chemtronics Flux-Off Rosin
The Flux-Off Rosin formulation is a fast drying aerosol that quickly and completely removes R, RMA, RA, and synthetic flux residue. With its low surface tension and superior wetting properties, Flux-Off Rosin removes harmful residues in tight tolerance areas. Available with The BrushClean System-Gentle scrubbing action of a brush combined with high performance flux remover.
For industrial use only. Read SDS carefully prior to use. Spray 4-6 from surface to clean. Wash parts from top to bottom, allowing the liquid to flush away dirt and dissolved grease. For precise application use attached extension tube. Product is Flammable - Do not use near sources of ignition and energized equipment.
Key Features
- Safe on plastics
- Removes all rosin-based fluxes
- Removes ionic and non-ionic activators
- Dries fast
- Leaves no residue
- Flammable
- All-Way Spray valve - even sprays upside down
- Available with BrushClean System
Typical Applications
- Cleans type R, RMA, RA and Rosin-based no-clean flux
- Chip Carriers
- Heat Sinks
- Plugs
- Printed Circuit Boards
- Relays
- Sockets
- Surface Mount Device Pads
- Switches
Product Key Properties: Plastic safe flux remover for cleaning all rosin and rosin-based no-clean flux. Typical boiling point: 141°F / 61°C (Initial). Specific Gravity: 0.70 (water = 1@77°F). Surface Tension: 17.3 (dynes/cm @ 21.6°F). Evaporation Rate: >1(butyl acetate =1). Shelf life Aerosols 5 years, Liquids 2 years after opening.
Product Performance Benefits:
- Removes R, RMA, RA, and synthetic flux residues
- Penetrates hard to reach areas
- Evaporates quickly
- Leaves no residue
- Removes oil, grease, ionic and non-ionic residues
- Has low odor
- Non-corrosive formulation
- Contains no CFCs or HCFCs
