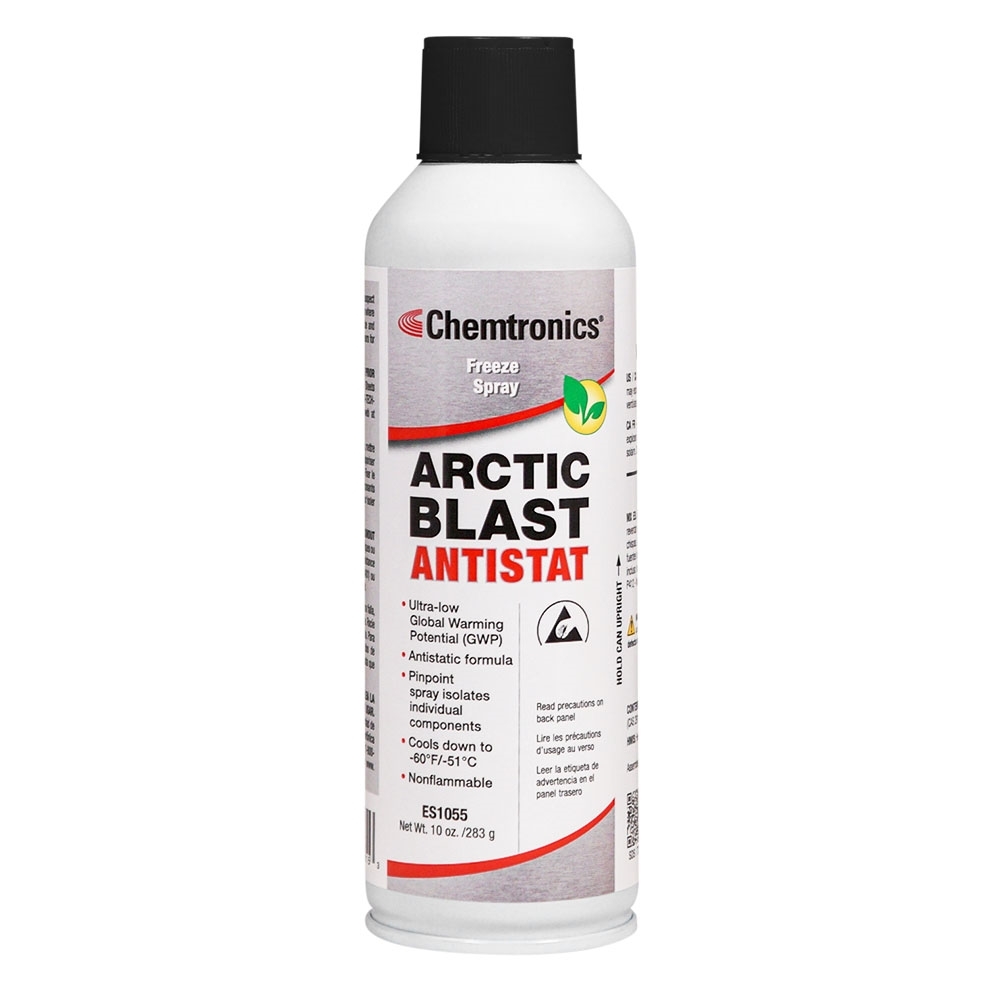

Chemtronics Arctic Blast Antistat Freeze Spray
Arctic Blast Antistat Freeze Spray is engineered for locating thermal intermittent electrical components or cooling printed circuit boards with minimal static generation. It is formulated with HFO-1234ze, a new material that has a significantly lower global warming potential (GWP) than previously used materials. Arctic Blast Antistat is nonflammable*, residue-free and provides fast cooling action.
For failure isolation, energize the suspect PC board. Spray on the board to determine the area where the failure is occurring. Attach extension tube and spray on individual components until the failed component has been isolated.
Key Features:
- Pinpoint spray that isolates individual components without freezing surrounding areas
- Antistatic formulation ideal for use on static sensitive components
- Non-frosting
- Rapidly cools components to -49 F/-45 C
- Filtered to 0.2 microns - Ultra high purity
- Low GWP of <1 - Low global warming impact when compared to typical freeze sprays
- Plastic Safe - Will not harm plastics when liquid is sprayed onto circuits
- Nonflammable* - Safe to be used around electronics
- Low Toxicity - Safe to be used in a well ventilated area
- Filtered to 0.2 microns - Ultra high purity, cleanest spray
- Short Atmospheric lifetime - Material will break down and be eliminated from the atmosphere quickly
- *under ambient conditions
Typical Applications:
- Cool Equipment for Testing
- Dissipate Heat While Soldering or Desoldering
- Isolate Thermal Intermittent Components
- Test Circuit Traces for Continuity and Stress Fractures
- Track Static Sensitive Components
Product Key Properties: Cools To: -49 F / -45 C. Clear, colorless liquified gas with a slight ethereal odor. Shelf life 10 years. RoHS Compliant
Product Performance Benefits: Ultra-low global warming impact below 1Nonflammable*High heat transferPinpoint spray for individual component isolationNoncorrosiveUltra-pure, filtered to <0.2 micronsLeaves no residueNonabrasive on most surfacesCFC, HCFC and HFC free
