Chemtronics FOCCUS Transportable I & M Fiber Optic Cleaning Kit
The Chemtronics FOCCUS Transportable I&M Fiber Optic Cleaning Kit is designed for transportable fiber optic installation and maintenance cleaning for 2.5mm connections. The kit includes essential cleaning supplies necessary for making a successful 2.5mm fiber optic connection. The Transportable I & M Fiber Optic Cleaning Kit contains two Electro-Wash MX Pen Fiber Optic Cleaner Pens and one QbE to perform the Combination Cleaning process. Because of their compact nature, the Electro-Wash Pens are safe to transport. Use the swabs and wipes with the Electro-Wash MX pen to clean the fusion splicer, especially the mirror and V-groove. Swabs are also included for cleaning ferrules, alignment sleeves and backplane connections. Electro-Wash MX Premoistened Wipes are included for tool and cable wiping. The swabs are packaged in rugged tubes for field operations. The kit bags are made from tough nylon for long life. They are equipped with a carabineer to clip on a tool belt for transport or to clip a cable for convenient access.
Key Features:
- Cleaning supplies necessary for making a successful 2.5mm fiber optic connection
- MX Precision Cleaner Pens are compact and safe to transport
- Use Electro-Wash MX to clean the fusion splicer, mirror and V-groove
Typical Applications:
Product Key Properties:
- QbE Wipes: 100% noncontaminating material with high absorbency and contamination entrapment capacity, as well as high wet strength. Excellent solvent resistance, excellent particle entrapment, high absorbency capacity and rate, very low solvent extractables, and high wet strength. Compatible with most common solvents such as alcohols, hydrocarbons and chlorinated solvents. Generally compatible with dilute or weak acids.
- Fiber-Wash MX Precision Cleaner Pen: Colorless with a hydrocarbon odor. Negligible solubility in water. Specific Gravity: 0.72 @ 75°F (23.9°C). Evaporation Rate: <1 (butyl acetate =1). Boiling Point: 239°F / 115°C. Flash Point (TCC): 45°F / 7°C. Kauri-Butanol Number 29 (KB). VOC Content: CARB 100.0%, SCAQMD 720 g/L, Federal 100.0%. Shelf life 5 years. RoHS Compliant.
Product Performance Benefits:
- Cleaning supplies necessary for making a successful 2.5mm fiber optic connection
- MX Precision Cleaner Pens are compact and safe to transport
- Use Electro-Wash MX to clean the fusion splicer, mirror and V-groove

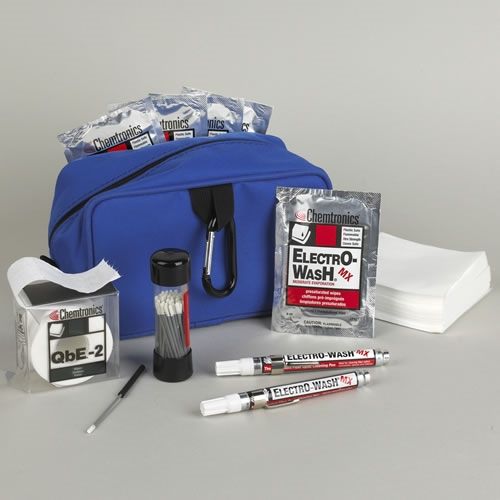

I & M Fiber Optic Cleaning Kit Includes:
- 2 Fiber-Wash MX Precision Cleaner Pens (FW2150)
- 1 QbE Cleaning Platform, 200 sheets (QbE)
- 50 2.5mm Foam Fiber Optic Swabs (48042F)
- 100 Lint-Free Precision Wipes, 4"x4" (6704F)
- 5 Electro-Wash MX Premoistened Wipes (CP421)
- 1 Rugged Bag with carabineer attachment
- 1 Instructions
