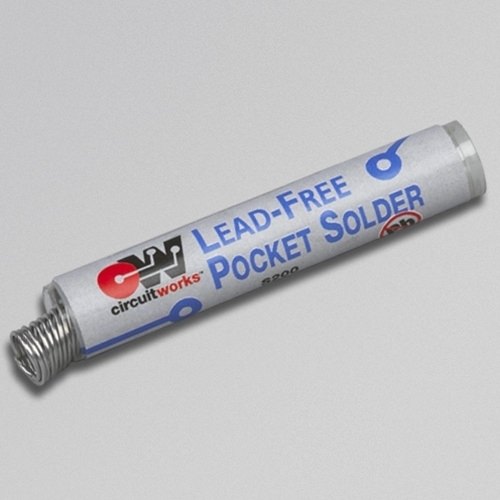

CircuitWorks Lead-Free Pocket Solder
CircuitWorks Lead-Free Pocket Solder is the high-purity pocket-sized solder in a convenient dispenser for rework and repair. This rosin core solder wire is manufactured from the lead-free solder alloy SAC 305. Lead-Free Pocket Solder is easy to use and produces reliable solder joints every time. Its activated pure rosin flux core eliminates troublesome solder voids. Instant wetting action provides thorough deoxidation of metallic surfaces providing the best possible surfaces for soldering.
To use, thread the solder wire through the hole in the dispenser. Solder can be used with a hot soldering iron (600°F -750°F / 316°C – 399°C) for normal soldering applications. Flux residues remaining after soldering can be easily cleaned with Chemtronics Flux-Off Lead-Free Flux Remover (ES897B or ES1697) or CircuitWorks Lead-Free Flux Remover Pen (CW9400). Wipe residues from the board with a ControlWipe dry wipe.
Key Features:
- Precision manufactured Lead-Free solder alloy
- 96.5% Tin (Sn), 3.0% Silver (Ag), 0.5% Copper (CU)
- Type ROL0 flux per IPC J-STD-004
- Ensures even, reliable solder connections
- Cleans and wets heavily tarnished copper surfaces
- RoHS Compliant
Typical Applications:
- Portable SAC 305 alloy, especially for lead-free rework and repair
- Circuit Board Manufacturing, Rework and Repair
- Data Communications
- Instrumentation
- Controls
- General Maintenance and Repair
Product Key Properties: Solder Wire Diameter: 0.040 in. (1 mm). Flux Core: 3%. Solder Composition: Tin (Sn) 96.5%, Silver (Ag) 3.0 %, Copper (Cu) 0.5%. Melting Point: 419-424°F (215-219°C). Flux Type: Type ROM1.
Product Performance Benefits: Simple to use, easy to carrySafe and environmentally friendlyPrecision manufactured SAC 305 solderType RMA (rosin moderately activated) flux coreEnsures reliable solder connectionsCleans and wets heavily tarnished copper surfacesRoHS compliant
