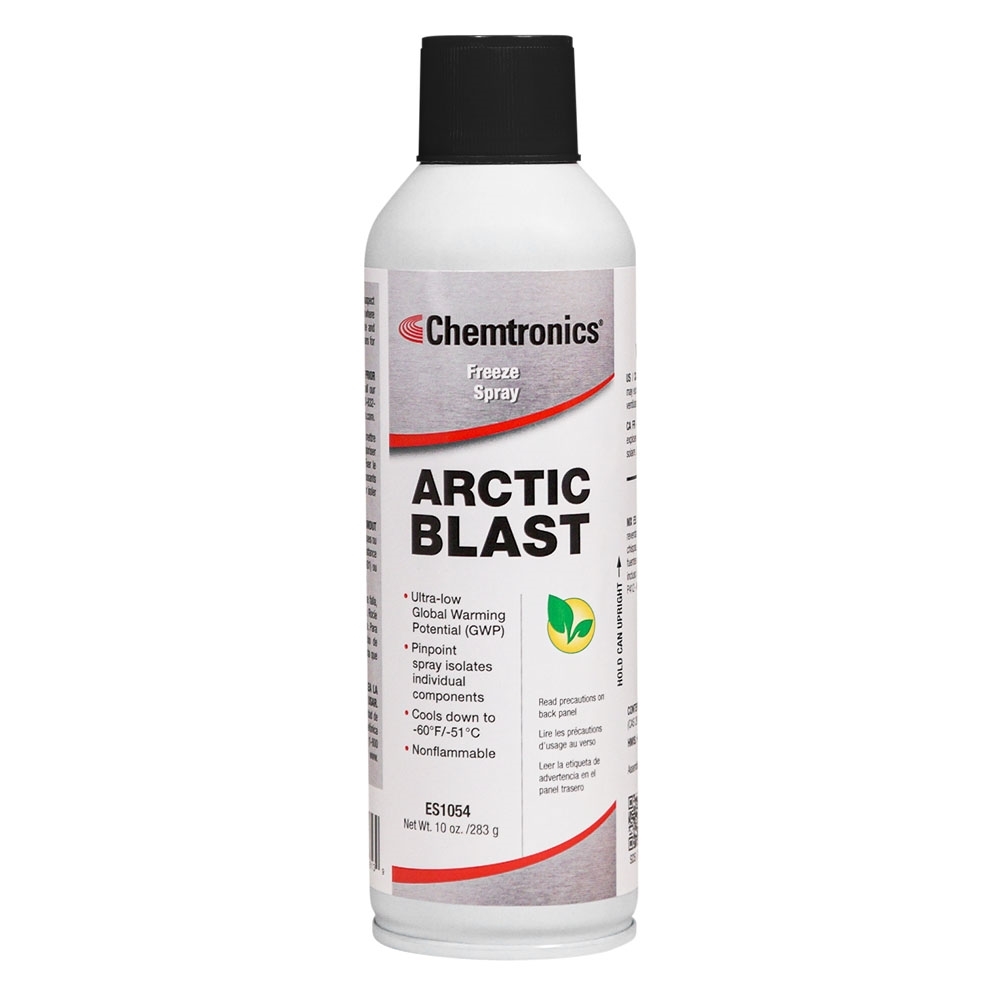

Chemtronics Arctic Blast Freeze Spray
Arctic Blast Freeze Spray is the newest class of circuit coolants, specifically formulated to quickly cool surfaces while minimizing the use of global warming compounds. It is formulated with HFO-1234ze, a new material that has a significantly lower global warming potential (GWP) than previously used materials. Arctic Blast Freeze Spray is nonflammable*, residue-free and provides fast cooling action.
For failure isolation, energize the suspect PC board. Spray on board to determine the area where the failure is occurring. Attach extension tube and spray on individual components until the failed component has been isolated. No special surface preparation is required prior to using Arctic Blast Freeze Spray. Direct spray onto the area to instantly cool components, circuit boards or adhesives. For optimum performance and pin point control, use Arctic Blast Freeze Spray with the attached extension tube.
Key Features:
- Pinpoint spray that isolates individual components without freezing surrounding areas
- Rapidly cools components to -49 F/-45 C
- Filtered to 0.2 microns - Ultra high purity
- Low GWP of<1 - Low global warming impact when compared to typical freeze sprays
- Plastic Safe - Will not harm plastics when liquid is sprayed onto circuits
- Nonflammable* - Safe to be used around electronics
- Low Toxicity - Safe to be used in a well ventilated area
- Filtered to 0.2 microns - Ultra high purity, cleanest spray
- Short Atmospheric lifetime - Material will break down and be eliminated from the atmosphere quickly
Typical Applications:
- Cool Equipment for Testing
- Dissipate Heat While Soldering or Desoldering
- Isolate Thermal Intermittent Components
- Test Circuit Traces for Continuity and Stress Fractures
- Track Intermittent Failures and Shorts
Product Key Properties: Ultra-low GWP freeze spray with pin-point accuracy.Cools surfaces to below -49F / -45 C. Noncorrosive. Ultra-pure, filtered to <0.2 microns. Leaves no residue. Nonabrasive on most surfaces. CFC, HCFC and HFC free. VOC free. * under ambient conditions
Product Performance Benefits: Low global warming impact. High heat transfer. Noncorrosive. Ultra-pure. Leaves no residue. Nonabrasive on most surfaces. CFC, HCFC and HFC free. VOC free
