Chemtronics CircuitWorks Conductive Epoxy

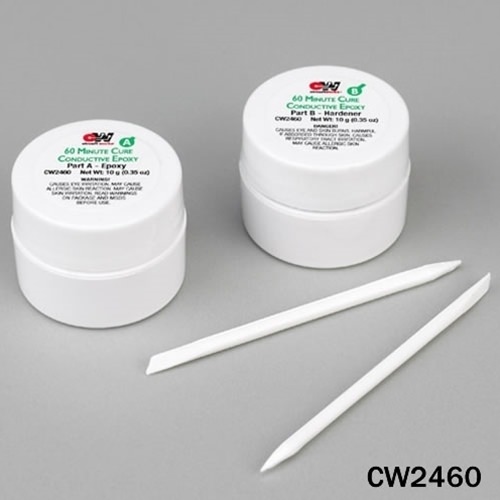

CircuitWorks Conductive Epoxy is a two part, silver epoxy used in prototype, repair and general conductive bonding applications. It features strong mechanical bonds, excellent electrical conductivity, and quick room temperature curing. CircuitWorks Conductive Epoxy bonds aggressively to a wide variety of materials. CircuitWorks 60 Minute Conductive Epoxy has an extended pot life for high strength conductive bonds. Components can be easily placed and replaced before full cure occurs. For accelerated cure, simply heat material to 100°C (212°F). This conductive epoxy bonds aggressively to a wide variety of materials.
To use, mix equal parts (1:1) by weight or volume of Part A and Part B. Mix thoroughly for 2 minutes and apply within 5 minutes. For best results, clean the board with one of Chemtronics Electro-Wash or Pow-R-Wash cleaners in order to remove any surface contamination which may prevent adequate material contact. Curing times and electrical conductivity depend primarily on temperature. For fastest curing times, maximum conductivity and adhesion, cure the bond between 65°C-121°C (150°F-250°F) for 5-10 minutes. CircuitWorks Conductive Epoxy can be room temperature cured at or above 25°C (75°F), for 4 hours. Maximum conductivity and bond strength are achieved in 24 hours. Do not attempt to thin.
Key Features:
- Conductive silver epoxy provides excellent electrical conductivity
- High strength conductive bond
- Mixed material provides five minute work time, fast cure
- Repairs defective traces and creates jumpers on boards
- Quick solderless electronic connections
Typical Applications:
- Repairs traces and temperature sensitive circuits
- Makes high-strength solderless conductive connections
- Conductive bonds between heat sensitive components
- Solderless surface mount connections
- Circuit board trace repair
- Static discharge and grounding
- Solder repair
- Conductive structural adhesions
Product Key Properties: Two-component product, Simple mixing ratios, Excellent electrical conductivity, Fast curing, High strength bond, Bonds dissimilar surfaces, Operating temperature range from -91°C (-131°F) to 100°C (212°F)
Product Performance Benefits: Excellent electrical conductivity, Strong mechanical bonds, Quick room temperature curing, Bonds aggressively to a wide variety of materials, High strength conductive bond, Repairs defective traces and creates jumpers on boards, Quick solderless electronic connections.
