Chemtronics CircuitWorks Conductive Paint
Chemtronics CircuitWorks Conductive Paint makes instant highly conductive (0.02-0.05 ohms/sq/mil) silver traces on circuit boards and is used in the prototype, rework, and repair of circuit boards by linking components, repairing defective traces, making smooth jumpers and patching EMI shielding. The silver traces dry in minutes and has excellent adhesion to most electronic materials. Engineers, repair technicians, and manufacturers will find that the CircuitWorks Conductive Paint speeds project completion and cuts rework time.

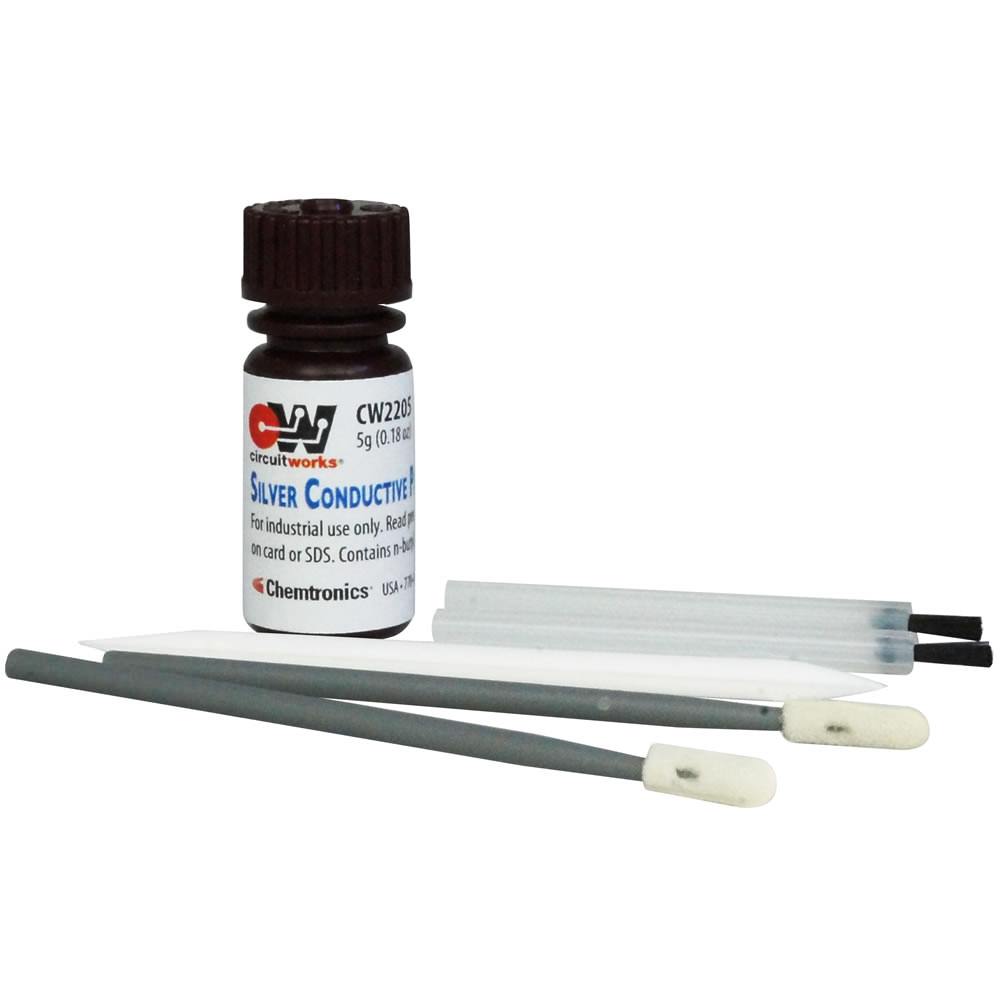

CircuitWorks Conductive Paint comes with a pick, 2 small brushes, and 2 lint-free foam swabs for easy application. The brushes and swabs are ideal for larger areas, like for shielding repair, and the pick allows for precision trace repair. Cures tack-free in 3 to 5 minutes at room temperature. It achieves electrical conductivity within 30 minutes. Heat cure for 5 minutes at 250-300F (120-150C) for maximum conductivity, durability, and chemical resistance.
Key Features:
- Single component system
- High electrical conductivity
- Fast drying
- Highly adherent to circuit boards
- Operating temperature to 400F (205C)
Typical Applications:
- Circuit trace repair
- Solderless linking of components
- EMI shielding
- Solderable terminations
- Quick prototype modifications
Product Key Properties: Silver Filled Polymer with 55% +/-2% Silver Concentration. Silver Particle Size: <20 microns. Conductivity: 0.02-0.05 ohms/sq/mil, Max. Temperature: 400F (205C), Tack-Free Time: 3 to 5 minutes @25C, Full Cure Time: 20 to 30 minutes @25C, Shelflife 15 months
Product Performance Benefits: High electrical conductivityFast dryingHighly adherent to circuit boardsOperating temperature to 400F (205C)
