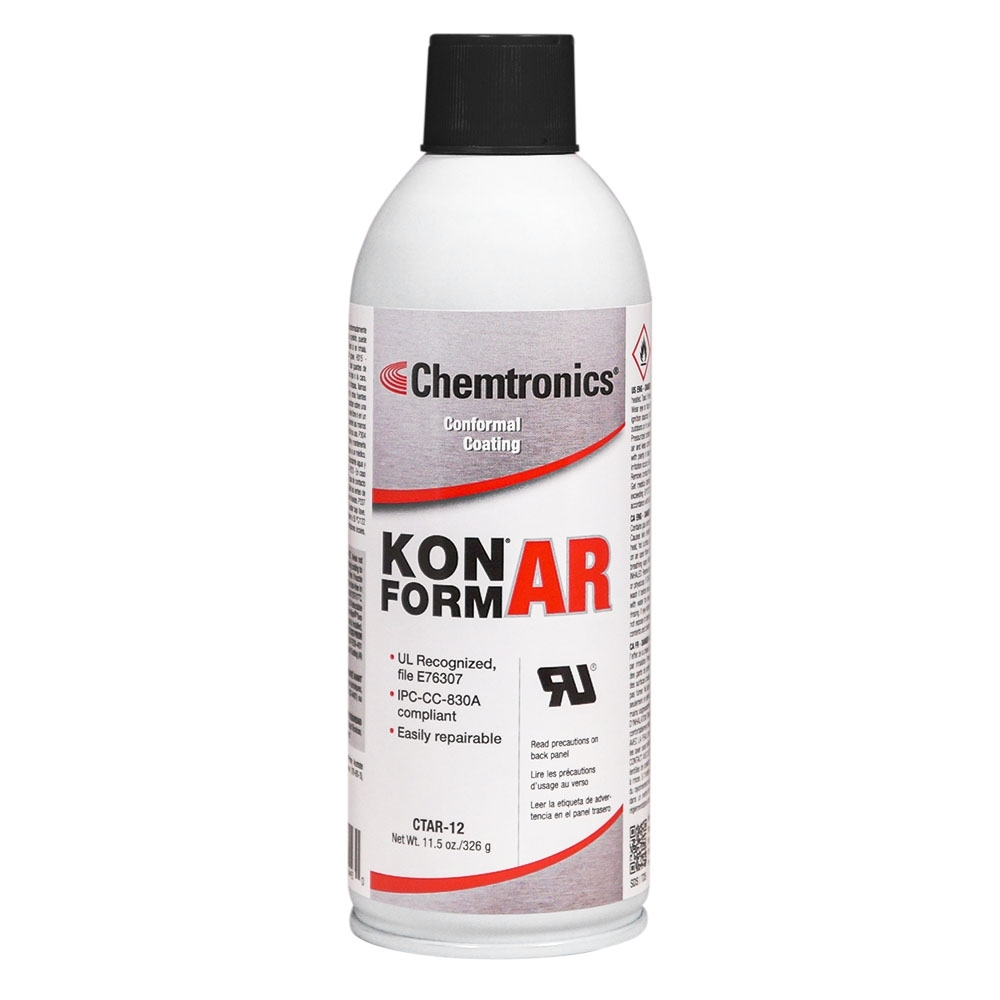

Chemtronics Konform AR Acrylic Conformal Coating
Konform AR Acrylic Conformal Coating is UL-certified acrylic conformal coating for insulation against high voltage arcing and shorts. This extremely effective acrylic conformal coating provides a hard, durable protective barrier against humidity, salt, corrosive vapors and fungus for printed circuit board and electronic assemblies. Designed to provide effective insulation against electrical shorts and harsh environments, it extends component life by protecting against adverse conditions.
To apply, ensure the surface is clean and moisture-free, masking areas not requiring coating. For aerosol application (CTAR-12), shake well and spray from top to bottom, rotating the board for even coverage, repeating the process two or more times. Clear any nozzle clogs with solvent or a new nozzle. For liquid application (CTAR-1), apply by spraying, brushing, dipping, or flow coating, allowing the coating to flow around components. A 1.0 mil coating will be tack-free in 30 minutes, with full cure requiring 24 hours at 77°F (25°C) or 8 hours at 170°F (77°C) with an open vessel of water in the drying chamber to facilitate curing. The coating is UV detectable for QC inspection and can be removed by soaking in Electro-Wash Two Step Cleaner Degreaser or using CircuitWorks Conformal Coating Remover Pen for spot removal.
Key Features:
- Acrylic coating working temperature from -75°F/-59°C to 279°F/137°C
- High dielectric strength of 8300 volts/mil
- Passes the laboratory tests of MIL-I-46058C (However, it is not qualified on QPL-46058.)
- Compliant to IPC-CC-830A
- RoHS Compliant
- Provides excellent acid resistance
- Will not discolor over time under normal use
- Easily repairable
- Contains a UV indicator for thorough Quality Control inspection
- UL Recognized, File E76307
Typical Applications:
- Extends component life by protecting against adverse environments
- Resists moisture, salt, fungus, corrosive vapors, and severe environments
- Designed to provide effective insulation against electrical shorts and harsh environments
- Aerospace
- Data Communications
- Instrumentation
- Automotive Manufacturing
- Marine Manufacturing
- Process Control
Product Key Properties: Clear transparent coating, Usable Temp. Range: -75°F to 270°F of Cured Coatings (-59°C to 132°C), Tack Free Time: 30 min, Curing Conditions: 24 Hours @ 77°F (25°C) (@30-60% R.H.) or 8 Hours @ 170°F (77°C), Specific Gravity: 0.93 (Liquid Only), Viscosity (cps @ 77°F): 70 ± 5 cps, Flash Point (TCC): 30°F / -1°C, Volume Resistivity: 1 x 10^14 (ohm/cm), Dielectric Breakdown: 6300 (volts/mil), Comparative Tracking Index (CTI): 250 (PLC of 2), Coefficient of Thermal Expansion: 5 x 10^-5 (in/in/C), RoHS Compliant: Yes
Product Performance Benefits: Clear transparent coating Excellent dielectric strength Helps prevent arcing and shorts Increases life of electronic assemblies Will not discolor over time under normal use Contains a UV indicator for thorough Quality Control inspection UL Recognized, File QMJU2.E76307 Compliant with IPC-CC-830A
