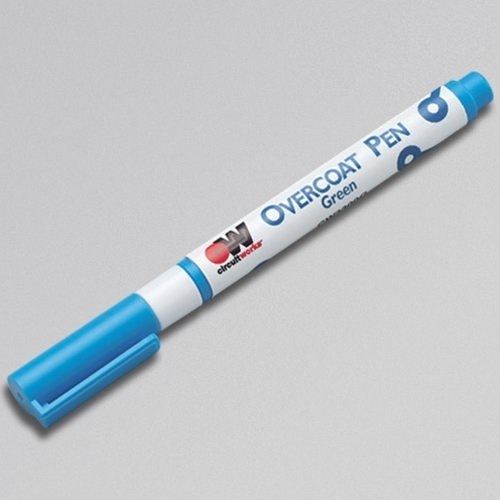

Chemtronics CircuitWorks Overcoat Pens
CircuitWorks Overcoat Pen is ideal for protecting and insulating circuit board traces, components, and other delicate electronics. This highly effective acrylic conformal coating provides excellent protection against shorts, moisture, abrasion, fungus, and other environmental hazards. Allows for easy repair of solder mask in prototype, manufacture and repair of circuit boards.
Key Features:
- Simple to use, single component system
- Hard, durable coating
- High dielectric strength helps prevent electrical discharge
- Dries quickly at room temperature
- Protects against moisture and abrasion damage
- Meets requirements of MIL-I-46058C and IPC-CC-830A
Typical Applications:
- Insulates and protects conductive pen traces
- Repairs permanent solder mask
- Prevents shorting and arcing
Product Key Properties:
Material: Polymeric Conformal Coat Color: Clear, Green, Blue, Black, White VOC Content: 630 g/L CURED COMPOUND: Temperature Range: -67 to 255°F (-55 to 125°C) Tack-Free Time: < 5 Minutes Resistivity: >10^12 ohm-cm @ 50 VDC Dielectric Breakdown: >500 volts/mil DC Dielectric Constant: 3 - 4 Dissipation Factor: < .001 @ 1 KHz Thermal Shock Resistance: Pass, 10 Cycles @ -67 to 311°F (-55 to 155°C) Flexibility: Excellent Moisture Resistance Excellent Adhesion: Good to excellent Typical Thickness: 2 - 3 mil Shelf life: 2 years RoHS Compliant Yes
Product Performance Benefits:
- Simple to use, single component system
- Hard, durable coating
- High dielectric strength helps prevent electrical discharge
- Dries quickly at room temperature
- Protects against moisture and abrasion damage
- Meets requirements of MIL-I-46058C and IPC-CC-830A
