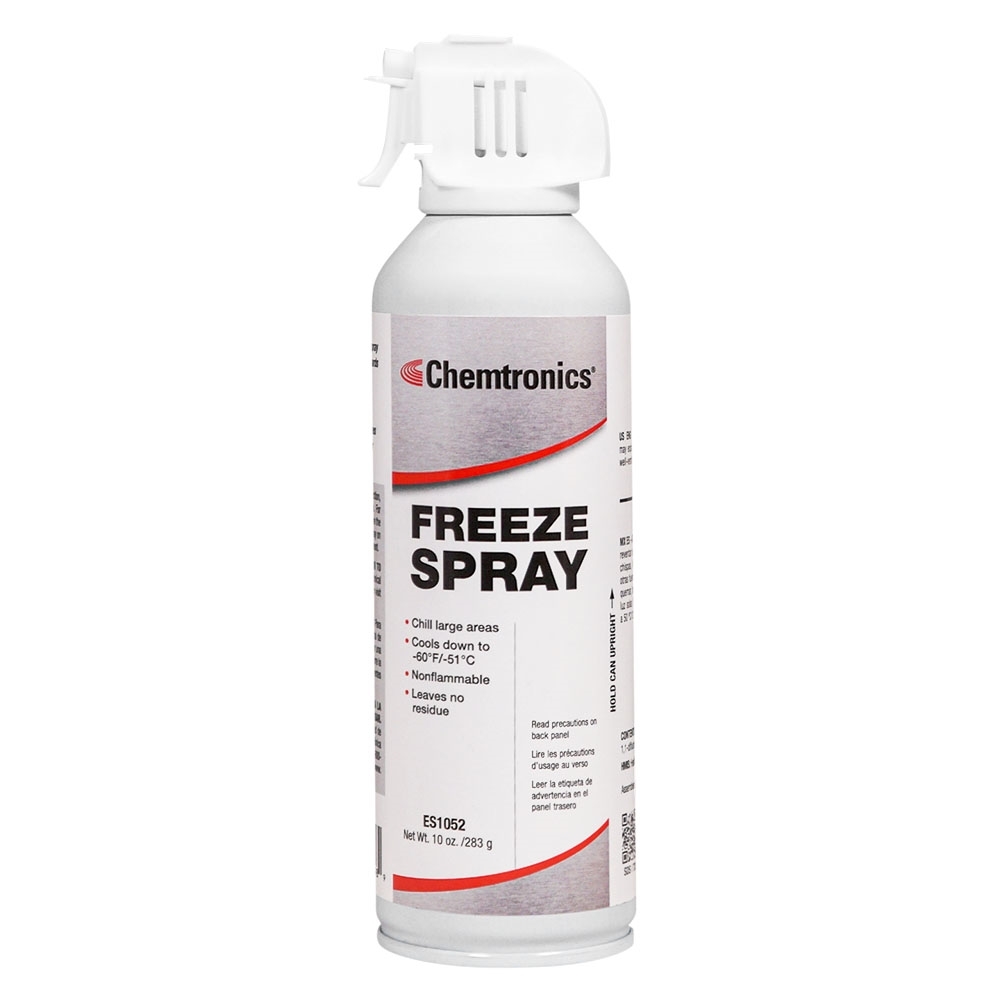

Chemtronics Freeze Spray
Chemtronics Freeze Spray is engineered for locating thermal intermittent electrical components and cooling printed circuit boards. This circuit refrigerant system is nonflammable, residue-free and provides fast cooling action. New improved formula with lower global warming.
For failure isolation, energize the suspect PC board. Spray on board to determine the area where the failure is occurring. Attach extension tube and spray on individual components until the failed component has been isolated. No special surface preparation is required prior to using Freeze Spray. Direct spray onto the area to instantly cool components, circuit boards or adhesives.
Key Features:
- Quickly and efficiently cool large areas, ideal for fast thermal cycling
- Rapidly cools components to -60°F/-51°C
- Non-abrasive, safe for use on plastics and other sensitive surfaces
- Ultra pure, filtered to <0.2 microns
- Nonflammable
- CFC/HCFC free
- Evaporates quickly
- Leaves no residue
Typical Applications:
- Cool Equipment for Testing
- Dissipate Heat While Soldering or Desoldering
- Isolate Thermal Intermittent Components
- Test Circuit Traces for Continuity and Stress Fractures
- Track Intermittent Failures and Shorts
Product Key Properties:
Boiling Point: -15.7°F / -26.5°CVapor Density (air=1): 3.18 @77°FSolubility in Water: 10% by weight @77°F/1 atmSpecific Gravity: 1.21 (water = 1@77°F)Surface Tension: 7.8 (dynes/cm @ 21.6°F)Flash Point (TCC): NoneEvaporation Rate: >1 (butyl acetate =1)Appearance: Clear, colorless liquified gasOdor: Slight etherealShelf life: 10 yearsRoHS Compliant: Yes
Product Performance Benefits:
- Quickly and efficiently cools large areas
- Ideal for fast thermal cycling
- Rapidly cools components to -60°F/-51°C
- Non-abrasive, safe for use on plastics and other sensitive surfaces
- Ultra pure, filtered to <0.2 microns
- Nonflammable
- CFC/HCFC free
- Evaporates quickly
- Leaves no residue
