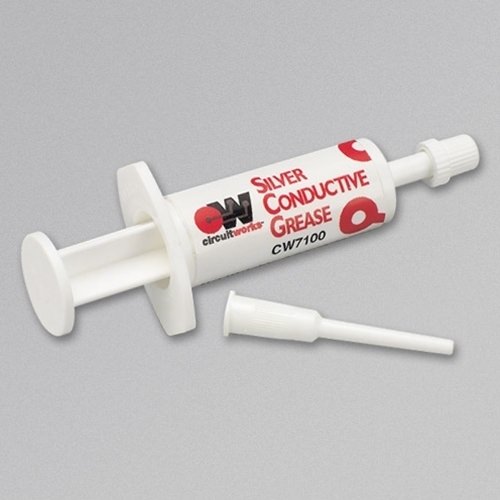

Chemtronics CircuitWorks Silver Conductive Grease
CircuitWorks Silver Conductive Grease provides maximum electrical and thermal conductivity, proven lubrication properties, and protection from moisture, oxidation, and other environmental hazards. This electrical conductive grease utilizes an advanced silicone lubricant that is compatible with metal, rubber, and plastic. Use it to fill connector gaps, provide grounding for circuits, and control static discharge. Effective as a thermal conductive grease and electricconductive grease.
For industrial use only. Read SDS carefully prior to use. Surface Preparation: For best results, clean parts to be lubricated with Chemtronics Electro-Wash PX cleaner in order to remove any surface contamination which may prevent adequate material contact. Thinning: Do not attempt to thin. Application: Syringe: Remove cap and gently press on plunger. Apply CircuitWorks Silver Conductive Grease directly to surface or use application tip. Clean-up: Electro-Wash PX cleaner can be used to remove trace residues. Excess material may also be removed using a wipe such as the Chemtronics ControlWipes. Silver particles may stain porous materials. WARNING: To avoid shock or possible fire, stop power to any system before applying conductive grease. Insure positive and negative contacts remain isolated. Improper use can result in shorting, arcing, or shock.
Key Features:
- Fills connector gaps to maximize electrical and thermal conductivity
- Maximum electrical conductivity and thermal conductivity
- Protects against moisture and corrosion
- Thermally stable over a wide temperature range
- Conductive lubricant containing pure silver
- Controls static discharge
- Grounds circuits
Typical Applications:
- Lubrication of substation switches or circuit breakers
- Heat dissipation from transformers
- Low or medium speed sliding contacts
- Static grounding on Seals or o-rings
- Extending the life of rotating switches
Product Key Properties: 100% Silver filled grease, Silver gray in color, Smooth paste consistency, Volume Resistivity: <0.01 ohm-cm, Thermal Conductivity: 38.8 BTU-in/hr-ft2-F (5.6 W/mK), Operating Temperature Range: -70 to 485F (-57 to 252C)
Product Performance Benefits:
- Maximum electrical and thermal conductivity
- Protects against moisture and corrosion
- Thermally stable over a wide temperature range
- Conductive lubricant
- Controls static discharge
- Grounds circuits
