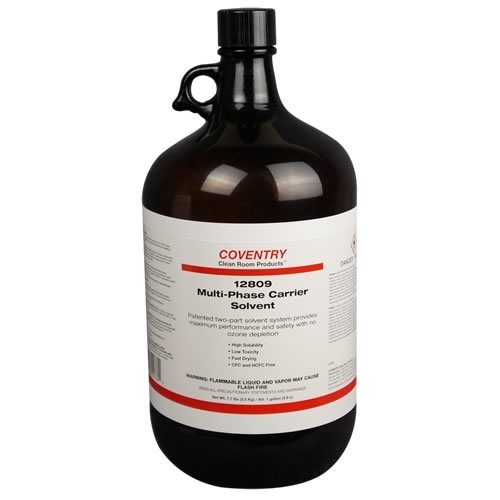

Chemtronics Coventry Multi-Phase Carrier Solvent
Coventry 12809 Multi-Phase Carrier Solvent is a non-ozone depleting carrier solvent and swelling agent. It is a saturated mixture of n-octane and perfluorocarbon (PFC). The n-octane provides solvency, while the PFC provides an inert perfluorocarbon vapor blanket above the liquid mixture. These vapors impede the flammability of the n-octane. As the perfluorocarbon evaporates during use, supplemental PFC moves into the saturated solution. Although 12809 shows no closed cup flash point up to its boiling point, the primary component, n-octane is flammable. Therefore, Coventry 12809 should be handled and shipped as a flammable solvent. Coventry 12809 is used to replace CFCs, HCFCs, and flammable solvents as a carrier solvent for lubricants and coatings. It is especially effective as a silicone solvent and as a swelling agent for silicone fabricated parts.
For coating or deposition operations, the solution should be gently agitated during coating to insure homogeneity in the solution in order to provide a uniform coating. The parts to be coated are then dipped into the PFC + n-octane + coating solution, removed, and then dried or cured. For silicone swelling applications, submerge the portion of the tube or part to be swelled into the PFC+n-octane solution phase solvent until the desired swelling is obtained. Remove and assemble. The tube or fitting will return to its original dimensions as the n-octane evaporates and the connection will be complete.
Key Features:
- Non-ozone depleting chemicals
- Low toxicity
- Fast drying
- Very low non-volatile residue
- Maximum performance and safety
- High solubility of silicone and other lubricants
Typical Applications:
- Swelling agent for silicone tubing, urethane tubing, and other elastomers
- Carrier fluid for depositing silicone lubricants
Product Key Properties:
Coventry 12809 Multi-Phase Carrier Solvent is a saturated mixture of n-octane and perfluorocarbon (PFC). Boiling Point: 258F/125C (top liquid layer). Vapor Pressure @77F: 13.6 mm Hg. Flash Point (TCC): 12809 mixture - none; n-Octane Top Liquid Layer - 56F/13C; PFC Bottom Liquid Layer - none.
Product Performance Benefits:
- No flash point for greater safety
- Excellent Deposition and Carrier Solvent
- Moisture and oxygen free prevents premature curing of lubricious silicone coatings, lubricants and depositions
- Superior swelling solvent
- Swelling of platinum and peroxide cured silicone tube and fittings
- Fast acting / high throughput
- Superior work times for superior
- Replaces highly volatile and flammable n-heptane and siloxane solvents (HMDS)
