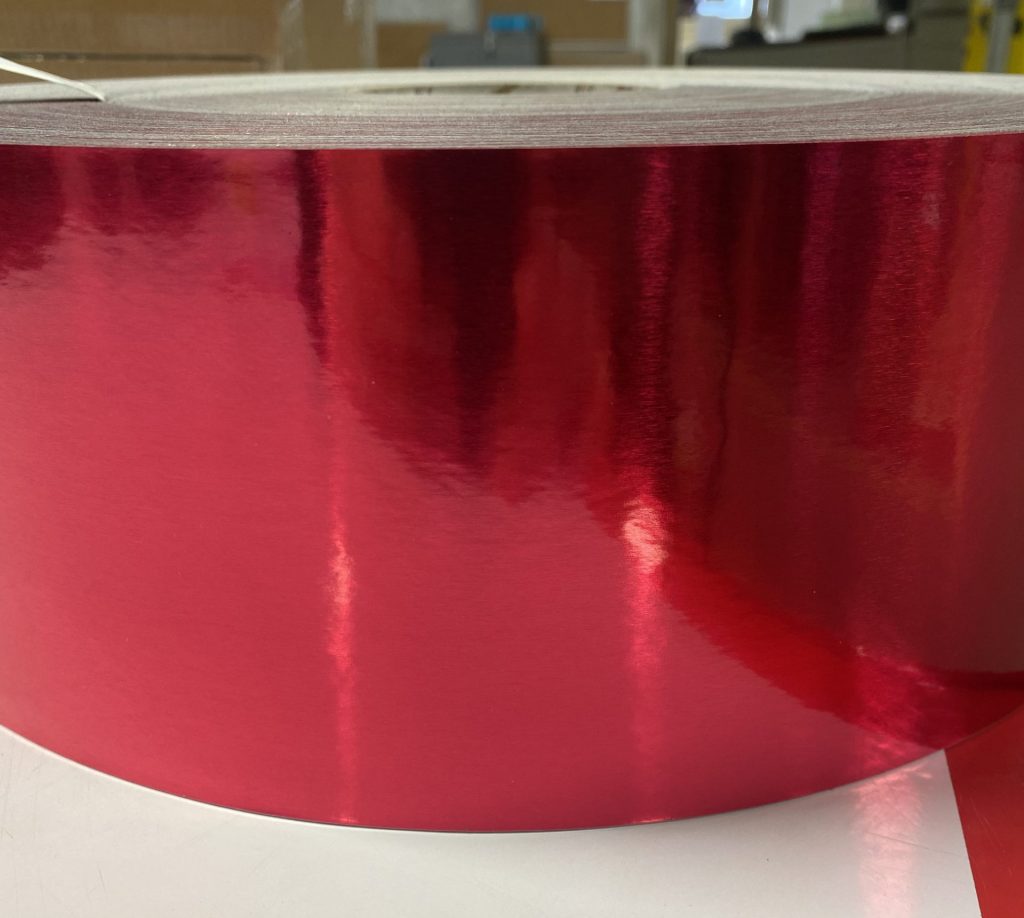

Lamart PFP-575 RED
Lamart PFP-575 RED is a custom pressure sensitive product designed for shielding applications such as wire harness and cable wrapping. It features a construction of 0.0007" aluminum laminated on both sides with 0.0006" polypropylene, utilizing an acrylic pressure sensitive adhesive, and is provided on a 50 # densified kraft release liner.
Key Features:
- 0.0006" Polypropylene / 0.0007" Aluminum Foil / 0.0006" Polypropylene construction
- Acrylic pressure sensitive adhesive
- 50 # densified kraft release liner
- Red Color
Typical Applications:
- Wire harness wrapping
- Cable wrapping
- Shielding applications
Product Key Properties:
Material Thickness (polypropylene/foil/polypropylene without adhesive): 0.0017" - 0.0025" (ASTM-D-374) Release value from liner: 4 gms. - 50 gms. (LTM # 18, GMS/Inch of Width) Pressure Sensitive Adhesive Thickness: 0.0011" - 0.0014" (ASTM-D-3652) Peel Strength: > 32 oz/Inch of Width (1hr dwell, PSTC # 1) Shelf Life: 1 year when stored under conditions of 70 degrees F. (21 degrees C.) and 50% RH.
Product Performance Benefits:
- Provides shielding for wire harnesses and cables
- Offers a balance of flexibility and durability
- Ensures reliable adhesion with acrylic pressure sensitive adhesive
- Maintains performance within specified shelf life under recommended storage conditions
