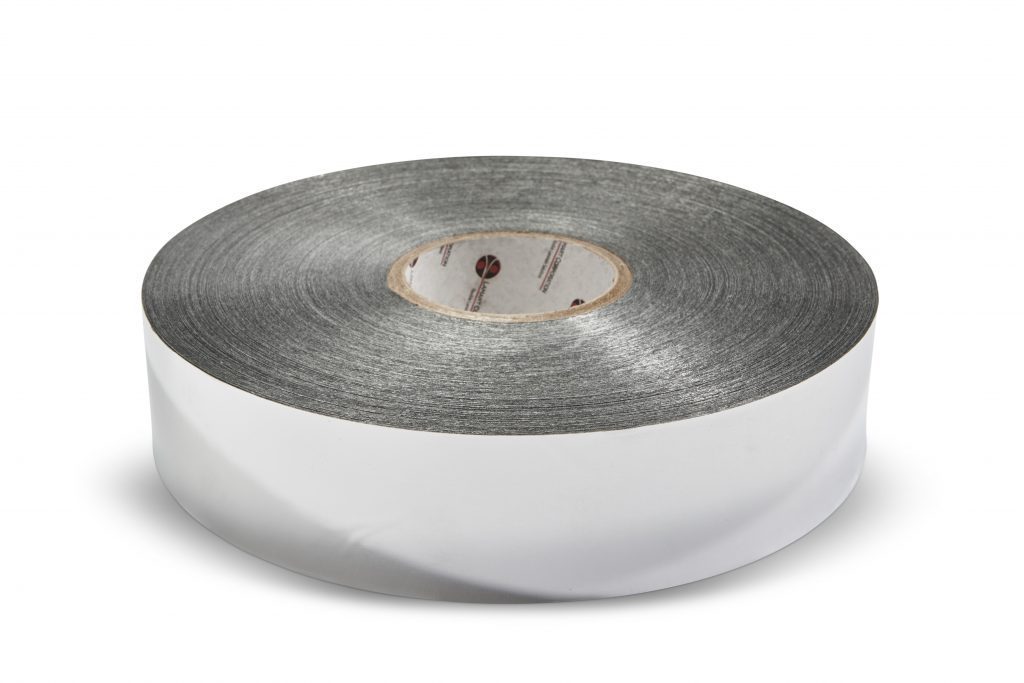

Lamart A-35-PS
Lamart A-35-PS is designed for EMI and RFI shielding of electronic components. It is constructed with a 0.00035" aluminum foil, a 0.003" polyester film, and a 0.0015" acrylic pressure-sensitive adhesive, supported by a 90 lb. release liner. This product ensures effective signal attenuation and dielectric strength, making it suitable for various electronic applications.
To apply Lamart A-35-PS, ensure the target surface is clean and dry. Peel off the release liner and carefully apply the adhesive side to the component, pressing firmly to ensure full contact. This material provides a reliable shield against electromagnetic and radio frequency interference, maintaining the integrity and performance of electronic devices.
Key Features:
- 0.00035" aluminum foil
- 0.003" polyester film
- 0.0015" acrylic pressure sensitive adhesive
- 90 lb. release liner
- EMI and RFI shielding
Typical Applications:
- EMI and RFI shielding of electronic components
Product Key Properties: Signal Attenuation: 95 dB @ 100 MHzDielectric Strength: 10,200 voltsThickness: 0.005 inch +/- 10%Peel Strength: 32 oz./inch of width min.Tensile Strength: 20,000 p.s.i.Elongation at Break: 90%Color: SilverShelf Life: 1 year when stored under conditions of 70 degrees F. (21 degrees C.) and 50% R.H.
Product Performance Benefits: Effective EMI and RFI shieldingHigh signal attenuationExcellent dielectric strengthGood tensile strength and elongationReliable adhesion
