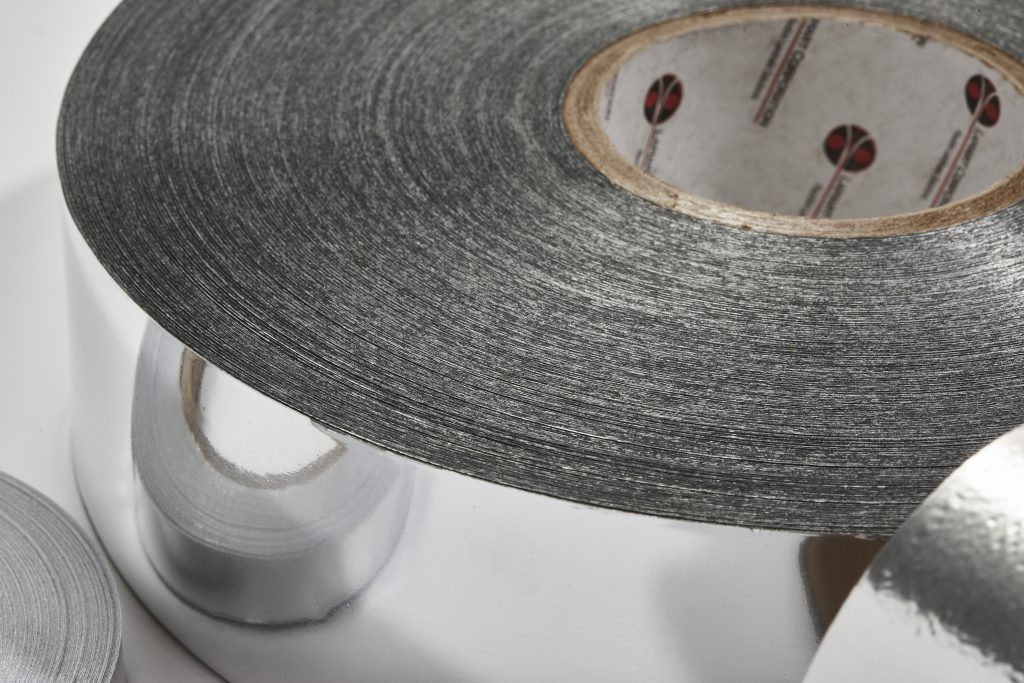

Lamart 326 Harness Wrap Tape
Lamart 326 Harness Wrap Tape is a pressure-sensitive product engineered to your specifications, designed as a high-temperature reflective tape. It is ideal for under-hood wire harness wraps in cars, trucks, or any area requiring protection from radiant heat. The tape features an exposed aluminum foil surface that acts as an excellent reflector of radiant heat. It uses an aggressive acrylic PS adhesive designed for quick stick and ultimate adhesion. A polyester layer provides extra strength at an economical price.
To apply, ensure the surface is clean and dry. Wrap the tape around wire harnesses or any area needing heat protection, pressing firmly to ensure good adhesion. The tape's aluminum foil reflects radiant heat, protecting the underlying materials. Store in conditions of 70 degrees F (21 degrees C) and 50% R.H. for a shelf life of one year.
Key Features:
- Exposed aluminum foil for radiant heat reflection
- Aggressive acrylic PS adhesive for quick stick and ultimate adhesion
- Polyester layer for extra strength and economy
- High-temperature resistance
Typical Applications:
- Under-hood wire harness wrap for cars and trucks
- Protection from radiant heat in automotive applications
- Anywhere requiring reflective heat protection
Product Key Properties: Backing: 0.00035" aluminum, 0.00092" polyester; Adhesive: Acrylic; Thickness: 0.0018 inch +/- 10%; Peel Strength: 44 oz/inch of width; Breaking Strength: 25 lbs/inch of width; Elongation at Break: 130 %; Color: Silver; Surface Resistivity: 20 milliohms/sq in.
Product Performance Benefits: Excellent reflector of radiant heat; Provides quick stick and ultimate adhesion; Offers extra strength at an economical price; Ensures protection from high temperatures; Conforms to MIL-STD 202 Method 303.
