DOWSIL3196536KG | DOWSIL 3 1965 CONFORMAL COATING - 3.6KG | Aircraft products | na

Home / NA / DOWSIL-3-1965-3.6KG

Part Number: DOWSIL-3-1965-3.6KG

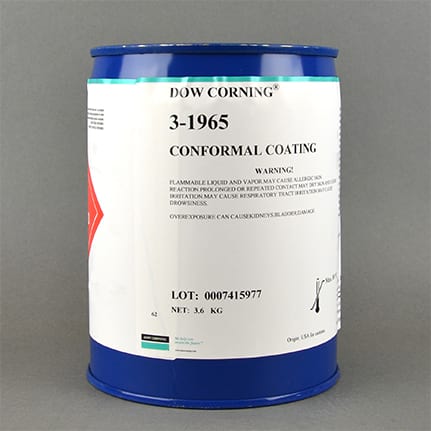

DOWSIL 3 1965 CONFORMAL COATING - 3.6KG

Size: 3.6KG

Unit of Measure: EA

Minimum Order Qty: 1

Manufacturer: Dow

Usually Ships: REQUEST

View TDS/SDS File

Features and Specifications

DOWSIL 3 1965 Conformal Coating – One part, transparent, solventless conformal coating meeting UL, IPC, and Mil Spec standards.

DOWSIL 3 1965 Conformal Coating is a one part, transparent, solventless, low viscosity coating designed for protecting sensitive electronic components. It cures at room temperature into a soft, low stress elastomer, offering excellent flexibility and stress relief. The inclusion of a UV indicator simplifies inspection, ensuring complete coverage of the protected surfaces. Its low viscosity allows for excellent flow and fill, even in tight spaces, enhancing protection against environmental factors and mechanical stress.

The coating adheres well to a variety of substrates, including low solids and no lead solders, contributing to improved reliability. While suitable for use on rigid and flexible circuit boards and printed wiring boards (PWBs), proper surface preparation may be necessary on low surface energy materials to optimize adhesion. Cure time is variable and depends on factors such as film thickness, temperature, and humidity; however, mild heat (60°C or less) can accelerate the curing process. Proper ventilation is crucial when using solvents or stripping agents for repairs.

Key Features:
• One part, solventless formulation
• Transparent and low viscosity for easy application and excellent fill
• Cures to a soft, low stress elastomer at room temperature (heat curing optional)
• Incorporates a UV indicator for complete coverage verification
• Meets UL, IPC, and Mil Spec standards
• Good adhesion to various substrates, including low solids and no lead solders

Typical Applications:
• Rigid and flexible circuit boards
• Printed wiring boards (PWBs)
• Protection of sensitive electronic components Uses Elastomeric conformal coating
Suitable for lighting, industrial and automotive industries requiring various reliability standards as a coating for rigid and flexible circuit boards, electronic printed wiring boards (PWB), sensitive components and fine pitched designs. No added solvents
Room temperature cure, no ovens required
Mild heat acceleration can speed in line processing
Good adhesion to many substrates
Allows use with many low solids no lead solder
Soft coating improves reliability against stress
Low viscosity enhances flow and fill in narrow gaps and spaces
UV indicator allows for automated inspection
UL 94 V 0 flammability rating
UL746C Recognized
IPC CC 830, Amendment 1 Approved
Mil I 46058C, Amendment 7 Approved
Good adhesion allows use with many low solids (no clean) and no lead solders Use: Boards and Assemblies, Components
Regulatory Approvals: IPC CC 830B, MIL Spec, UL Recognized
Number of Parts: One Part
Tack Free Time 50% RH: 6 Minutes
Color: Translucent
Cure Type: Moisture Cure, Room temperature cure
Dispense Method: Dip, Spray
Durometer Shore A: 33
Non Volatile Content: 79%
Solvent Added: No
Viscosity: 115 mPa.s

Color: TRANSPARENT
