Part Number: DOWSIL-TC-4535-40KG

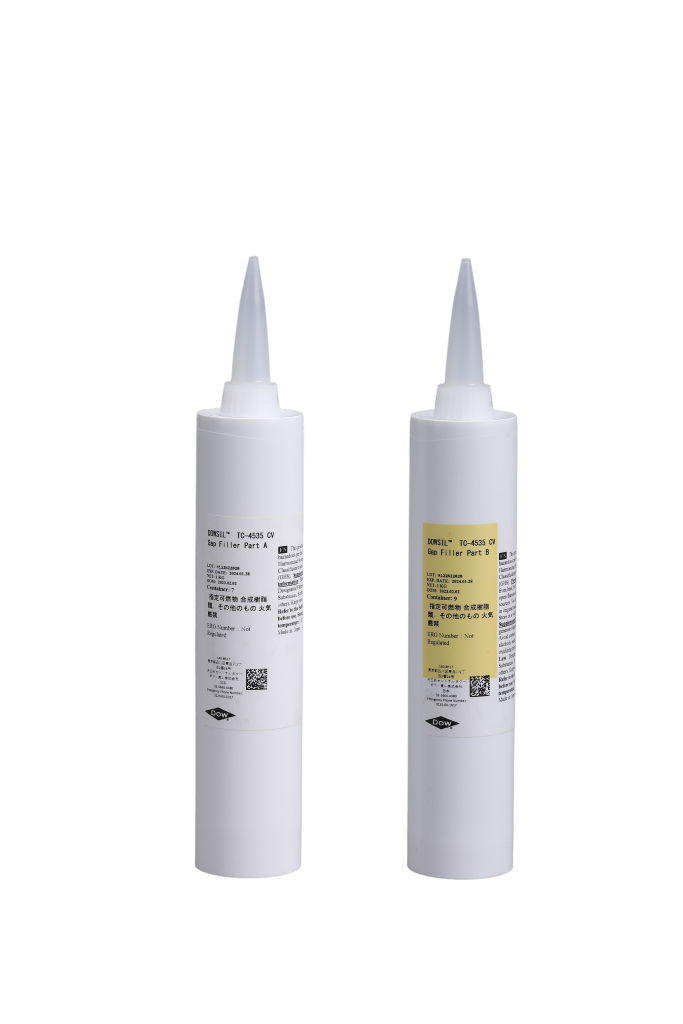

DOWSIL TC 4535 CV THERMALLY CONDUCTIVE GAP FILLER - 40KG

Size: 40KG

Unit of Measure: EA

Minimum Order Qty: 1

Manufacturer: Dow

Usually Ships: REQUEST

View TDS/SDS File

Features and Specifications

DOWSIL TC 4535 CV Thermally Conductive Gap Filler – Two part silicone gap filler for efficient heat dissipation in electronic applications.

DOWSIL TC 4535 CV is a two part, 3.4 W/mK thermally conductive silicone gap filler designed for use in electronic applications requiring reliable heat dissipation. This room temperature curing material (with optional accelerated heat curing) forms a soft, compliant elastomer ideal for filling gaps between heat generating components, such as PCB module assemblies, and heat sinks. Its flexibility ensures effective heat transfer even with minor surface irregularities.

The material is mixed in a defined ratio by weight or volume, ideally using a static mixer for both manual and automated dispensing to ensure homogeneity. The curing process occurs at a constant rate, regardless of thickness or confinement, resulting in a flexible elastomer without an exothermic reaction. Curing can be performed at room temperature or accelerated with heat. The cured material exhibits controlled silicone volatility, maintains its vertical position during application, and offers long term performance stability through temperature cycling up to 150°C, with short term exposure peaks up to 175°C.

Key Features:
• 3.4 W/mK thermal conductivity
• Two part, room temperature curing (with accelerated heat cure option)
• Forms a soft, compliant elastomer
• Constant cure rate regardless of thickness or confinement
• No exothermic reaction during curing
• Maintains vertical position during application
• Long term stability through temperature cycling up to 150°C (peaks at 175°C)

Typical Applications:
• Dissipating heat from PCB module assemblies to heat sinks
• Cooling engine or transmission control units Uses Heat dissipation
Vibration damping
Stress relief
Thermal interface material (TIM) Thermal conductivity: 3.4 W/mK
Room temperature or heat accelerated cure
Cure time: 2 hr at 25 °C, 10 min at 80 °C
Hardness: 52 Shore 00
Holds vertical position
UL 94 V0 recognition
Controlled silicone volatility (< 100 ppm) Mixing Ratio: 1:1 wt%
Room Temperature Cure: 2 Hours
Color: Blue
Cure Type: Heat accelerated cure, Room temperature cure
Durometer Shore 00: 52
Material Type: Gap Filler
Number of Parts: 2 part
Specific Gravity: 3.1
Thermal Conductivity: 3.4 W/mK

Color: WHITE/BLUE
