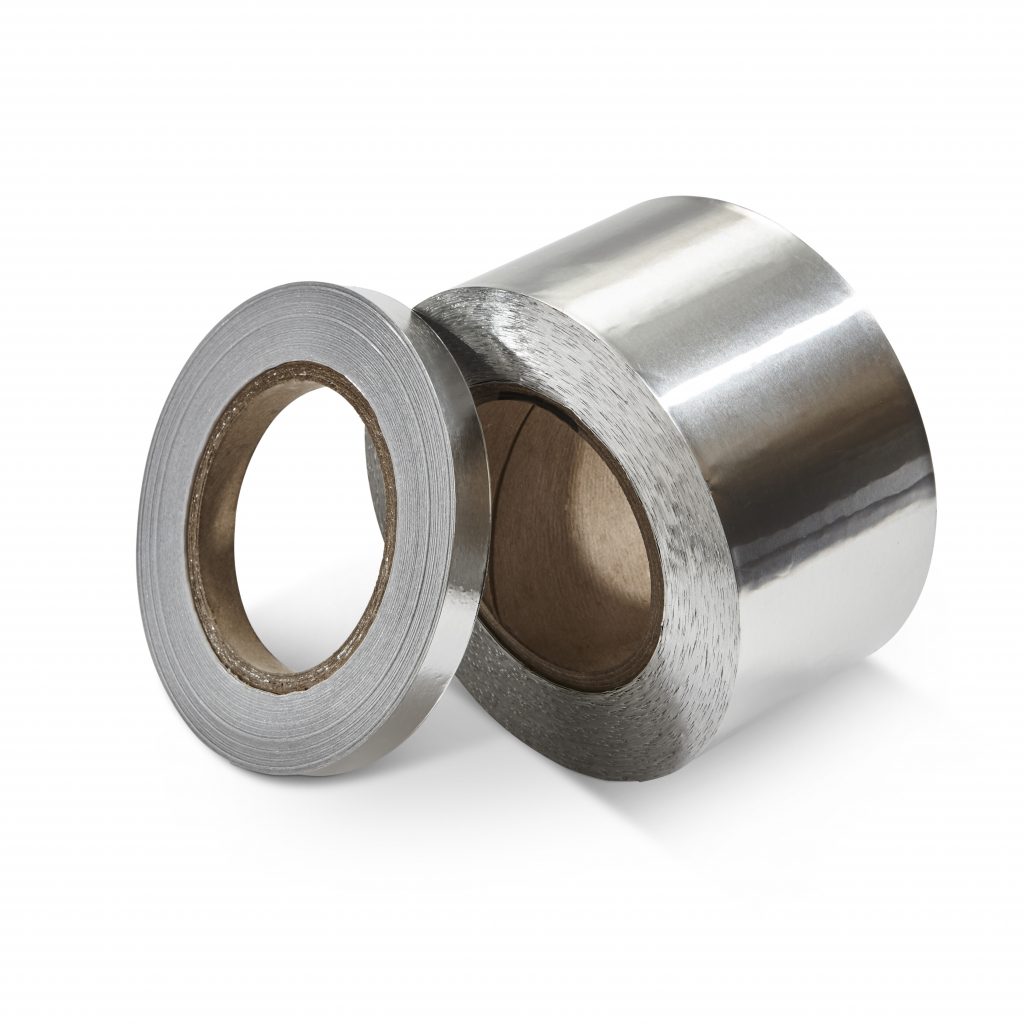

Lamart A-55 PS
Lamart A-55 PS ELECTROSHIELD Laminates and Coated Products Engineered to Solve EMI/RFI Shielding Problems. It is designed for EMI and RFI shielding of electronic components. The laminate consists of .00035" aluminum foil, .005" polyester film, and .0015” acrylic pressure sensitive adhesive with a 90 lb. release liner.
To apply Lamart A-55 PS, ensure the electronic components are clean and dry. Peel back the release liner and apply the adhesive side to the component, pressing firmly to ensure full contact.
Key Features:
- .00035" aluminum foil
- .005" polyester film
- .0015” acrylic pressure sensitive adhesive
- 90 lb. release liner
- EMI and RFI shielding of electronic components
Typical Applications:
- EMI and RFI shielding of electronic components
Product Key Properties: .00035" aluminum foil, .005" polyester film, .0015” acrylic pressure sensitive adhesive, 90 lb. release liner
Product Performance Benefits: Signal Attenuation: 95 dB @ 100 MHz (ASTM D4935-99)Dielectric Strength: 13,500 volts (ASTM D149)Thickness: .0070" +/- 5% (ASTM-D-3652)Peel Strength: 40 oz./inch of width (ASTM-D-1000)Tensile Strength: 18,000 P.S.I. min. (ASTM-D-882)Elongation at Break: 115% (ASTM-D-882)Color: SilverShelf Life: 1 year when stored under conditions of 70 degrees F. (21 degrees C.) and 50% R.H.
