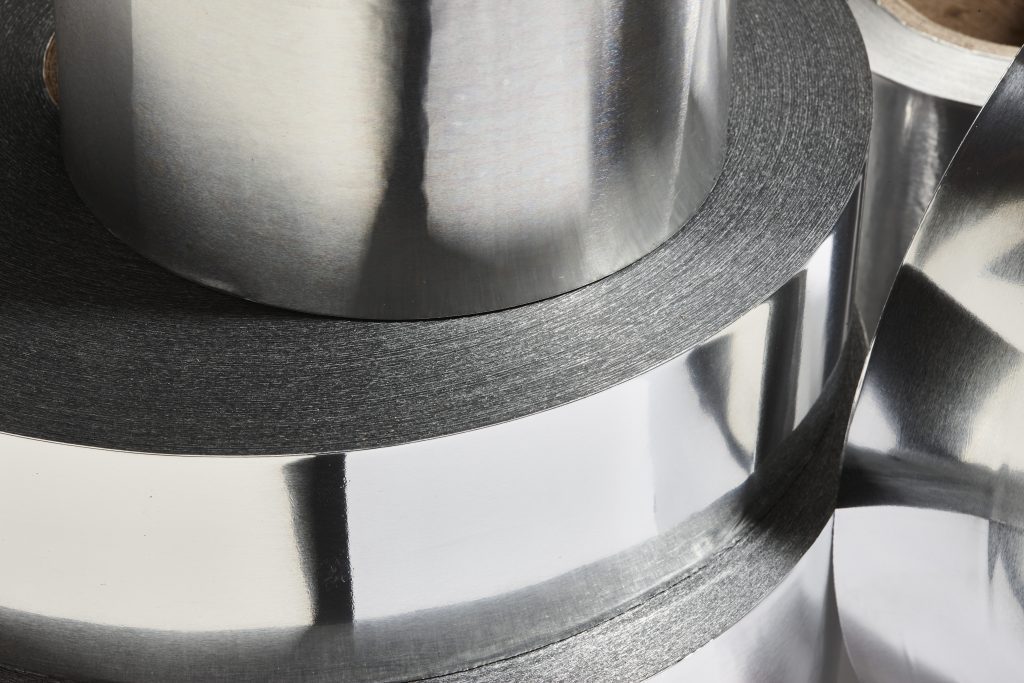

Lamart 520-SW
Lamart 520-SW is a 2 mil aluminum foil coated on one side with acrylic adhesive, provided in a self wound roll. It provides an economical solution for joining and sealing of laminated fiberglass blankets, ducts, joints and seams for both rigid and flexible HVAC constructions. This pressure sensitive product is engineered to your specifications.
For application, the surface must be clean, dry and free of contaminants. Apply pressure with a plastic squeegee.
Key Features:
- 0.002″ Aluminum Foil Backing
- Acrylic Adhesive
- Aggressive acrylic adhesive system
- Bonds tightly and permanently to insulation facing and HVAC ducts
- Performs well over a wide range of environmental conditions
- Self wound to eliminate liner waste and increase installation efficiency
Typical Applications:
- Joining and sealing of laminated fiberglass blankets
- Sealing of ducts, joints and seams for both rigid and flexible HVAC constructions
Product Key Properties: 0.002″ Aluminum Foil Backing with Acrylic Adhesive; Thickness: 0.0033” (0.0838mm); Peel Strength: 50 oz./in. (9.9N/cm); Tensile Strength: 17 lbs./in. (30N/cm); Elongation: 3.5%; Service Temperature: -40 F / 350F (-40C / 177C); Shelf Life: 1 year when stored under conditions of 70 degrees F. and 50% R.H.
Product Performance Benefits: Economical solution for HVAC applications; Aggressive acrylic adhesive bonds tightly to surfaces; Performs well in a wide range of environmental conditions; Self-wound to reduce waste and improve installation efficiency.
