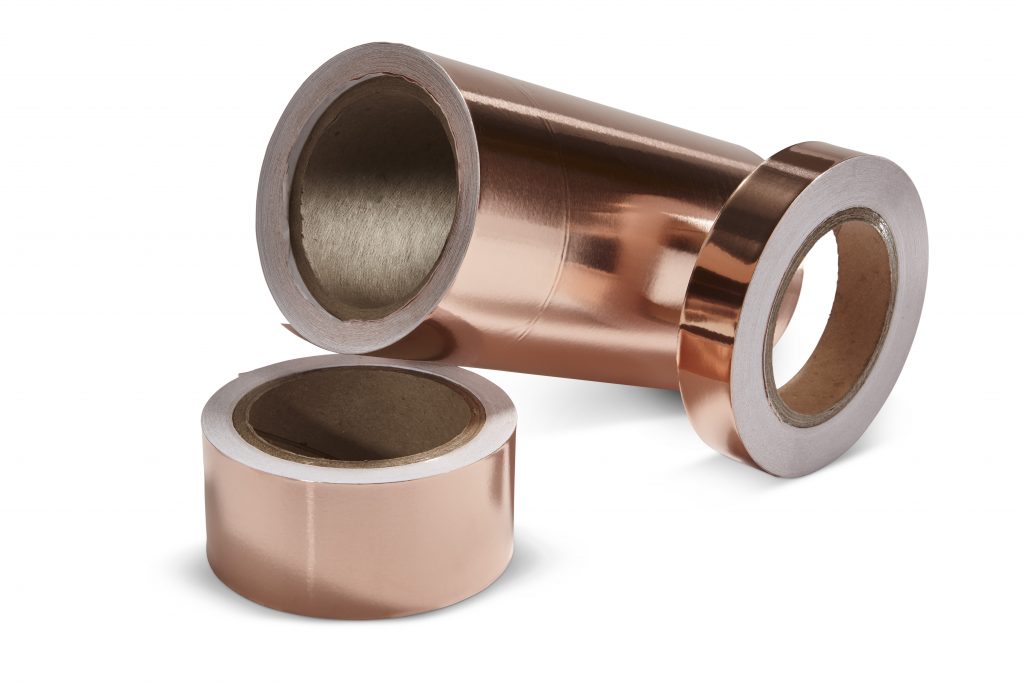

Lamart C-58-PS
Lamart C-58-PS is designed for EMI and RFI shielding of electronic components. It features a construction of .0007" copper foil, .005" polyester film, and .001" acrylic pressure sensitive adhesive with a 90 lb. release liner.
To apply Lamart C-58-PS, ensure the electronic components are clean and dry. Remove the release liner and apply the adhesive side to the component, ensuring full contact for effective shielding. This product provides a signal attenuation of 105dB @ 100 MHz and has a dielectric strength of 13,500 volts. The material is copper in color and should be stored under conditions of 70 degrees F (21 degrees C) and 50% R.H. for a shelf life of 1 year.
Key Features:
- .0007" copper foil
- .005" polyester film
- .001" acrylic pressure sensitive adhesive
- 90 lb. release liner
- EMI and RFI shielding
Typical Applications:
- EMI Shielding
- RFI Shielding
- Electronic components
Product Key Properties: Signal Attenuation: 105dB @ 100 MHz, Dielectric Strength: 13,500 volts, Thickness w/o liner: .0069" + / – 10%, Peel Strength: 32 oz./inch of width, Color: Copper, Shelf Life: 1 year when stored under conditions of 70 degrees F. (21 degrees C.) and 50% R.H.
Product Performance Benefits: Effective EMI and RFI shielding for electronic components, High signal attenuation, Excellent dielectric strength, Good peel strength, Long shelf life when stored properly
