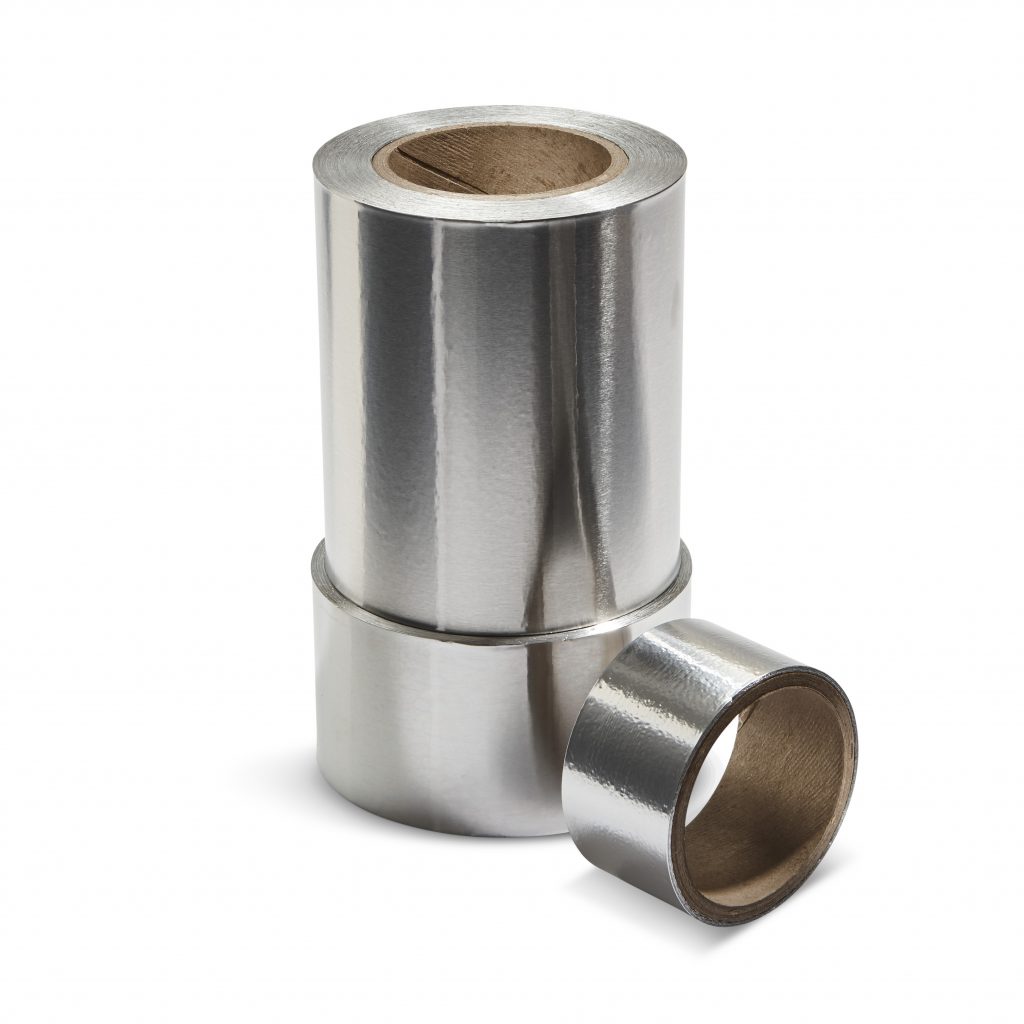

Lamart 892L Aluminum Tape
Lamart 892L Aluminum Tape is a 2mil aluminum foil coated on one side with conductive PSA, supplied on a release liner. It is used as a heat reflective wrap and barrier in applications exposed to demanding high-temperature environments. It is also a popular tape as a seal for automotive airbags.
This tape features a dead soft aluminum foil backing, providing high conformability to irregular and curved surfaces. The aggressive acrylic PS adhesive offers high quick stick and ultimate adhesion. The conductive adhesive ensures excellent shielding effectiveness, and the liner allows the tape to be die-cut into various shapes.
Key Features:
- 0.0018" Aluminum Foil Backing
- Conductive Acrylic Adhesive
- Silicone Release Polycoated Paper Interliner
- Highly Conformable to Irregular and Curved Surfaces
- High Quick Stick and Ultimate Adhesion
- Excellent Shielding Effectiveness
- Die-Cuttable Liner
Typical Applications:
- Electromagnetic and Radio Frequency Shielding
- Microwave Components
- Cables
- Antennas
- Motors
- Cabinets
- Static Drain
Product Key Properties:
2mil aluminum foil coated on one side with conductive PSA; Backing: 0.0018" Aluminum Foil; Adhesive: Acrylic, Conductive; Interliner: Silicone release polycoated paper; Meets UL 510 Flame Test Specification; Insulation Class: 155 degrees C.
Product Performance Benefits:
- Highly conformable to both irregular and curved surfaces.
- Aggressive acrylic PS adhesive offers high quick stick and ultimate adhesion.
- Conductive adhesive offers excellent shielding effectiveness.
- Liner allows the tape to be die cut into shapes.
- Meets UL 510 Flame Test Specification
Technical Data:
- Thickness w/o liner: 0.0036 inch +/- 10% (ASTM-D-3652)
- Peel Strength: 35 oz./inch of width (PSTC-1)
- Breaking Strength: 15 lbs./inch of width (ASTM-D-1000)
- Elongation at Break: 5% (ASTM-D-1000)
- Color: Silver
- Insulation Resistance: N/A
- Electrical Resistance through Adhesive: 40 milliohms/inch squared maximum (MIL-STD-202, Method 303)
- Service Temperature: -40F / 325F
- Shelf Life: 1 year when stored under conditions of 70 degrees F. (21 degrees C.) and 50% R.H.
