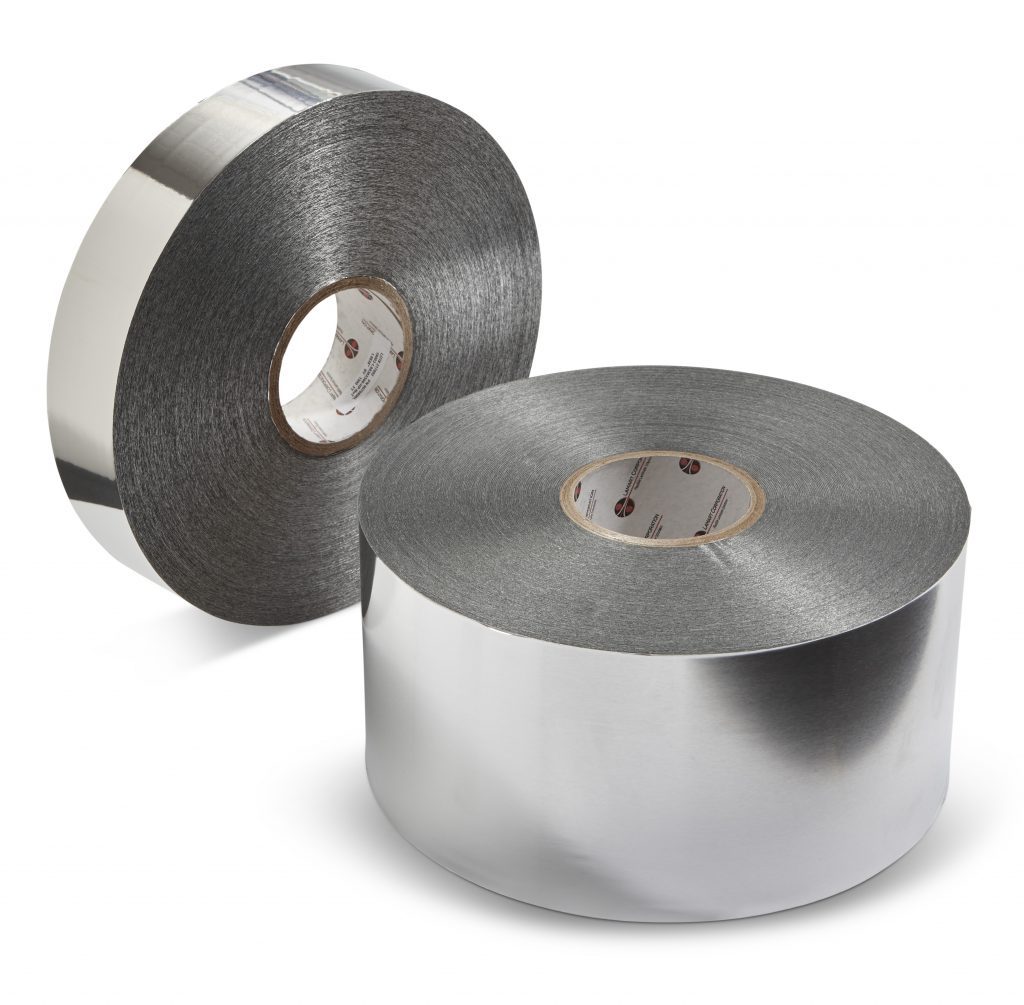

Lamart A-10 PS
Lamart A-10 PS is engineered to solve EMI/RFI shielding problems in electronic components. It features a construction of 0.00035" aluminum foil, a 0.00048" polyester film, and a 0.0015" acrylic pressure-sensitive adhesive with a 90 lb. release liner. To apply, ensure the electronic components are clean and dry, then carefully apply the A-10 PS to the desired area, pressing firmly to ensure proper adhesion. Avoid creating air bubbles or wrinkles during application.
This product has a signal attenuation of 95 dB @ 100 MHz (ASTM D4935-99), a dielectric strength of 3,900 volts (ASTM D149), and a thickness of 0.0025" +/- 10% (ASTM-D-3652). It exhibits a peel strength of 32 oz./inch of width (ASTM-D-1000), a tensile strength of 12,000 p.s.i. (ASTM-D-882), and an elongation at break of 70% (ASTM-D-882). The product is silver in color and has a shelf life of 1 year when stored at 70 degrees F (21 degrees C) and 50% R.H.
Key Features:
- 0.00035" aluminum foil
- 0.00048" polyester film
- 0.0015" acrylic pressure sensitive adhesive
- 90 lb. release liner
- EMI and RFI shielding
Typical Applications:
- EMI and RFI shielding of electronic components
Product Key Properties: Signal Attenuation: 95 dB @ 100 MHz (ASTM D4935-99)Dielectric Strength: 3,900 volts (ASTM D149)Thickness: 0.0025" +/- 10% (ASTM-D-3652)Peel Strength: 32 oz./inch of width (ASTM-D-1000)Tensile Strength: 12,000 p.s.i. (ASTM-D-882)Elongation at Break: 70% (ASTM-D-882)Color: SilverShelf Life: 1 year when stored under conditions of 70 degrees F. (21 degrees C.) and 50% R.H.
Product Performance Benefits: Effective EMI/RFI ShieldingHigh Signal AttenuationGood Dielectric StrengthHigh Peel StrengthGood Tensile StrengthFlexible and Conformable
