Aerospace Specialty Metals Jaco Aerospace

Q: Can Jaco source materials for adjacent markets?

Yes. The listed range includes materials for marine and defense, oilfield, connector rod and wire, ferrous and non-ferrous requirements, and engineering polymers.

Specialty metals supplied by Jaco Aerospace

Specialty metals aligned with the aerospace specifications you build to

Beryllium copper, ToughMet® 3, nickel aluminum bronze, phosphor bronze and additional high-performance materials for commercial aviation, defense, space and MRO applications. Jaco supports procurement with specification knowledge, material traceability and required certification documentation.

Request a quote View all 167 materials

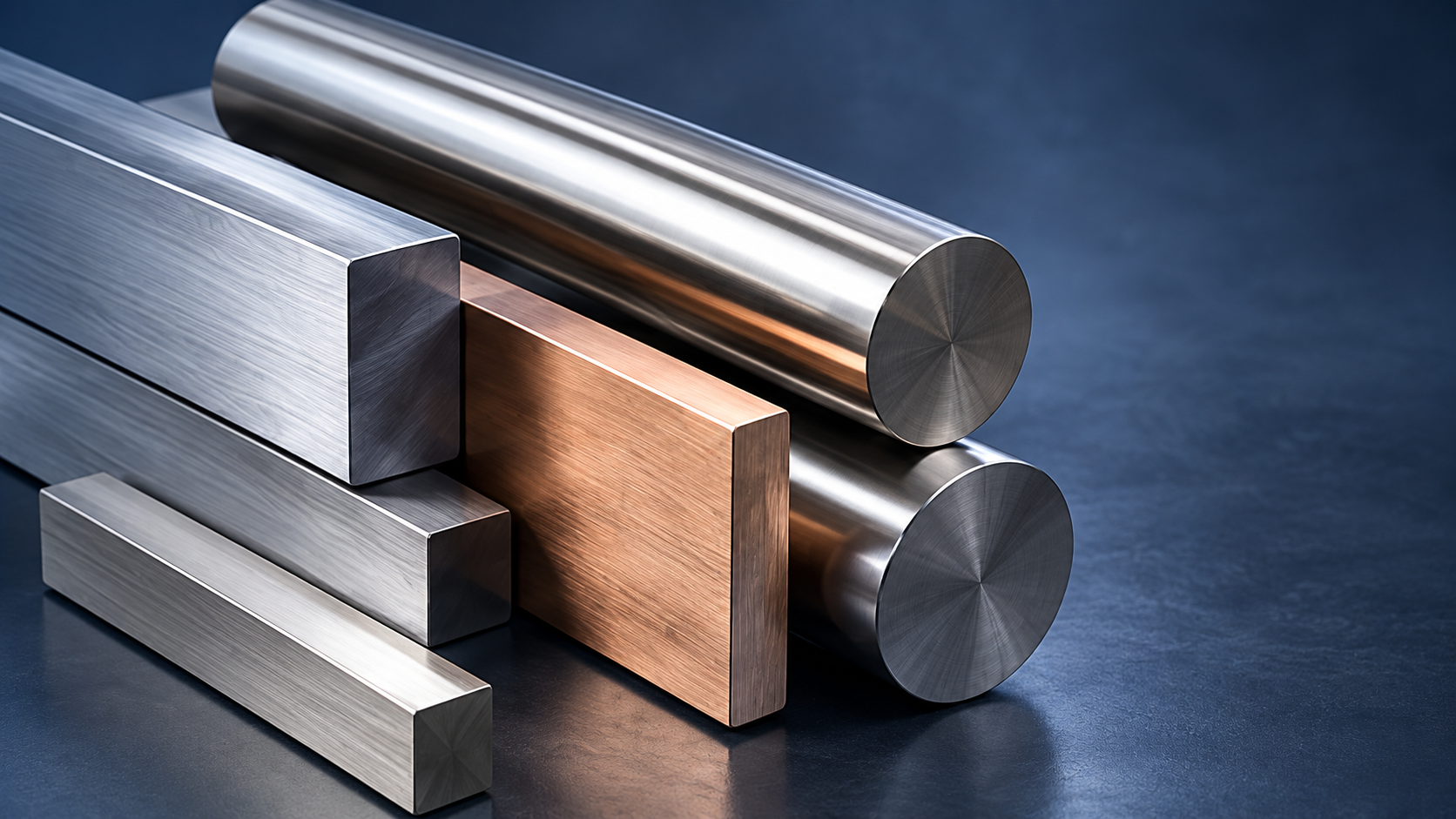

Aerospace and industrial alloys available in forms such as bar, rod, tube, plate, wire and cast material, subject to grade and mill availability.

37 Aerospace alloy and temper entries across 12 specialty copper-alloy families

167 Total material entries spanning aerospace and adjacent specialty markets

323 Industry and OEM cross-references including AMS, ASTM, QQ, MIL, ASNA, NFL, DIN and BS

Aerospace alloy families

High-performance materials for bearings, bushings, landing gear and airframe hardware

The aerospace range emphasizes copper alloys that carry load without galling, resist corrosion and retain their specified properties after appropriate processing. Material form, temper, governing revision and required documentation should be identified with each request.

Spinodal Copper Nickel Tin

ToughMet 3 C72900 combines high strength with wear and galling resistance for landing-gear bushings, actuator bearings and heavily loaded pins.

Copper Beryllium

C17200 Alloy 25 and C17510 Alloy 3 provide high strength, fatigue resistance, spring performance and useful electrical conductivity.

Free-Machining Copper Beryllium

C17300 M25 adds chip-breaking capability for precision-machined contacts, connectors and smaller bearing components.

Wrought Aluminum Bronze

C62300 and C64200 offer strength, galling resistance and resistance to seawater and sulfur-bearing environments.

Cast Aluminum Bronze

C95200 through C95420 support bearing blocks, wear rings, bushings and structural cast components.

Wrought Nickel Aluminum Bronze

C63000, C63020, UA10N and CA 104 serve high-load bearing, bushing and corrosion-resistant hardware applications.

Cast Nickel Aluminum Bronze

C95500, C95510 and C95520 support high-load bushings, thrust washers, housings and pump components.

High-Tensile Brass

UZ19A6 and C86300 manganese-bearing grades suit heavy-duty bearings, gears and landing-gear components.

Oil-Impregnated Sintered Bronze

Porous bronze supports self-lubricating bearings and bushings where service access is limited.

Phosphor Bronze

C51000 and C52100 provide spring properties, fatigue resistance and low friction for contacts, washers and bushings.

Copper Silicon and Copper Nickel Silicon

These precipitation-hardening grades balance strength, conductivity and resistance to thermal softening.

Free-Machining and Naval Brass

C36000 supports efficient machining, while C46400 adds tin for improved corrosion resistance.

Metals we carry

Browse aerospace raw material by metal type

Jaco Aerospace supplies a broad range of aerospace metals beyond the specialty copper alloys detailed on this page. Select a metal below to review the grades, forms and specifications stocked in that category.

Metal category pages open in a new tab. If the grade, form or specification you need is not listed, send the requirement to Jaco Aerospace and the sales team will confirm availability.

Complete material reference

All 167 specialty material entries

The complete range is presented below by market. Specifications are provided as reference points for quoting; confirm the governing revision, form, temper, dimensional requirements and all customer or OEM flow-downs with your request.

Aerospace

37 entries

Marine & Defense

37 entries

Aluminum BronzeC63000AMS 4640 · ASTM B150 · ASTM-B-124 · QQ-C-465
Aluminum BronzeC63200QQ-C-465 · ASTM B150 · ASTM B124 · MIL-B-24059
Aluminum BronzeC64200QQ-C-465 · ASTM B150 · ASTM B124
Copper NickelC71500MIL-C-15726 · MIL-T-15005 · ASTM B151 · MIL-C-24679
High-Strength SteelHY 80MIL-S-21952 C&D · T9074-BD-GIB-010 · 300 Appendix G
High-Strength SteelHY 100MIL-S-21952 C&D · T9074-BD-GIB-010 · 300 Appendix G
Stainless SteelA286AMS 5737 · ASTM A453 Grade 660 Class A&B · AMS 5732 · ASTM I638 Grade 660 Type 1&2
Stainless SteelNitronic 60AMS 5848 · ASTM A276 · ASTM A193
Stainless Steel17-4ASTM A564 · AMS 5643
Stainless Steel17-4 Condition H1025ASTM A564 · AMS-5643 · MIL-I-45208A
Stainless Steel17-4 Condition H1075ASTM A564 · ASME-SA-564
Stainless Steel17-4 Condition H1100ASTM A564 · ASME-SA-564
Stainless Steel302 / 304 / 305
Stainless Steel304 AnnealedQQ-S-763 · ASTM A276
Stainless Steel304-BASTM A193 B8 Class 2 & 2B · QQ-S-763 · ASTM A193-10 & 10A
Stainless Steel316-L AnnealedQQ-S-763
Stainless Steel316-BQQ-S-763
Stainless Steel316-L
Stainless Steel418 Greek AscoloyAMS 5616
Stainless Steel430ASTM A276 · QQ-S-763F
Stainless Steel430-FASTM A582 · QQ-S-764B
Nickel Alloy400QQ-N-281 · ASTM B164 · AMS 4674 · ASME SB164
Nickel Alloy405QQ-N-281 · ASTM B164 · AMS 4674 · ASME SB164
Nickel Alloy500 HF / AN / AHQQ-N-286G
Nickel Alloy500 CD / AN / AHQQ-N-286G
Nickel Alloy500 AnnealedQQ-N-286G
Nickel Alloy625AMS 5666 · ASTM B446 Grade 1
Nickel Alloy718AMS 5662
Nickel Alloy718 APIAPI 6A718 · API Standard 6ACRA · API Specification 6A · NACE MR0175 · ASTM B637
Nickel AlloyHastelloy XAMS 5754 · MIL-I-45208A
Other BronzeC46400ASTM B171 · QQ-B-639 · ASTM B21 · ASTM B124 · QQ-B-637 · AMS 4611
Other BronzeC65500ASTM B98 · ASTM B124
Other BronzeC51000ASTM B139 · AMS 4625 · QQ-B-750
Bearing AlloyAlcopMS-988 · EMS-102
Bearing AlloyC67500QQ-B-728 · ASTM-B-138 · ASTM-B-124
Bearing AlloyC65620AMS 4616
Bearing AlloyC86400ASTM B584 · MS-989 · EMS 102.1

Oilfield

41 entries

Connector Rod & Wire

15 entries

Lead-Freeeco S34 · CuZn34Mn2SiAlNi · UNS C67340
Lead-FreeK55 · CuNi3SiMg · C70250ASTM B888 · ASTM B422
Lead-Freeeco KS2 · CuSP · C14700 · CW114CASTM B301 · EN 12164 · EN 12166
Lead-Freeeco KS4 · CuNiSP
Legacy AlloyWICONNEC-Z10 · CuZn37Pb0.5 · C33500 · CW604NASTM B453
Legacy AlloyWICONNEC-Z11 · CuZn35Pb1 · C34000 · CW600NASTM B453 · EN 12164 · EN 12165 · EN 12166
Legacy AlloyWICONNEC-Z14 · CuZn37Pb2 · C35300 · CW606NASTM B453 · EN 12164 · EN 12166
Legacy AlloyWICONNEC-Z21 · CuZn38Pb2 · CW608NEN 12164 · EN 12166
Legacy AlloyWICONNEC-Z23 · CuZn36Pb3 · C36000 · CW603NASTM B453 · EN 12164 · EN 12166
Legacy AlloyWICONNEC-Z33 · CuZn39Pb3 · C38500 · CW614NASTM B455 · EN 12164 · EN 12165 · EN 12166
Legacy AlloyWICONNEC-KC1 · CuPb1P · C18700 · CW113CASTM B301 · EN 12164 · EN 12166
Legacy AlloyWICONNEC-K44 · CuNi1Pb0.6P · C19140 · C19150
Legacy AlloyWICONNEC-K41 · CuNi1Pb1P · C19150 · C19160
Legacy AlloyWICONNEC-B44 · CuSn4Pb4Zn4 · C54400 · CW456KASTM B139 · EN 12164
Legacy AlloyC145 · CuTeP · C14500 · CW118CASTM B301 · EN 12164 · EN 12166

Ferrous & Non-Ferrous

14 entries

Copper AlloyC14700ASTM B301
Copper AlloyC17300ASTM B196-07 · QQ-C-530
Copper AlloyC17510ASTM B441
Copper AlloyC18700ASTM B301
Copper AlloyC19160ASTM B249
BrassC36000ASTM B16
Copper NickelC71500MIL-C-15726 · MIL-T-15005 · ASTM B151 · MIL-C-24679
Copper NickelC71580ASTM F96
Stainless Steel303 StainlessAMS 5640 · ASTM A582
Stainless Steel304 StainlessASTM A276 · ASTM A479 · AMS 5639 · AMS QQ-S-736D
Stainless Steel316 StainlessASTM A479 · AMS 5653 · AMS QQ-S763 · ASTM A276
Nickel AlloyK500QQ-N-286 F/G, FM.1 and FM.2
Nickel AlloyNi400QQ-N-281 · ASTM B164 · AMS 4674 · ASME SB164
Nickel AlloyNi405QQ-N-281 · ASTM B164 · AMS 4674 · ASME SB164

Polymers

23 entries

Advanced Engineering PlasticDuratron PAI · Grades 4203, 4301, 5030, 5530 and 7130ASTM D7292 S-PAI0111 · ASTM D7292 S-PAI0121 · ASTM D7292 S-PAI0131
Advanced Engineering PlasticDuratron PBIVarious specifications
Advanced Engineering PlasticDuratron PIVarious specifications
Advanced Engineering PlasticSemitron ESD 520Various specifications
Advanced Engineering PlasticSemitron MDS 100Various specifications
Advanced Engineering PlasticVespel SP-1 / SP-22ASTM 1708 · ASTM 790 · ASTM 695
Engineering PlasticPEEKASTM D6262 S-PEAK 0111
Engineering PlasticSemitron 410C / 420 / 480Various specifications
Engineering PlasticSemitron 500Various specifications
Engineering PlasticTechtron PPSASTM D6358 PPS 000 B43050
Engineering PlasticUltem 1000 / 2300ASTM D7293 S-PEI 0111 · ASTM D7293 S-PEI 0213
High-Strength PolymerAcetron GPASTM D6100 S-POM 0211, LP
High-Strength PolymerDelrin 500 / Delrin AF / Delrin DE588ASTM D6100 S-POM 0143 · ASTM D6100 S-POM 0111
High-Strength PolymerECTFEASTM D792 · ASTM D638
High-Strength PolymerErtalyteASTM D6261 S-TPES 0211
High-Strength PolymerNylon 101 / Nylon GS / Nylon NSMASTM D5989 S-PA0111 · ASTM D5989 S-PA 0113
High-Strength PolymerPCTFE / Kel-FASTM D792 · AMS 3650
High-Strength PolymerPolycarbonateASTM D6098 S-PC 0121
High-Strength PolymerPolyethyleneVarious specifications
High-Strength PolymerPolypropyleneVarious specifications
High-Strength PolymerPTFE GradesASTM D1710
High-Strength PolymerSemitron 225Various specifications
High-Strength PolymerUHMW / TivarASTM D6712 S-UHMW-PE0111

Specifications are shown for reference and may represent different forms, conditions or revisions. Jaco Aerospace will confirm material availability and the applicable certification package against the requirements supplied with your request.

The Jaco advantage

Specialty materials from a distributor built for aerospace procurement

From initial specification review through certification documentation, Jaco supports the quality, traceability and scheduling requirements behind critical aerospace purchasing.

Aerospace quality system

Distribution processes designed to support material traceability and required documentation from the mill through receiving.

One PO for multiple requirements

Combine specialty bar, rod, tube and other forms with the sealants, adhesives, fasteners and MRO consumables sourced through Jaco.

Specification-aware quoting

Provide the AMS, ASTM, QQ, MIL or OEM specification and temper so the sales team can confirm the corresponding grade and documentation.

Program support

Jaco serves commercial aviation, defense, space and MRO requirements, including time-sensitive material needs.

Technical guidance

Aerospace alloys and specifications explained

Common sourcing questions about alloy selection, tempers, specifications and certification documentation.

Which aerospace copper alloys does Jaco Aerospace supply?

The aerospace range includes ToughMet 3 C72900, beryllium copper C17200, C17510 and C17300, wrought and cast aluminum bronze, wrought and cast nickel aluminum bronze, high-tensile brass, sintered bronze, phosphor bronze, copper-silicon grades, copper-nickel-silicon grades, free-machining brass and naval brass.

What is the difference between AMS 4533, AMS 4534 and AMS 4535?

These specifications cover C17200 beryllium copper bar or rod in different conditions. AMS 4533 and AMS 4535 are associated with the precipitation-hardened AT (TF00) condition, while AMS 4534 covers the cold-worked and precipitation-hardened HT (TH04) condition. Confirm the required form, temper and governing revision before ordering.

What is ToughMet 3 and where is it used?

ToughMet 3 is a UNS C72900 spinodal copper-nickel-tin alloy. Its combination of strength, wear resistance and galling resistance makes it suitable for bushings, bearings, pins and actuator components.

Should I specify wrought C63000 or cast C95500 nickel aluminum bronze?

C63000 is a wrought grade commonly selected for bar, rod and tube where consistent mechanical properties and dimensional control are important. C95500 is a cast grade used for larger or more complex shapes such as bearing blocks and housings. The drawing and governing specification should determine the required form.

Can certification documentation be supplied?

Material ordered to a specification can be supplied with the documentation required by the purchase order, subject to the quoted source and requirements. Include the governing specification, revision and customer or OEM flow-downs with the request.

Can Jaco source materials for adjacent markets?

Yes. The listed range includes material entries for marine and defense, oilfield, connector rod and wire, general ferrous and non-ferrous requirements, and engineering polymers such as PEEK, Vespel and Duratron.

Request pricing and availability

Send your alloy, specification, form, size and quantity to Jaco Aerospace

For an accurate quote, include the governing specification and revision, required temper, product form, dimensions, quantity, need-by date and any certification or OEM flow-down requirements. The Jaco contact page will route your request to the appropriate team.
