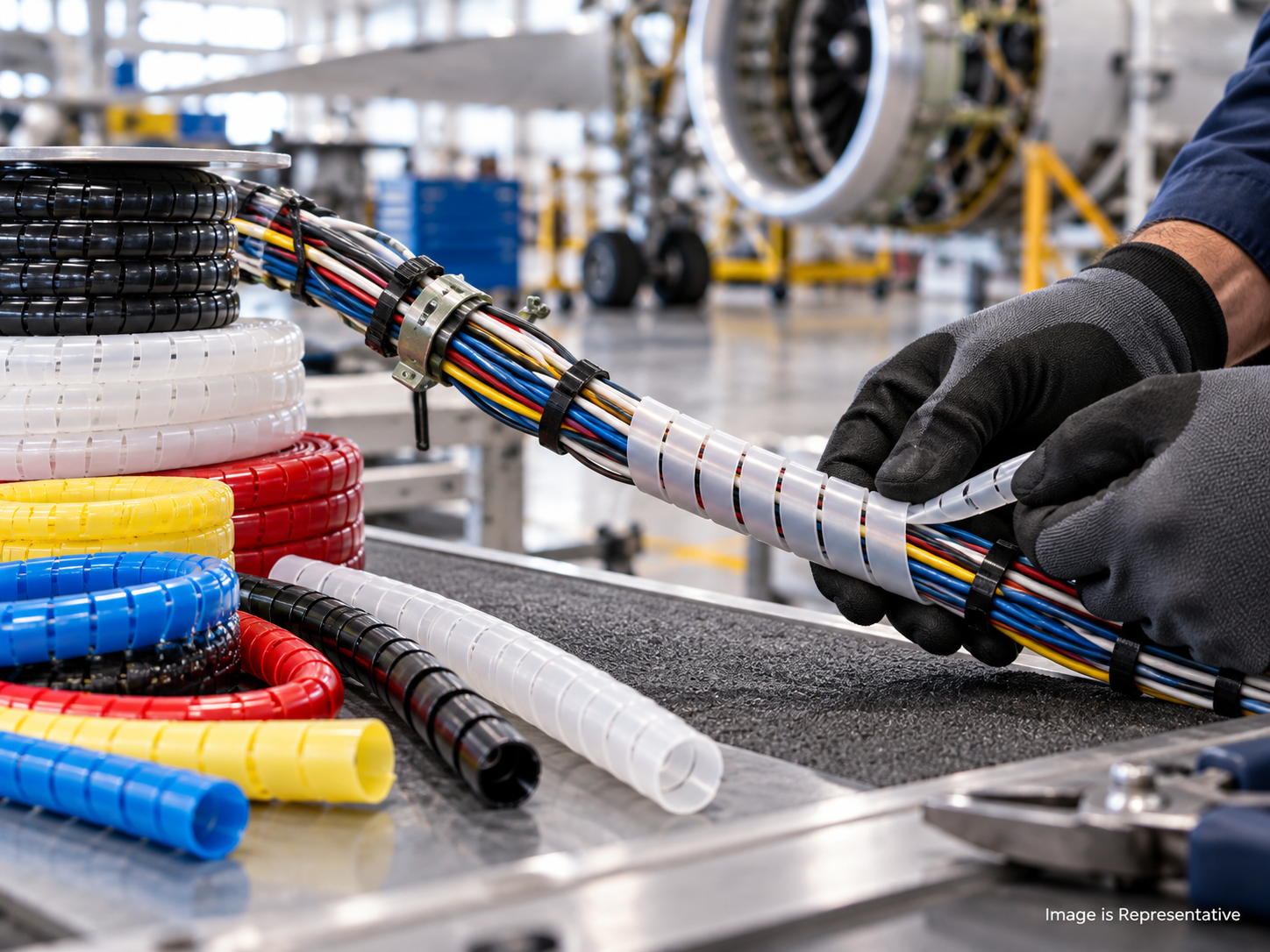

Spirally Cut Tubing Aircraft Tubing, Teflon Tubing, Spiral Tubing, MRO Tubing

Heli-Tube® Spirally Cut Tubing: TFE NON-FLAMMABLE

Aircraft Tubing - SpiralMIL Specs & Approvals: AMS 365 1C, AMS 3653C, AMS 3654, AMS 3655, ASTM D3295, MIL T-47287A, TYPE 1, AS 1294
TFE is suitable for the widest operating temperature range of any material and can be used from -450° F to +500° F. Chemically inert and non-flammable, it is also available in black and a wide selection of colors.










Max-Min Oper Temp
Abrasion Resistence
Specific Gravity D792-66
Effect of Solvents
Effect of Acids
Effect of Alkalies
Water Absorption % D-570
500°F
-450°F
7
2.1
None
None
None
0.05
260°C
-268°C
Size
Part No.
Outside Diameter O.D.
Nominal Dimensions Wall
Inside Diameter I.D.
Pitch
Maximum Bundle Range Inches
Weight Lbs/M Ft.
1/16"
HT 1/16T
0.062
0.016
0.03
0.062
1/32 to 1/8
4.2
1/8”
HT 1/8T1
0.125
0.03
0.065
0.187
1/16 to 1/2
9.4
1/8”
HT 1/8T2-Thin Wall
0.125
0.02
0.085
0.187
1/16 to 1/2
7.4
3/16"
HT 3/16T
0.187
0.03
0.127
0.25
1/8 to 1 1/2
15.2
1/4”
HT 1/4T
0.25
0.03
0.187
0.375
3/16 to 2
20.7
3/8”
HT 3/8T
0.375
0.03
0.312
0.438
5/16 to 2 1/2
36.5
1/2"
HT 1/2T
0.5
0.03
0.438
0.5
3/8 to 3
50.5
5/8”
HT 5/8T
0.625
0.03
0.565
0.625
5/8 to 3 1/2
65.5
3/4”
HT 3/4T
0.75
0.032
0.686
0.75
1/2 to 4
81.3
1”
HT 1T
1
0.04
0.92
1
3/4 to 5
175



Spirally Cut Tubing: PolyethyleneHeli-Tube® Spirally Cut Tubing: Polyethylene

Polyethylene is ideal for general applications, this low-cost material is highly abrasion resistant and is not affected by most solvents. Also available in Ultraviolet-Resistant Black (for outdoor use), and many colors.

Properties of Polyethylene, Fed Spec. LP390, MIL I-631D, MIL P-21922A


Max-Min Oper Temp
Abrasion Resistence
Specific Gravity D792-66
Effect of Solvents
Effect of Acids
Effect of Alkalies
Water Absorption % D-570
190°F
-76°F
22
0.92
None bellow
122°F
None
None
0.014
88°C
-60°C
50°C
Size
Part No.
Outside Diameter O.D.
Nominal Dimensions Wall
Inside Diameter I.D.
Pitch
Maximum Bundle Range Inches
Weight Lbs/M Ft.
1/8"
HT 1/8C
0.125
0.032
0.061
0.187
1/16 to 1/2
4
3/16"
HT 3/16C
0.187
0.03
0.127
0.25
1/8 to 1 1/2
6
1/4”
HT 1/4C2-Thin Wall
0.25
0.035
0.18
0.375
3/16 to 2
9
1/4”
HT 1/4C
0.25
0.045
0.16
0.375
5/16 to 3
12
3/8”
HT 3/8C
0.375
0.052
0.271
0.438
3/16 to 2
22
1/2”
HT 1/2C2-Thin Wall
0.5
0.04
0.042
0.563
3/8 to 4
26
1/2"
HT 1/2C
0.5
0.062
0.375
0.563
3/8 to 4
35
5/8”
HT 5/8C
0.625
0.062
0.5
0.625
1/2 to 4 1/2
44
3/4”
HT 3/4C
0.75
0.065
0.62
0.75
3/4 to 5
58
1”
HT 1C
1
0.08
0.84
1
1 to 7
105
1 1/4”
HT 1-1/4C
1.25
0.09
1.07
1.25
1 1/4 to 8
190
1 1/4”
HT 1-1/2C
1.5
0.1
1.3
1.5
1 1/2 to 10
178



Heli-Tube® Spirally Cut Tubing: Fire Resistant Polyethylene

Fire-Resistant Black Polyethylene

Max-Min Oper Temp
Abrasion Resistence
Specific Gravity D792-66
Effect of Solvents
Effect of Acids Effect of Alkalies Water Absorption % D-570
176°F
-4°F
27
1.29
None
bellow
122°F
None
None
0.02
88°C
-20°C
50°C
Size Part No.
Outside Diameter O.D.
Nominal Dimensions Wall
Inside Diameter I.D.
Pitch
Maximum Bundle Range Inches
Weight Lbs/M Ft.
1/8"
HT 1/8FR-B
0.125
0.032
0.061
0.187
1/16 to 1/2
6
1/4”
HT 1/4FR-B
0.25
0.045
0.16
0.375
3/16 to 2
17
3/8”
HT 3/8FR-B
0.375
0.052
0.271
0.438
5/16 to 3
29
1/2”
HT 1/2FR-B
0.5
0.062
0.375
0.563
3/8 to 4
52
3/4”
HT 3/4FR-B
0.75
0.065
0.62
0.75
3/4 to 4 1/2
85
1"
HT 1FR
1
0.08
0.84
1
1 to 7
156



Ultraviolet-Resistant Black Polyethylene

Max-Min Oper Temp

Abrasion Resistence

Specific Gravity D792-66

Effect of Solvents

Effect of Acids

Effect of Alkalies

Water Absorption % D-570

190°F

-76°F

20

0.93

None
bellow
122°F

None

None

0.03

88°C

-60°C

50°C

Size

Part No.

Outside Diameter O.D.

Nominal Dimensions Wall

Inside Diameter I.D.

Pitch

Maximum Bundle Range Inches

Weight Lbs/M Ft.

1/8"

HT 1/8UR

0.125

0.032

0.061

0.187

1/16 to 1/2

4

3/16"

HT 3/16UR

0.187

0.03

0.127

0.25

1/8 to 1 1/3

6

1/4”

HT 1/4UR2-Thin Wall

0.25

0.035

0.18

0.375

3/16 to 2

9

1/4”

HT 1/4UR

0.25

0.045

0.16

0.375

3/16 to 2

12

3/8”

HT 3/8UR

0.375

0.052

0.271

0.438

5/16 to 3

22

1/2”

HT 1/2UR2-Thin Wall

0.5

0.04

0.42

0.563

3/8 to 4

26

1/2"

HT 1/2UR

0.5

0.062

0.375

0.563

3/8 to 4

35

5/8”

HT 5/8UR

0.625

0.062

0.5

0.625

1/2 to 4 1/2

44

3/4”

HT 3/4UR

0.75

0.065

0.62

0.75

3/4 to 5

58

1”

HT 1UR

1

0.08

0.84

1

1 to 7

105

1 1/4”

HT 1-1/4UR

1.25

0.09

1.07

1.25

1 1/4 to 8

190

1 1/2”

HT 1-1/2UR

1.5

0.1

1.3

1.5

1 1/2 to 10

178



Heli-Tube® Spirally Cut Tubing: Fire Resistant Polyethylene

Fire Resistant Polyethylene is suitable for applications requiring a self-extinguishing material that costs less than TFE. Flammability 94V-1

Fire-Resistant White Polyethylene



Max-Min Oper Temp
Abrasion Resistence
Specific Gravity D792-66
Effect of Solvents
Effect of Acids Effect of Alkalies Water Absorption % D-570
176°F
-4°F
27
1.29
None
bellow
122°F
None
None
0.02
88°C
-20°C
50°C
Size
Part No.
Outside Diameter O.D.
Nominal Dimensions Wall
Inside Diameter I.D.
Pitch
Maximum Bundle Range Inches
Weight Lbs/M Ft.
1/8"
HT 1/8FR
0.125
0.032
0.061
0.187
1/16 to 1/2
6
3/16"
HT 3/16FR
0.187
0.04
0.107
0.25
1/8 to 1 1/2
8
1/4”
HT 1/4FR
0.25
0.045
0.107
0.375
3/16 to 2
17
1/4”
HT 3/8FR
0.375
0.052
0.16
0.438
5/16 to 3
29
1/2”
HT 1/2FR
0.5
0.062
0.563
0.563
3/8 to 4
52
5/8”
HT 5/8FR
0.625
0.062
0.625
0.625
1/2 to 4 1/2
67
3/4"
HT 3/4FR
0.75
0.065
0.75
0.75
3/4 to 5
85
1"
HT 1FR
1
0.08
1
1
1 to 7
156



Heli-Tube® Spirally Cut Tubing: Nylon

Mil Specs & Approvals: MIL M-20693B, Type I, MIL M-22096A, LP 410A, MILM 19098, MIL M 206393A, Type II, MIL M-22096 LP410A, MIL T-47287A, Type II, AS 1294
Nylon is suitable for self-extinguishing and does not produce any toxic or irritating byproducts, even when exposed to an open flame or excessive operating temperatures. Recommended for use in enclosed environments where the possibility of fire exists, this material is also lightweight, highly abrasion-resistant and operates over a wide temperature range. Also available in Black for outdoor use.



Nylon

Max-Min Oper Temp
Abrasion Resistence
Specific Gravity D792-66
Effect of Solvents
Effect of Acids Effect of Alkalies Water Absorption % D-570
250°F
-40°F
6-8
1.14
None
Satisfactory except for strong acids
None
1.5
121°C
-40°C
Size
Part No.
Outside Diameter O.D.
Nominal Dimensions Wall
Inside Diameter I.D.
Pitch
Maximum Bundle Range Inches
Weight Lbs/M Ft.
1/8"
HT 1/8N
0.125
0.015
0.095
0.187
1/16 to 1/2
3
3/16"
HT 3/16N
0.187
0.02
0.147
0.25
1/8 to 1 1/2
7
1/4”
HT 1/4N
0.25
0.025
0.2
0.375
3/16 to 2
9
3/8
HT 3/8N
0.375
0.035
0.305
0.438
5/16 to 3
18
1/2”
HT 1/2N
0.5
0.035
0.43
0.5
3/8 to 4
25
5/8”
HT 5/8N
0.625
0.032
0.561
0.625
1/2 to 4 1/2
32
3/4"
HT 3/4N
0.75
0.032
0.686
0.75
1/2 to 5
38
1"
HT 1N
1
0.032
0.936
1
1 to 7
50



Black Nylon

Max-Min Oper Temp
Abrasion Resistence
Specific Gravity D792-66
Effect of Solvents
Effect of Acids Effect of Alkalies Water Absorption % D-570
250°F
-40°F
6-8
1.14
None
Satisfactory except for strong acids
None
1.5
121°C
-40°C
Size
Part No.
Outside Diameter O.D.
Nominal Dimensions Wall
Inside Diameter I.D.
Pitch
Maximum Bundle Range Inches
Weight Lbs/M Ft.
1/8"
HT 1/8N-B
0.125
0.015
0.095
0.187
1/16 to 1/2
3
3/16"
HT 3/16N-B
0.187
0.02
0.147
0.25
1/8 to 1 1/2
7
1/4”
HT 1/4N-B
0.25
0.025
0.2
0.375
3/16 to 2
9
3/8
HT 3/8N-B
0.375
0.035
0.305
0.438
5/16 to 3
18
1/2”
HT 1/2N-B
0.5
0.035
0.43
0.5
3/8 to 4
25
5/8”
HT 5/8N-B
0.625
0.032
0.561
0.625
1/2 to 4 1/2
32
3/4"
HT 3/4N-B
0.75
0.032
0.686
0.75
1/2 to 5
38
1"
HT 1N-B
1
0.032
0.936
1
1 to 7
50


Colors
     1/8" Blue, Brown, Green, Grey, Orange, Orange Day-Glow, Purple, Red, White, Yellow
3/4"
Blue, Brown, Green, Grey, Orange, Orange Day-Glow, Purple, Red, White, Yellow, Pink Day- Glow
3/8
Blue, Green, Orange, Orange Day-Glow, Phosphorescent, Pink, Pink Day-Glow, Purple, Red, White, Yellow, Yellow Day-Glow
1/2”
Blue, Brown, Green, Green Day-Glow, Grey, Orange, Orange Day-Glow, Red, White, Yellow
3/4"
Blue, Green, Orange Day-Glow, Purple, Red, White, Yellow
1"
Blue, Green, Orange Day-Glow, Red, White, Yellow
