Millions of Consumable Products for the Aerospace Industry

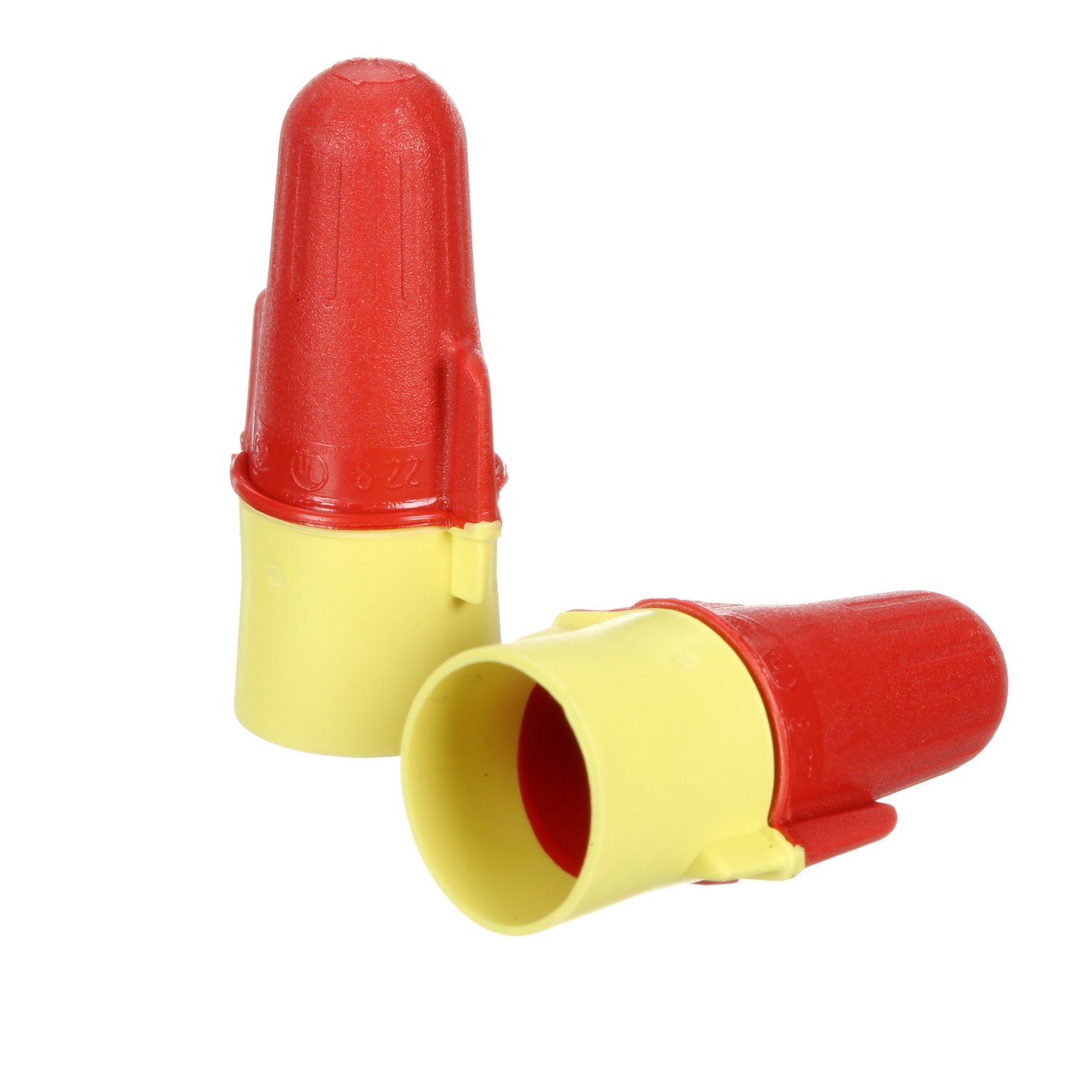

3M Performance Plus Wire Connector R/Y+POUCH, 100 per pouch, 1000/Case

Part Number: 10054007431548 View more details
7100127164 - 3M Performance Plus Wire Connector R/Y+POUCH, 100 per pouch, 1000/Case

Product Specifications

Unit of Measure
EA
Sold As
Bag
Minimum Order Qty
1000 EA
Incremental Order Qty
1000 EA
Package Quantity
100 Each per Bag
Stock Type
Standard
Catalog #
R/Y+POUCH
Manufacturer ID
7100127164
UPC
10054007431548
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Dual color coded: one connector does the job of two traditional connectors in the majority of applications
Flexible spring expands for greater wire range and reuse
Strong bite for a secure, reliable connection
UL Listed
3M Performance Plus Wire Connectors R/Y+ are constructed to work with a wire range between 2 #18 to 2 #8 AWG. The connectors feature a uniquely flexible spring that provides ample expansion capacity and a strong, reliable grip. Their expanded cable range allows three Performance Plus connectors to replace eight standard connectors, improving convenience at work by using fewer parts for a larger number of wire combinations. In addition, the flexible skirt helps reduce copper exposure for enhanced reliability, and the connectors are UL Listed for 600 V on copper wire.3M Performance Plus Wire Connectors R/Y+, along with the other products in the product suite, help electricians make clean, reliable connections quickly and efficiently. The connectors simplify splicing by providing a solution that helps provide a secure termination without stripping or twisting wires. To meet your specific installation requirements, they are available in five color and wire range options, including O/B+ (orange/blue) 2 #22 to 3 #12 AWG; T/Y+ (tan/yellow) 2 #22 to 3 #12 AWG; R/Y+ (red/yellow) 2 #18 to 2 #8 AWG; T/R+ (tan/red) 2 #18 to 5 #12 AWG; and B/G+ (blue/gray) 4 #14 to 6 #10 AWG. Discover the performance capabilities of 3M Performance Plus Wire Connectors on your next application.
