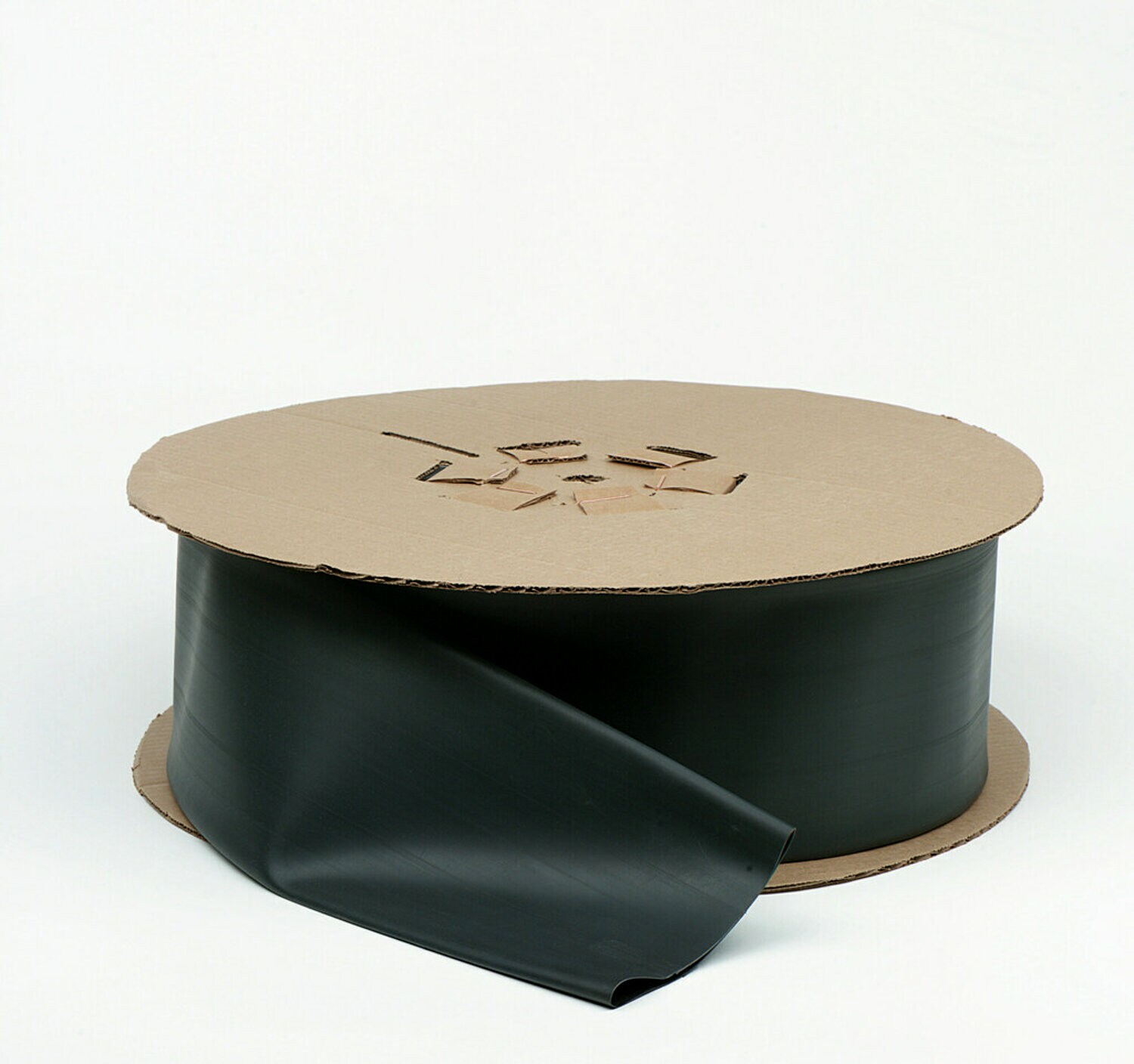

3M Heat Shrink Thin-Wall Tubing FP-301VW-3/64-Black-1000`: 1000 ft spool length, 3 spools/case

Part Number: 00638060290217 View more details
7100199765 - 3M Heat Shrink Thin-Wall Tubing FP-301VW-3/64-Black-1000`: 1000 ft spool length, 3 spools/case

Product Specifications

Unit of Measure
RO
Sold As
Roll
Minimum Order Qty
3 RO
Incremental Order Qty
3 RO
Stock Type
Make To Order
Shelf Life
120 Months
Catalog #
VW0.047BK1K'
Manufacturer ID
7100199765
UPC
00638060290217
ECCN
EAR99
Manufacturer
3M

Details

Highlights

A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
3M Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.3M Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.
