Part Number: 512AF-1/4X1
TAPE SILICONE
Unit of Measure: EA
Minimum Order Qty: 1
Manufacturer:
Usually Ships: Request
View TDS/SDS File
Features and Specifications

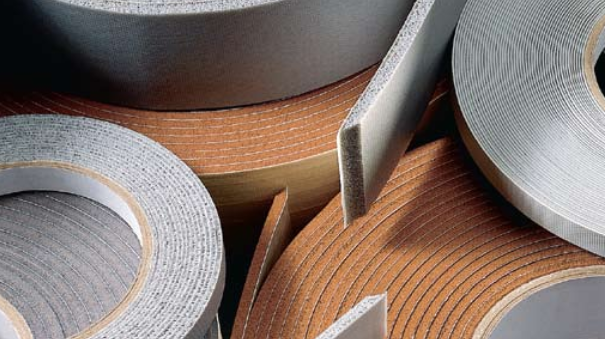

TAPE SILICONE Strip-N-Stick Pressure Sensitive Adhesive Tapes
Detail of 300AR reinforced silicone sponge
Compressible silicone sponge
Dimensionally stable fiberglass
Silicone Rubber
Features/Benefits
• Instant Gasket
• Easy to Apply
• Compressible and Flexible
• Conforms to Irregular Shapes
• Eliminates Die Cutting
• High Adhesion to Stainless Steel, Plastics, Aluminum and Composites
• Low Compression Set
• Available in Closed-Cell Sponge, Low Density Foam or Solid Rubber
• Temperature Ranges SNS Products With:
Acrylic Adhesives : -29°C to +177°C
Silicone Adhesives : -73°C to +260°C
For extreme temperature applications, Strip-N-Stick® silicone rubber tapes outperform all other elastomer tapes in service life, weatherability, compression set resistance and electrical resistivity.
These pressure-sensitive Strip-N-Stick® tapes are available in a variety of widths and thicknesses for use in gasketing, cushioning, thermal insulation and vibration dampening applications. Other uses include noise reduction, clamping of hot parts and electrolysis reduction between dissimilar metals.
Strip-N-Stick® tapes, which provide all the benefits of silicone rubber in an easy-to-apply, pressure-sensitive tape form, are available in standard stock widths or can be slit to order.
100Sis a silicone sponge with a high temperature silicone adhesive.
200A is a silicone sponge with an aggressive acrylic adhesive.
300AR is a reinforced silicone sponge with an aggressive acrylic adhesive. Its unique construction provides the compressibility of sponge and the dimensional stability of fiberglass reinforcement. Stretch is eliminated, which contributes to the consistent size and shape of cut parts and inhibits outward extrusion under high pressure. It further permits close tolerance slitting.
440S combines a 30 durometer solid rubber with a high temperature silicone adhesive.
440A combines a 30 durometer solid rubber with an acrylic adhesive. It provides for high elongation and good conformability, and is an excellent gasketing material.
512AF uses F-12 fireblocking foam along with a film-supported acrylic pressure-sensitive adhesive.
Specifications: ABS 5006 , REV.3, DAN 444, DAN 1226
