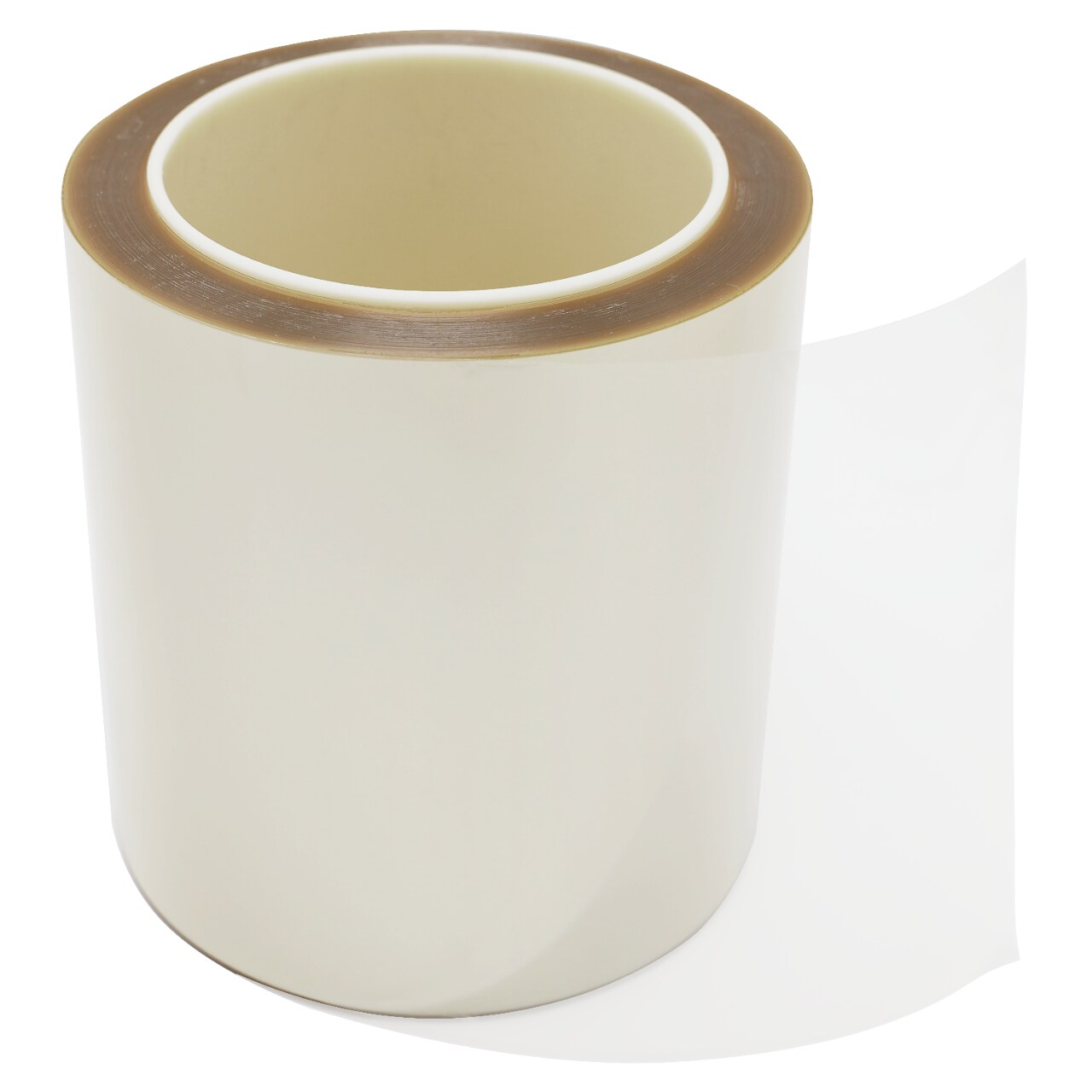

3M UV Activated Film 82100, 200 mm x 100 m, 1 Roll/Case

Part Number: 06936177936030 View more details
7100394733 - 3M UV Activated Film 82100, 200 mm x 100 m, 1 Roll/Case

Product Specifications

Size
200 mm x 100 m
Unit of Measure
RO
Sold As
Case
Minimum Order Qty
1 RO
Incremental Order Qty
1 RO
Stock Type
Standard
Shelf Life
547 Days
New Product Indicator
X
Catalog #
82100
Manufacturer ID
7100394733
UPC
06936177936030
ECCN
EAR99
Manufacturer
3M

Details

Highlights

BOND SMALL COMPONENTS: Ideal for applications such as laptop track pads, fingerprint sensors, smartphone cameras, automotive displays, enclosure bonding, heat-sensitive components, and more
BONDING, REIMAGINED: Stronger bonds than tapes
easier to apply than liquid adhesives
and activated with light, rather than heat
CURING TIME: Achieves green strength within an hour and full bond at room temperature within 48 hours following UV activation
DUAL LINERED CONFIGURATION: Delivered on a clear, 38 µm PET front liner and clear, 50 µm anti-static PET back liner
FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for thin precision bonding
FILM CARRIER: A polyester film carrier makes this tape easier to handle during slitting and die cutting
GOOD AESTHETICS: Bonds with very low shrinkage and with good bond line visual appearance
THICKNESS: This film has a thickness of 100 µm
VARIOUS SUBSTRATES: Creates excellent bond strength on most medium and high surface energy materials
3M UV Activated Film 82100 is a UV-activated and curable film with semi-structural strength but handles like a pressure-sensitive adhesive (PSA). Delivered between two polyester silicone release liners, this clear, slightly yellow film creates precise bonds with very little shrinkage while ensuring good bond line visual appearance. It also makes use of a polyester film carrier, which helps ensure that the tape is easier to handle during slitting and die cutting. With the added benefits of good shear strength, high modulus, and a thin profile, 3M UV Activated Film 82100 is a robust alternative to traditional bonding methods.3M UV Activated Films and Tapes combines the benefits of three different bonding technologies into one powerful adhesive. They provide stronger bonds than standard tapes; they’re easier to apply than liquid adhesives; and they activate with light, unlike heat-activated films. Prior to UV activation, these films and tapes are stable and tacky at room temperature and can be easily converted into precision die-cut parts. Once activated, bond strength develops at room temperature, achieving green strength within an hour and semi-structural bond strength within 48 hours. These properties make them an ideal choice for bonding small components where high temperatures and pressures are a concern. Specifically, 3M UV Activated Films and Tapes are an excellent option for applications such as laptop track pads, fingerprint sensors, smartphone front cameras, automotive displays, enclosure bonding, heat-sensitive components, and more.
