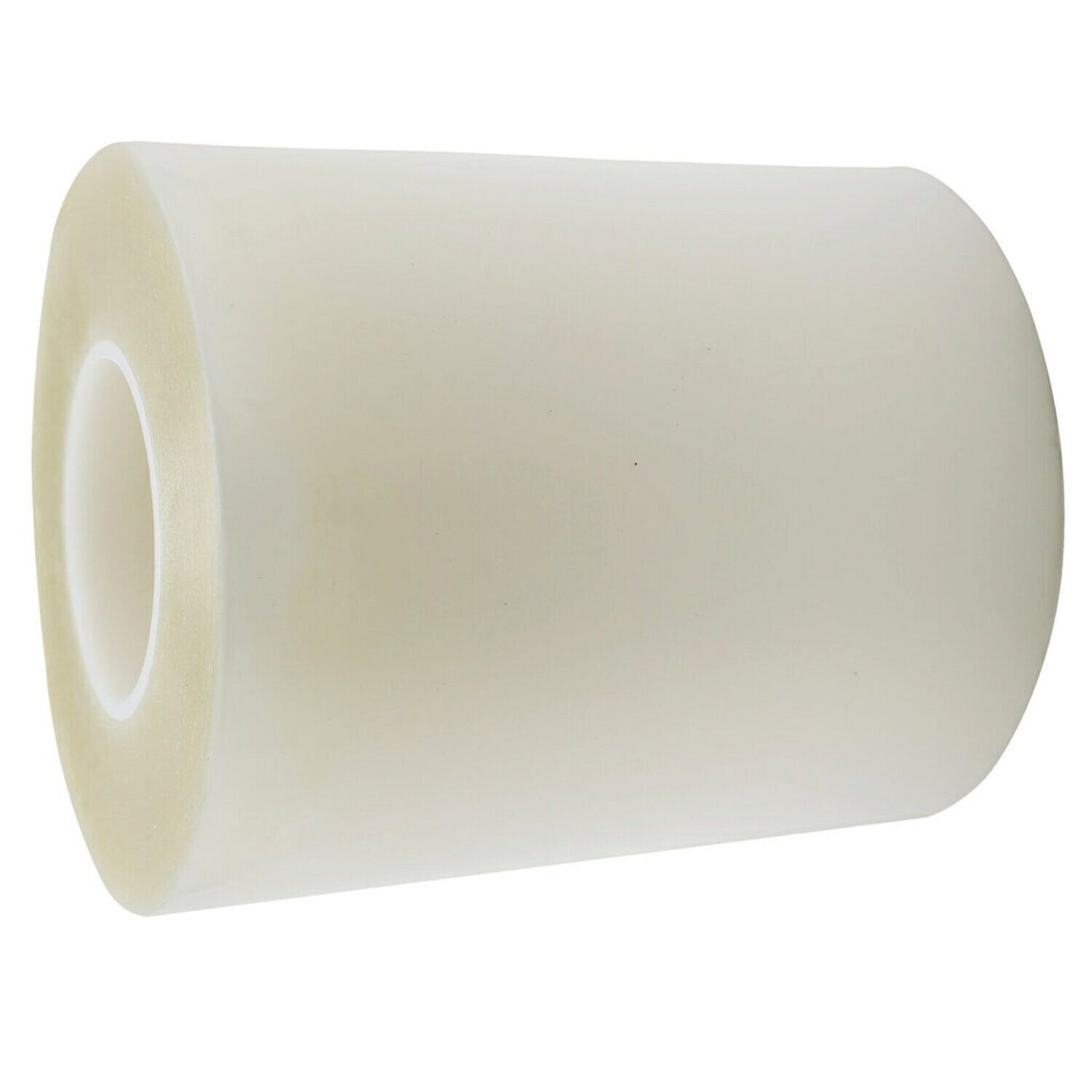

3M UV Activated Tape 30030, 584 mm x 66 m, 1 Roll/Case

Part Number: 06936177936146 View more details
7100412439 - 3M UV Activated Tape 30030, 584 mm x 66 m, 1 Roll/Case

Product Specifications

Size
584 mm x 66 m
Unit of Measure
RO
Sold As
Roll
Minimum Order Qty
1 RO
Incremental Order Qty
1 RO
Stock Type
Make To Order
Shelf Life
730 Days
New Product Indicator
X
Catalog #
30030
Manufacturer ID
7100412439
UPC
06936177936146
ECCN
EAR99
Manufacturer
3M

Details

Highlights

BOND SMALL COMPONENTS: Ideal for applications involving electronic components like displays, frames, speakers, and wearables
BONDING, REIMAGINED: Offers easier application compared to liquid adhesives while activating with light, rather than heat
CURING TIME: Achieves immediate green strength and full bond strength at room temperature within 24 hours following UV activation
ENHANCED PERFORMANCE: Delivers good impact resistance and high bond strength with good reworkability
FAMILIAR FEEL: Processes and performs like a pressure-sensitive adhesive (PSA) before UV activation, including the ability to die cut for precision bonding
MIDDLE CARRIER FILM: Features a middle carrier film for easy converting and application before curing
THICKNESS: This tape has a thickness of 300 µm
VARIOUS SUBSTRATES: Bonds opaque and transparent substrates, creating excellent bond strength on most medium and high surface energy materials
3M UV Activated Tape 30030 is a translucent, UV-curable, high-strength bonding tape that handles like a pressure-sensitive adhesive (PSA) before activation. Featuring a middle carrier film for easy converting and application before curing, this tape provides good impact resistance to meet industry drop test requirements and offers high bond strength while ensuring good removability. With the added benefits of initial tackiness and very low shrinkage, 3M UV Activated Tape 30030 is an ideal bonding option for opaque and transparent substrates, as well as electronic components like displays, frames, speakers, and wearables.3M UV Activated Films and Tapes combines the benefits of three different bonding technologies into one powerful adhesive. They provide stronger bonds than standard tapes; they’re easier to apply than liquid adhesives; and they activate with light, unlike heat-activated films. Prior to UV activation, these films and tapes are stable and tacky at room temperature and can be easily converted into precision die-cut parts. Once activated, bond strength develops at room temperature, achieving immediate green strength and semi-structural bond strength within 24 hours. These properties make them an ideal choice for bonding small components where high temperatures and pressures are a concern. Specifically, 3M UV Activated Films and Tapes are an excellent option for applications such as laptop track pads, fingerprint sensors, smartphone front cameras, automotive displays, enclosure bonding, heat-sensitive components, and more.
