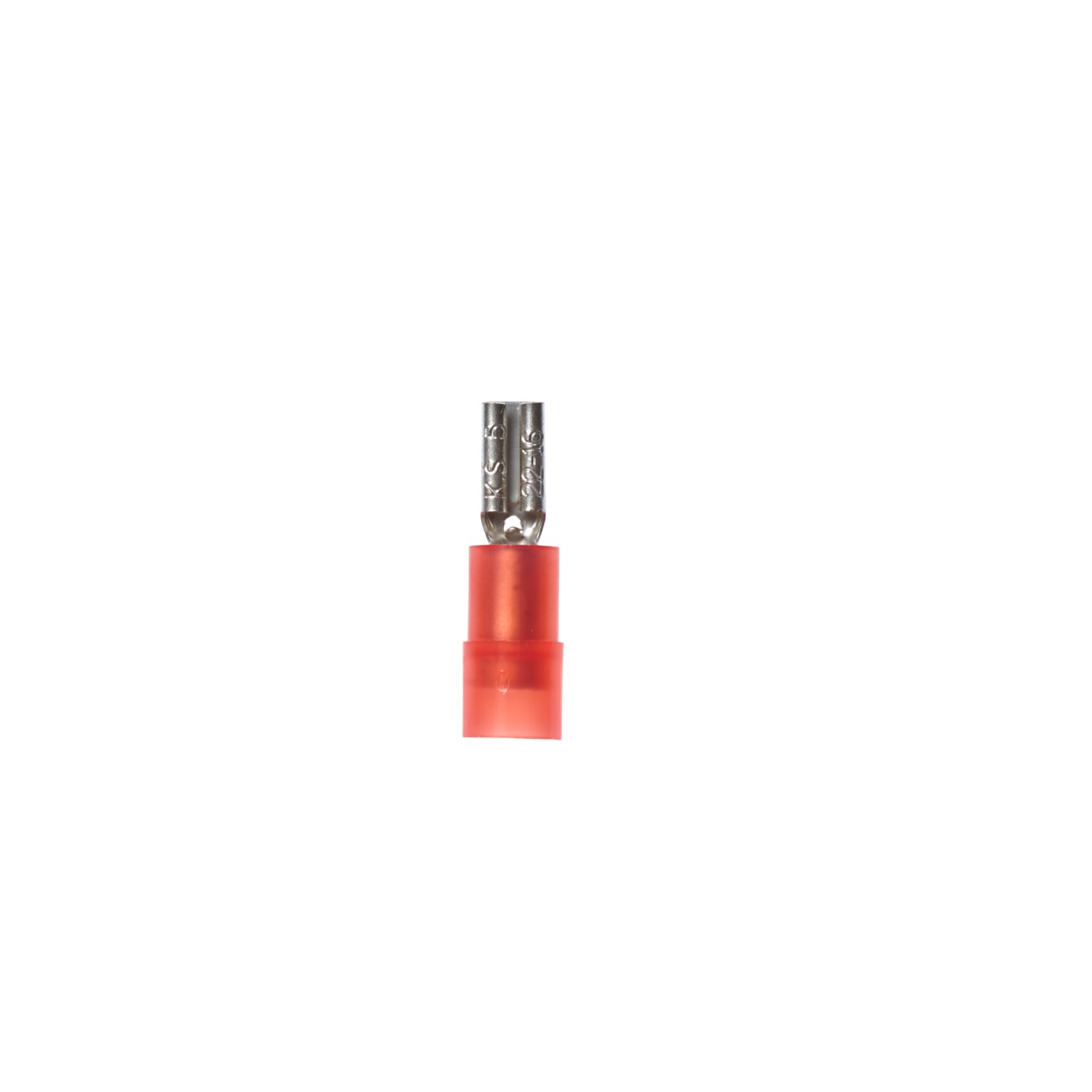

3M Female Disconnect, Nylon Insulated Butted Seam, 71F-110-20-NB-A, Max. Temp. -40 to 221 °F (-40 to 105 °C)

Part Number: 00051128574720 View more details
7100165139 - 3M Female Disconnect, Nylon Insulated Butted Seam, 71F-110-20-NB-A, Max. Temp. -40 to 221 °F (-40 to 105 °C)

Product Specifications

Unit of Measure
EA
Minimum Order Qty
1000 EA
Incremental Order Qty
1000 EA
Stock Type
Make To Order
Catalog #
71F-110-20-NB-A
Manufacturer ID
7100165139
UPC
00051128574720
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Allows for quick and easy disconnect of wires
Dents and rolled edges of this female disconnect terminal offer excellent holding force
Nylon-insulated, butted-seam barrel offers easy insertion of wires
3M Highland Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M Highland Nylon Fully Insulated Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The butted-seam barrel of this terminal provides electrical contact after crimping. The flared nylon sleeve is abrasion-resistant with a stepped design to ensure mistake-proof crimping. RoHS 2011/65/EU Compliant.
