Millions of Consumable Products for the Aerospace Industry

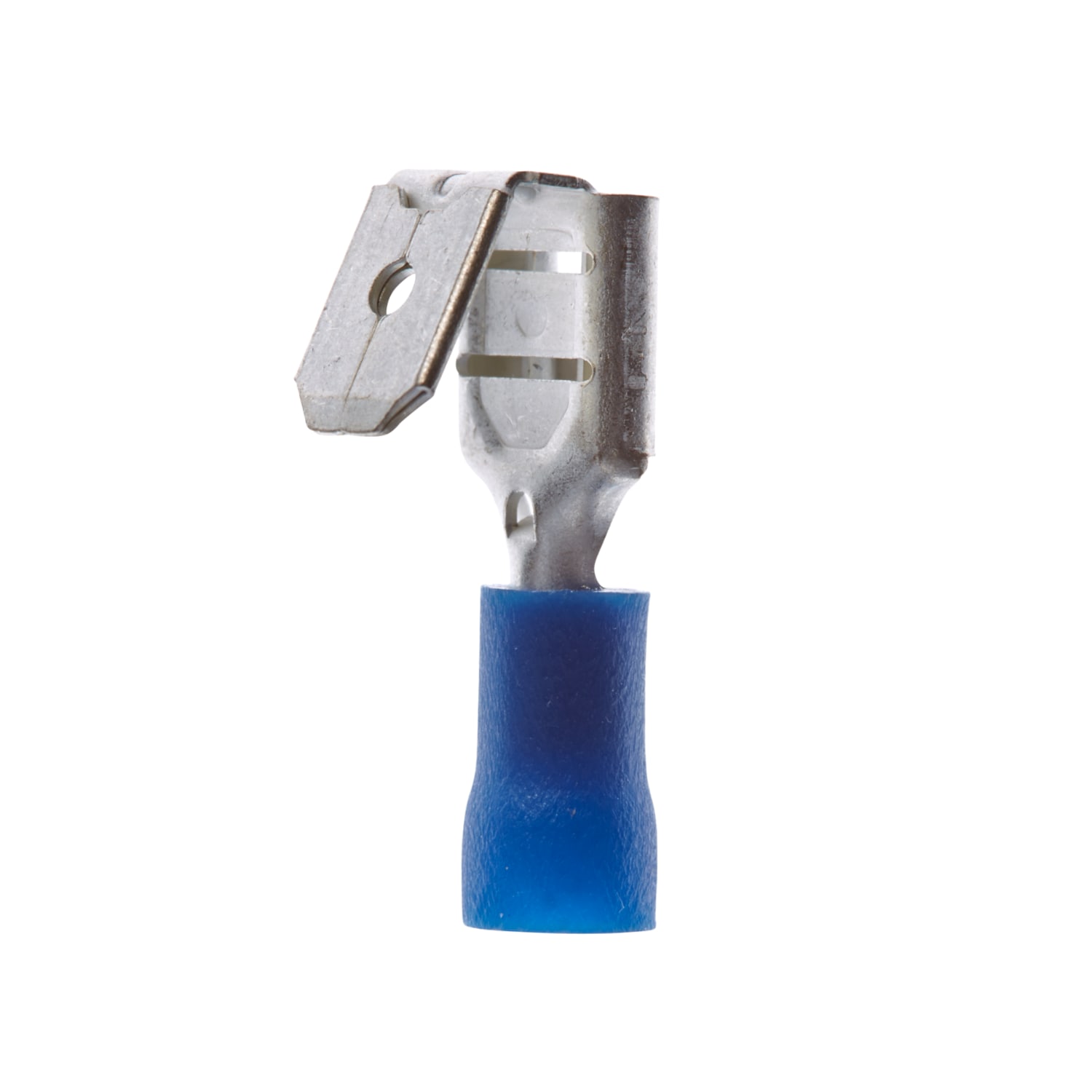

3M Scotchlok Multi-Stack Disconnect, Vinyl Insulated Butted Seam MVU14-250DMFK-A, 1000/Case

Part Number: 00051138980733 View more details
7100165167 - 3M Scotchlok Multi-Stack Disconnect, Vinyl Insulated Butted Seam MVU14-250DMFK-A, 1000/Case

Product Specifications

Unit of Measure
EA
Sold As
Case
Minimum Order Qty
1000 EA
Incremental Order Qty
1000 EA
Package Quantity
1000 Each per Case
Stock Type
Make To Order
Catalog #
MVU14-250DMFK-A
Manufacturer ID
7100165167
UPC
00051138980733
ECCN
EAR99
Manufacturer
3M

Details

Highlights

1000/case
Accommodates wire sizes 22 to 18 AWG
Allows for quick and easy disconnect of wires
Made of durable brass for good conductivity and has corrosion-resistant tin plating
Mates with 0.25-in wide male and female tab
Rated 600V for building wire and 1000V for signs, fixtures or luminaires
The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.3M Scotchlok Color-Coded Male-Female Disconnect Terminal provides permanent electrical and mechanical connection to a pre-stripped end of a stranded copper wire. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. The terminal withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
