Millions of Consumable Products for the Aerospace Industry

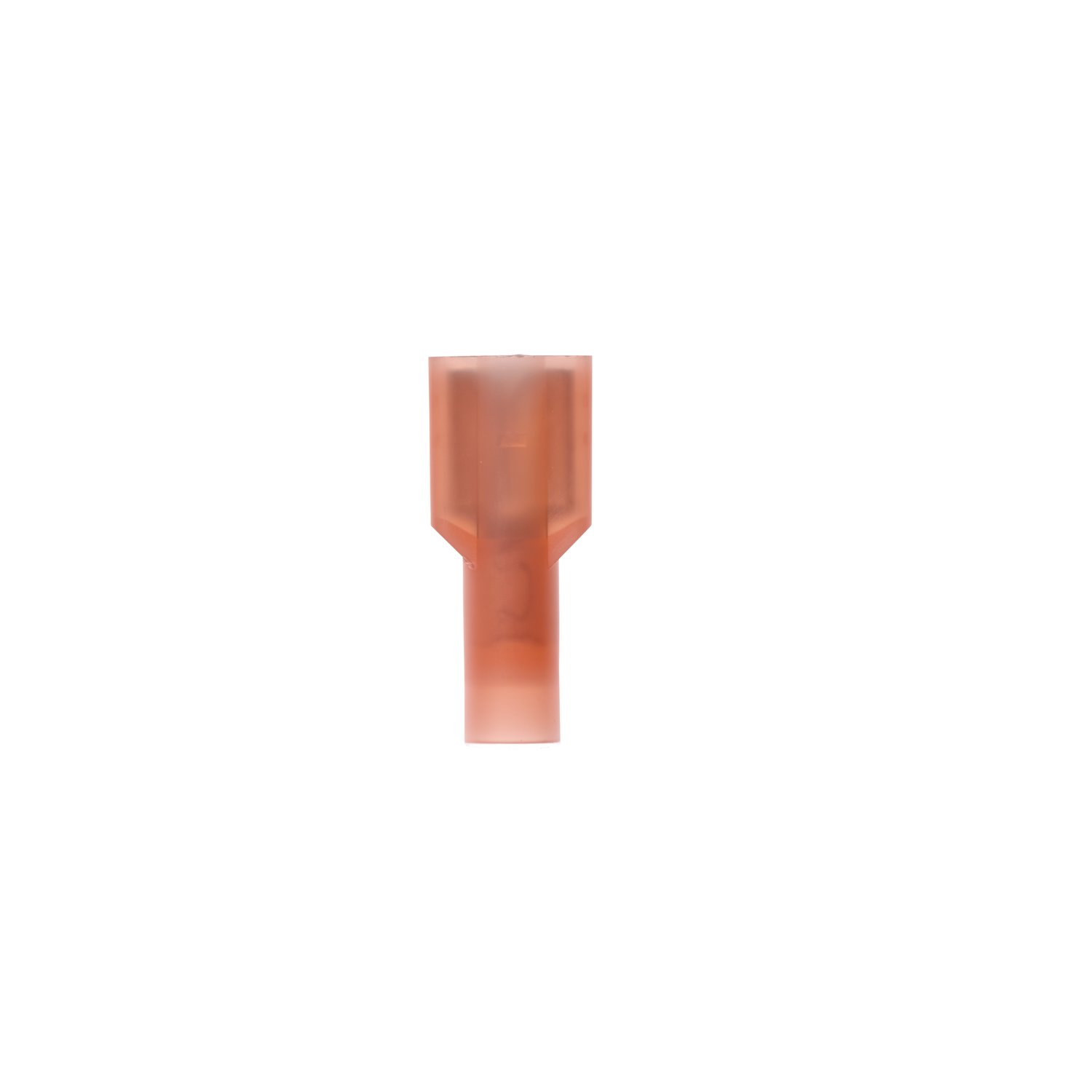

3M Scotchlok Female Disconnect Nylon Insulated, 100/bottle, MNI18-250DFIX, 500/Case

Part Number: 10051128589332 View more details
7100165291 - 3M Scotchlok Female Disconnect Nylon Insulated, 100/bottle, MNI18-250DFIX, 500/Case

Product Specifications

Size
100/bottle
Unit of Measure
EA
Sold As
Pack
Minimum Order Qty
500 EA
Incremental Order Qty
500 EA
Package Quantity
100 Each per Pack
Stock Type
Make To Order
Catalog #
MNI18-250DFIX
Manufacturer ID
7100165291
UPC
10051128589332
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Allows for quick and easy disconnect of wires
Dents and rolled edges of this female disconnect terminal offer excellent holding force
Made of durable brass for good conductivity and has corrosion-resistant tin plating
Mates with 0.25-in wide male tab
Nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires
Rated 600V for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Color-Coded Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This terminal has a butted seam with an interlocking barrel which provides electrical contact after crimping. It has an abrasion-resistant, fully insulated, flared nylon sleeve with a stepped design to ensure mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
