Millions of Consumable Products for the Aerospace Industry

3M Scotchlok Piggy-back Disconnect Male Female Vinyl Insulated, 100/bottle, MVU18-250DMFX-A, 500/Case

Part Number: 10051128588748 View more details

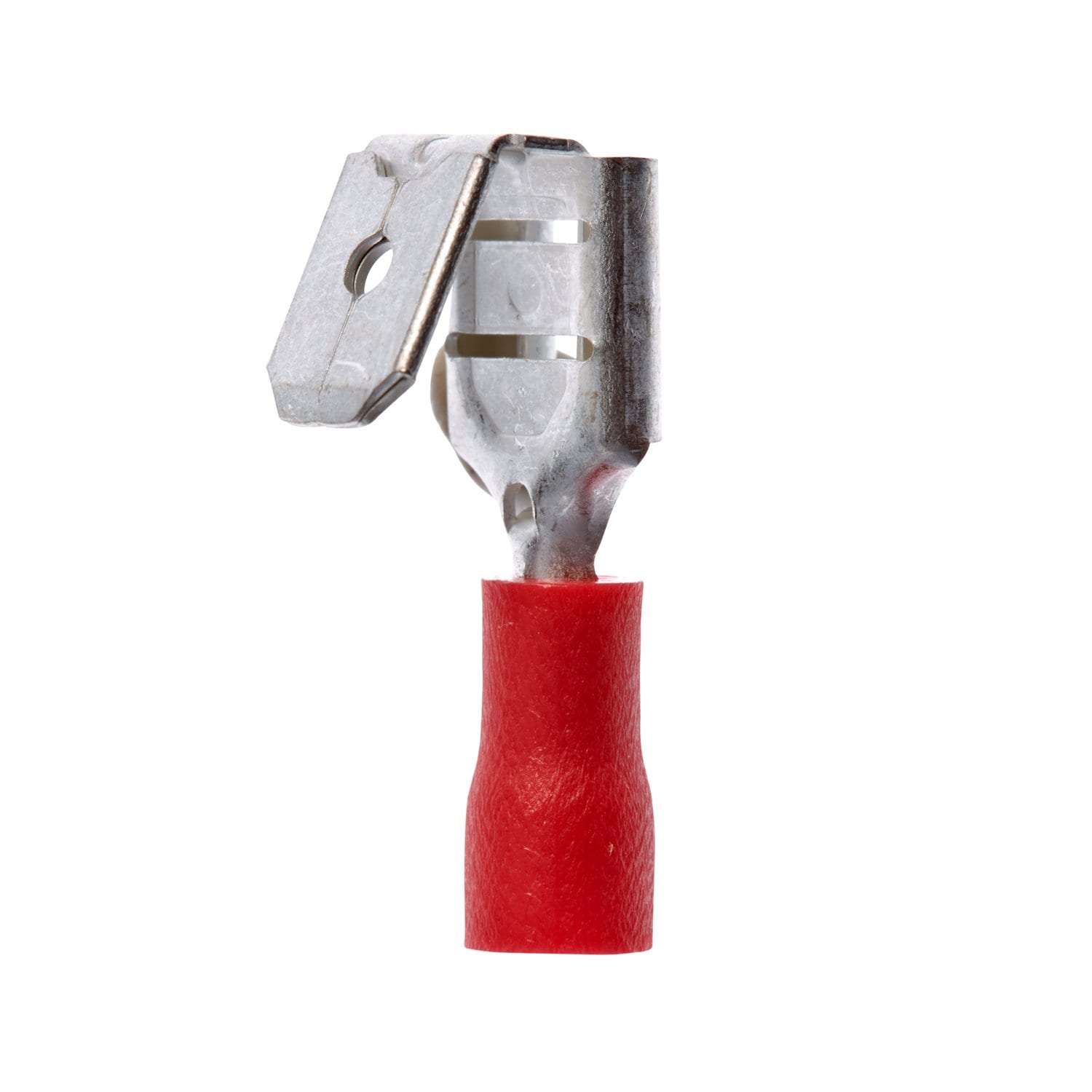

7100165280 - 3M Scotchlok Piggy-back Disconnect Male Female Vinyl Insulated, 100/bottle, MVU18-250DMFX-A, 500/Case

Product Specifications

Size
100/bottle
Unit of Measure
EA
Sold As
Pack
Minimum Order Qty
100 EA
Incremental Order Qty
500 EA
Package Quantity
100 Each per Pack
Stock Type
Make To Order
Catalog #
MVU18-250DMFX-A
Manufacturer ID
7100165280
UPC
10051128588748
ECCN
EAR99
Manufacturer
3M

Details

Highlights

1000/case
Accommodates wire sizes 22 to 18 AWG
Allows for quick and easy disconnect of wires
Made of durable brass for good conductivity and has corrosion-resistant tin plating
Mates with 0.25-in wide male and female tab
Rated 600V for building wire and 1000V for signs, fixtures or luminaires
The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.3M Scotchlok Color-Coded Male-Female Disconnect Terminal provides permanent electrical and mechanical connection to a pre-stripped end of a stranded copper wire. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. The terminal withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
