Millions of Consumable Products for the Aerospace Industry

3M Scotchlok Female Disconnect Nylon Insulated, 100/bottle, MNG14-180DFIX-A, 500/Case

Part Number: 00051128588697 View more details

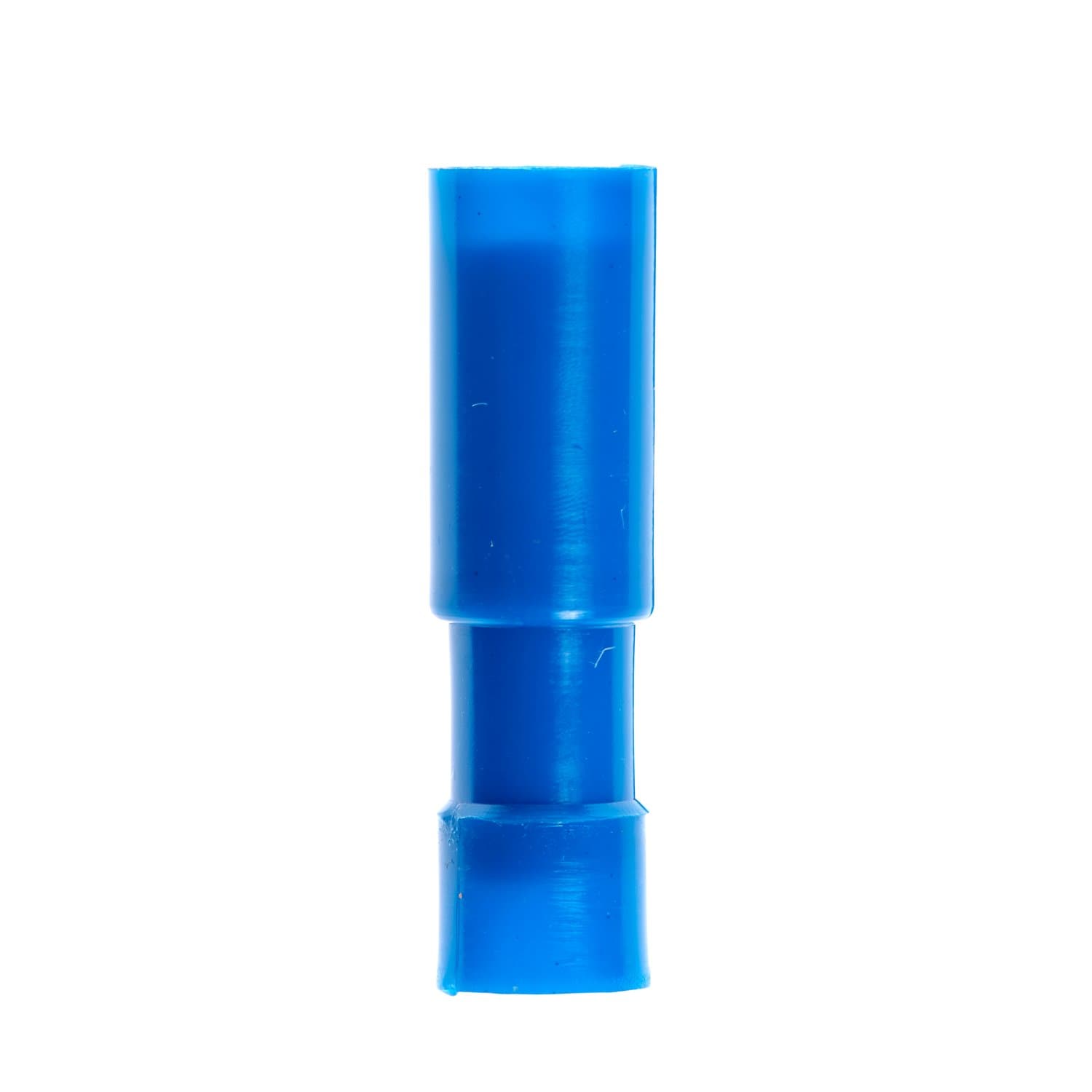

7100165277 - 3M Scotchlok Female Disconnect Nylon Insulated, 100/bottle, MNG14-180DFIX-A, 500/Case

Product Specifications

Size
100/bottle
Unit of Measure
EA
Sold As
Canister
Minimum Order Qty
500 EA
Incremental Order Qty
500 EA
Package Quantity
100 Each per Canister
Stock Type
Make To Order
Catalog #
MNG14-180DFIX-A
Manufacturer ID
7100165277
UPC
00051128588697
ECCN
EAR99
Manufacturer
3M

Details

Highlights

1000/case
Accommodates wire sizes 22 to 18 AWG
Allows for quick and easy disconnect of wires
Dents and rolled edges of this female disconnect terminal offer excellent holding force
Made of durable brass for good conductivity and has corrosion-resistant tin plating
Mates with 0.156-in wide male tab
Rated 600V for building wire and 1000V for signs, fixtures or luminaires
Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Bullet Style Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for easy disconnect. The snap plug has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Color-Coded Bullet Style Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. The snap plug features a butted-seam barrel and is covered by a funnel-designed, seamless brass sleeve to guide the wire into position. The abrasion-resistant, flared, nylon-sleeve insulation ensures positive grip and has a stepped design for mistake-proof crimping. RoHS 2011/65/EU Compliant.
