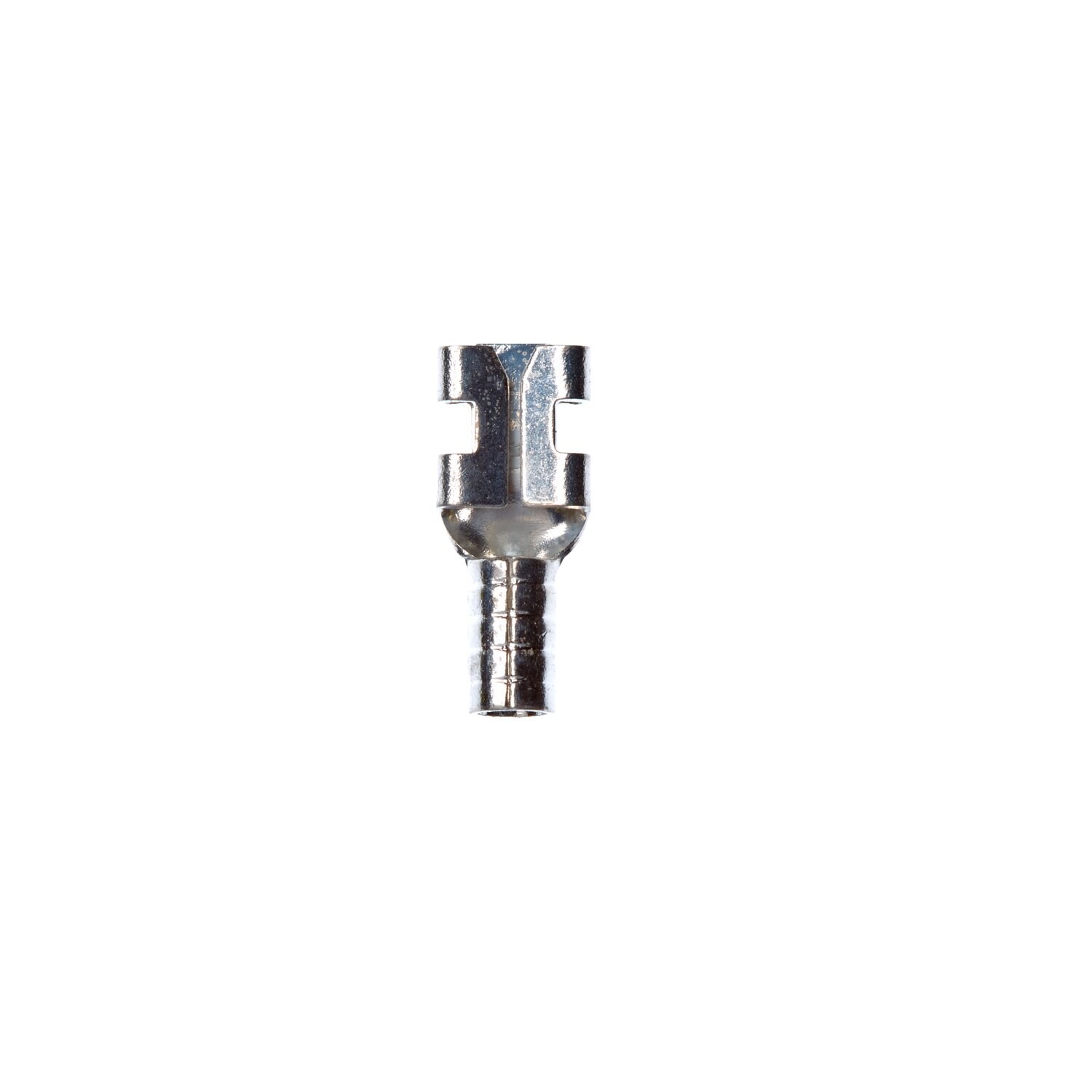

3M Scotchlok Female Disconnect, Non-Insulated Butted Seam MU18-187DFK, 22-18 AWG, 1000/Case

Part Number: 00054007023661 View more details
7100164181 - 3M Scotchlok Female Disconnect, Non-Insulated Butted Seam MU18-187DFK, 22-18 AWG, 1000/Case

Product Specifications

Unit of Measure
EA
Sold As
Case
Minimum Order Qty
1000 EA
Incremental Order Qty
1000 EA
Package Quantity
1000 Each per Case
Stock Type
Make To Order
Catalog #
MU18-187DFK
Manufacturer ID
7100164181
UPC
00054007023661
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Allows for quick and easy disconnect of wires
Dents and rolled edges of this female disconnect terminal offer excellent holding force
Made of durable brass for good conductivity and has corrosion-resistant tin plating
Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
Rated 600V for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
3M Scotchlok Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a non-insulated, butted-seam barrel and a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
