3M Scotchlok Female Disconnect, Heat Shrink Fully Nylon Insulated Butted Seam MNHU10-250DFIK, 12-10 AWG, 250/Case

Part Number: 00054007063155 View more details

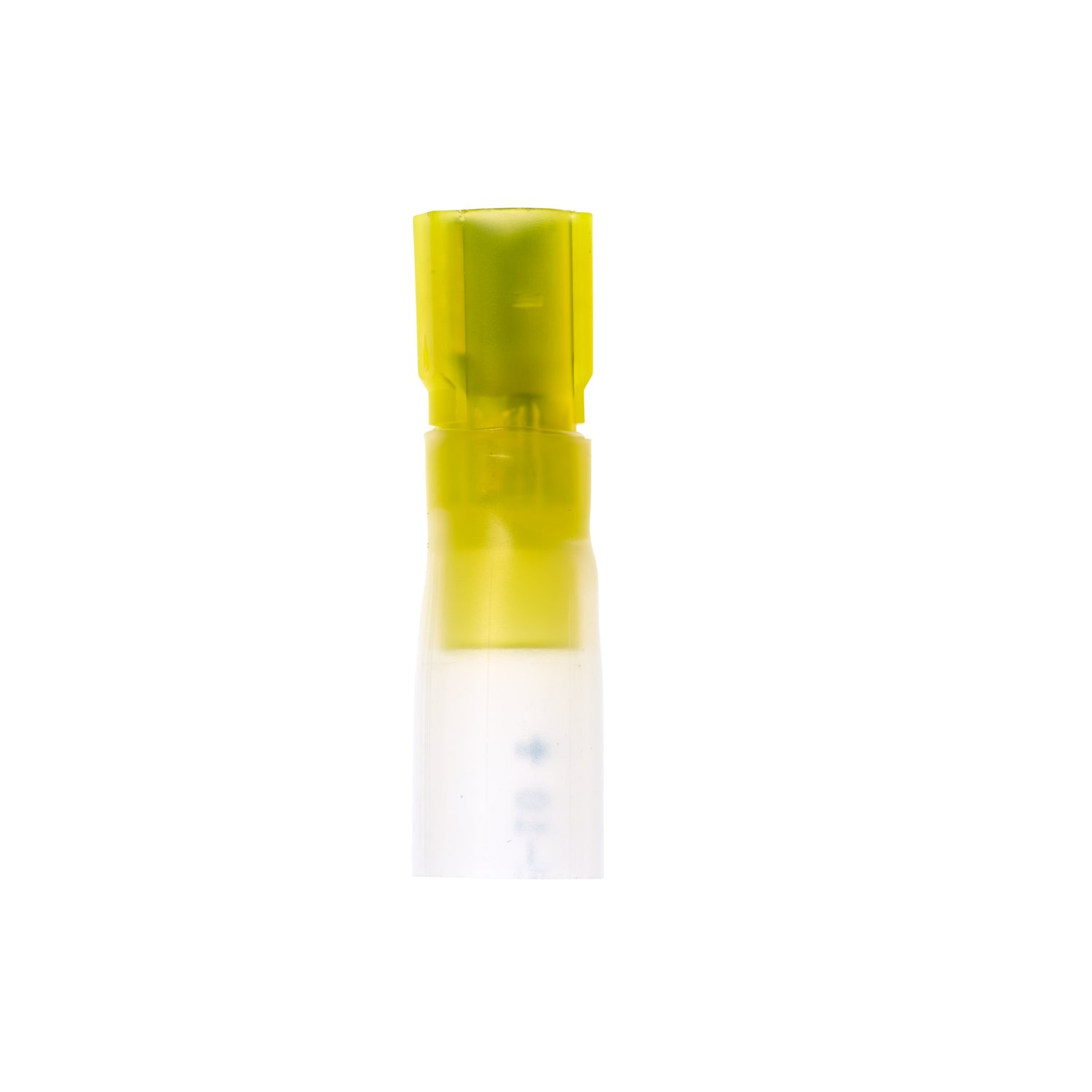

7000132444 - 3M Scotchlok Female Disconnect, Heat Shrink Fully Nylon Insulated Butted Seam MNHU10-250DFIK, 12-10 AWG, 250/Case

Product Specifications

Unit of Measure
EA
Sold As
Each
Minimum Order Qty
250 EA
Incremental Order Qty
250 EA
Stock Type
Make To Order
Catalog #
MNHU10-250DFIK
Manufacturer ID
7000132444
UPC
00054007063155
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Dents and rolled edges of this female disconnect terminal offer excellent holding force
Made of durable brass for good conductivity and has corrosion-resistant tin plating
Mates with 0.25-in wide male tab
Rated 600V for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Withstands a maximum temperature of 221 degrees F (105 degrees C)
3M Scotchlok Color-Coded Heat Shrink Female Disconnect Terminal has dents and rolled edges for easy disconnect. The butted-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C) and its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Color-Coded Heat Shrink Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This versatile terminal has a butted-seam barrel that is covered by a see-through, pre-insulated transparent tubing. The tubing provides seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
