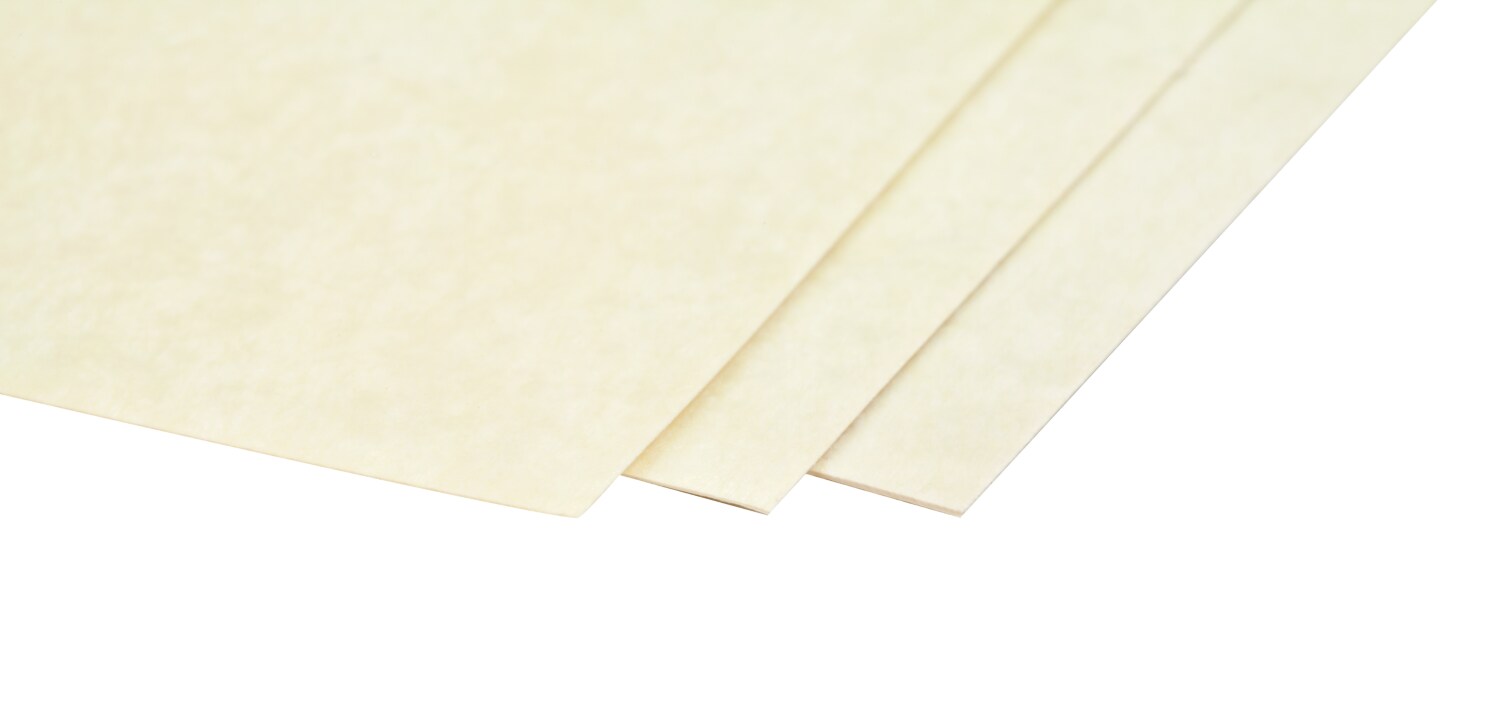

3M ThermaVolt AR Electrical Insulation Paper, 7-mil Thick, 36 in Width Roll

Part Number: 00638060413074 View more details
7010409481 - 3M ThermaVolt AR Electrical Insulation Paper, 7-mil Thick, 36 in Width Roll

Product Specifications

Unit of Measure
YDK
Minimum Order Qty
465 YDK
Incremental Order Qty
465 YDK
Stock Type
Make To Order
Shelf Life
1825 Days
Catalog #
TVAR 7.0 X 36 IN
Manufacturer ID
7010409481
UPC
00638060413074
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Approved for use in 3M UL Recognized Electrical Insulation Systems
Enhanced tensile strength and tear resistance, even in single-ply form
Ideal for use in open-ventilated, dry-type transformers
Long-term voltage endurance. Resists damage due to partial discharge, providing longer insulation life
Low moisture absorption provides excellent dimensional stability
Provides high thermal stability for improved coil performance
3M ThermaVolt AR Electrical Insulation Paper provides excellent thermal stability and high dielectric strength. It is ideal for open ventilated, dry type transformer applications. The paper provides low moisture absorption and exhibits low moisture content, even under high humidity conditions.This insulating paper has good mechanical strength that resists damage during handling and maintains excellent conformability. It is suitable for core wrap, phase insulation, high low barrier, major and minor ground insulation, interwinding and turn insulation applications. It is approved for use as major ground insulation in Class 220(R) electrical insulation systems. 3M UL Recognized Insulation Systems may be found in UL File No. 65007. REACH Compliant and RoHS 2011/65/EU Compliant .
