Millions of Consumable Products for the Aerospace Industry

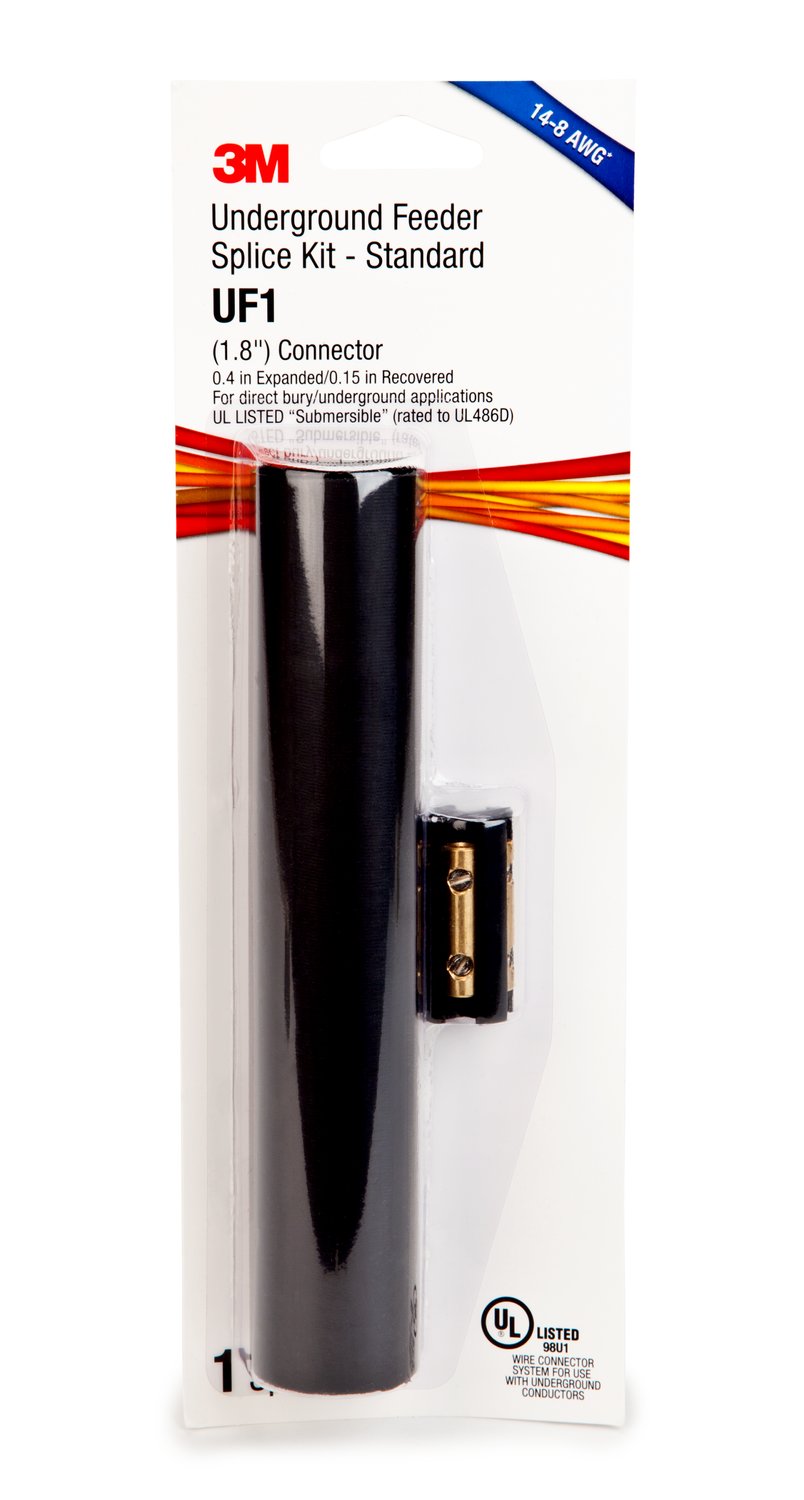

3M Splice Kit UF1 Standard, 1.8 in (45,7 mm) connector, 8.0 in (203,2 mm) heat shrink tube, 6 kits/case

Part Number: 00054007429203 View more details
7000132746 - 3M Splice Kit UF1 Standard, 1.8 in (45,7 mm) connector, 8.0 in (203,2 mm) heat shrink tube, 6 kits/case

Product Specifications

Unit of Measure
KT
Sold As
Kit
Minimum Order Qty
6 KT
Incremental Order Qty
6 KT
Stock Type
Standard
Shelf Life
120 Months
Catalog #
UF1-SPLICE KIT
Manufacturer ID
7000132746
UPC
00054007429203
ECCN
EAR99
Manufacturer
3M

Details

Highlights

4 cylindrical set screw connectors separated by a piece of vinyl insulation
Designed for use with non-shielded cables
Heavy-wall tubing for high level of moisture protection
Moisture-proof electrical connection for type UF-B underground feeder
Rated for 600V applications
UL Listed and RoHS 2011/65/EU Compliant
Withstands a temperature range of -67 to 230 degrees F (-55 to 110 degrees C)
3M Scotchlok UF Series Standard Splice Kits include all the accessories required to offer a reliable, moisture proof electrical connection for type UF B underground feeders. These kits are suitable to use on 600V rated, flat, non shielded UF cables.The Splice Kit UF Series consists of a connector insulation assembly and a heat shrink tube. The connector assembly contains four cylindrical set screw connectors separated by a piece of vinyl insulation. The heat shrink tube is a heavy wall, adhesive lined tube and is UL Listed and RoHS 2011/65/EU Compliant. It withstands a temperature range of 67 to 230 degrees F ( 55 to 110 degrees C).
