Millions of Consumable Products for the Aerospace Industry

3M Scotchlok Block Fork Non-Insulated, 100/bottle, M14-6FB/SX, suitable for use in a terminal block, 500/Case

Part Number: 00051128589694 View more details
7100165308 - 3M Scotchlok Block Fork Non-Insulated, 100/bottle, M14-6FB/SX, suitable for use in a terminal block, 500/Case

Product Specifications

Size
100/bottle
Unit of Measure
EA
Sold As
Canister
Minimum Order Qty
500 EA
Incremental Order Qty
500 EA
Package Quantity
100 Each per Canister
Stock Type
Make To Order
Catalog #
M14-6FB/SX
Manufacturer ID
7100165308
UPC
00051128589694
ECCN
EAR99
Manufacturer
3M

Details

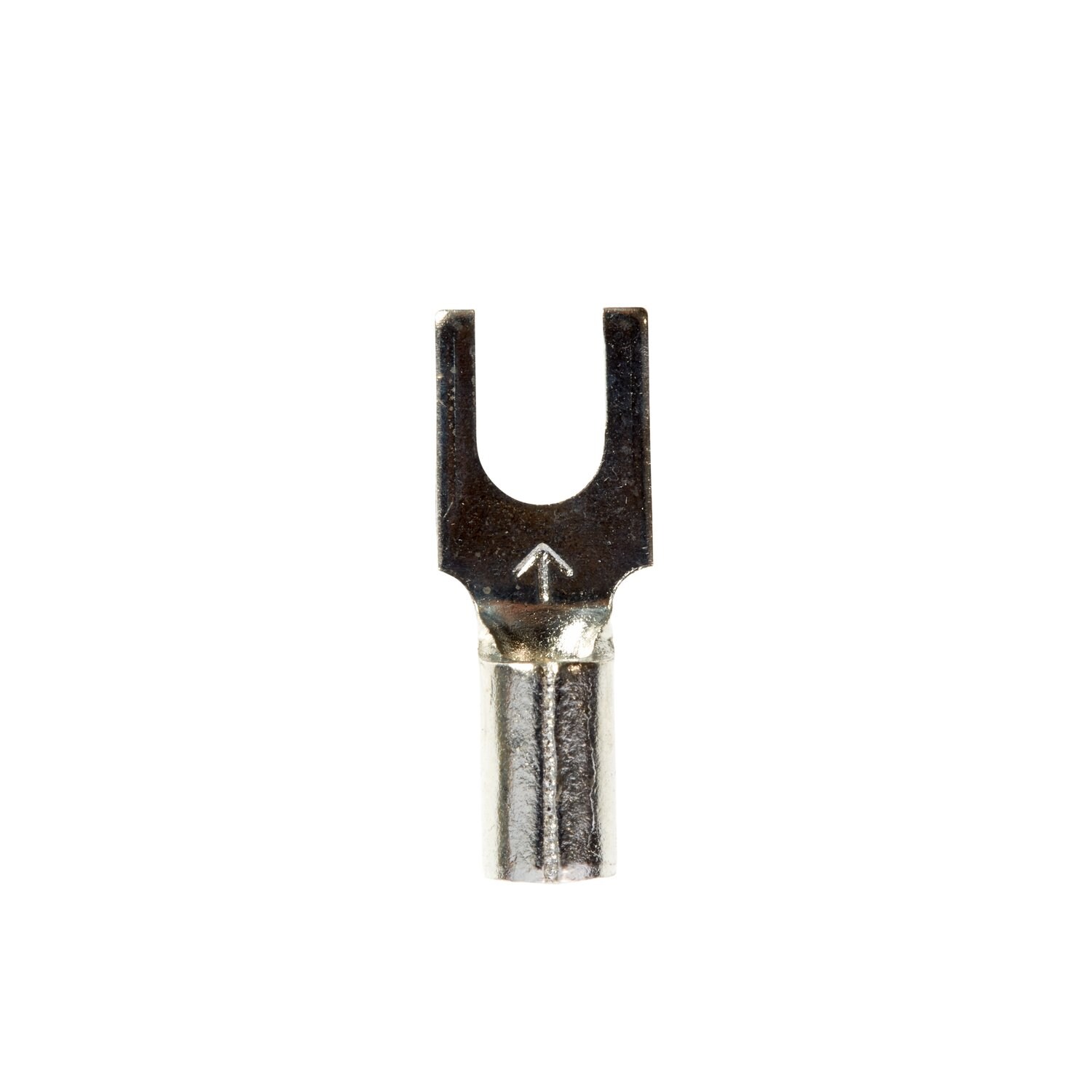

3M Scotchlok Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Small Block Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
