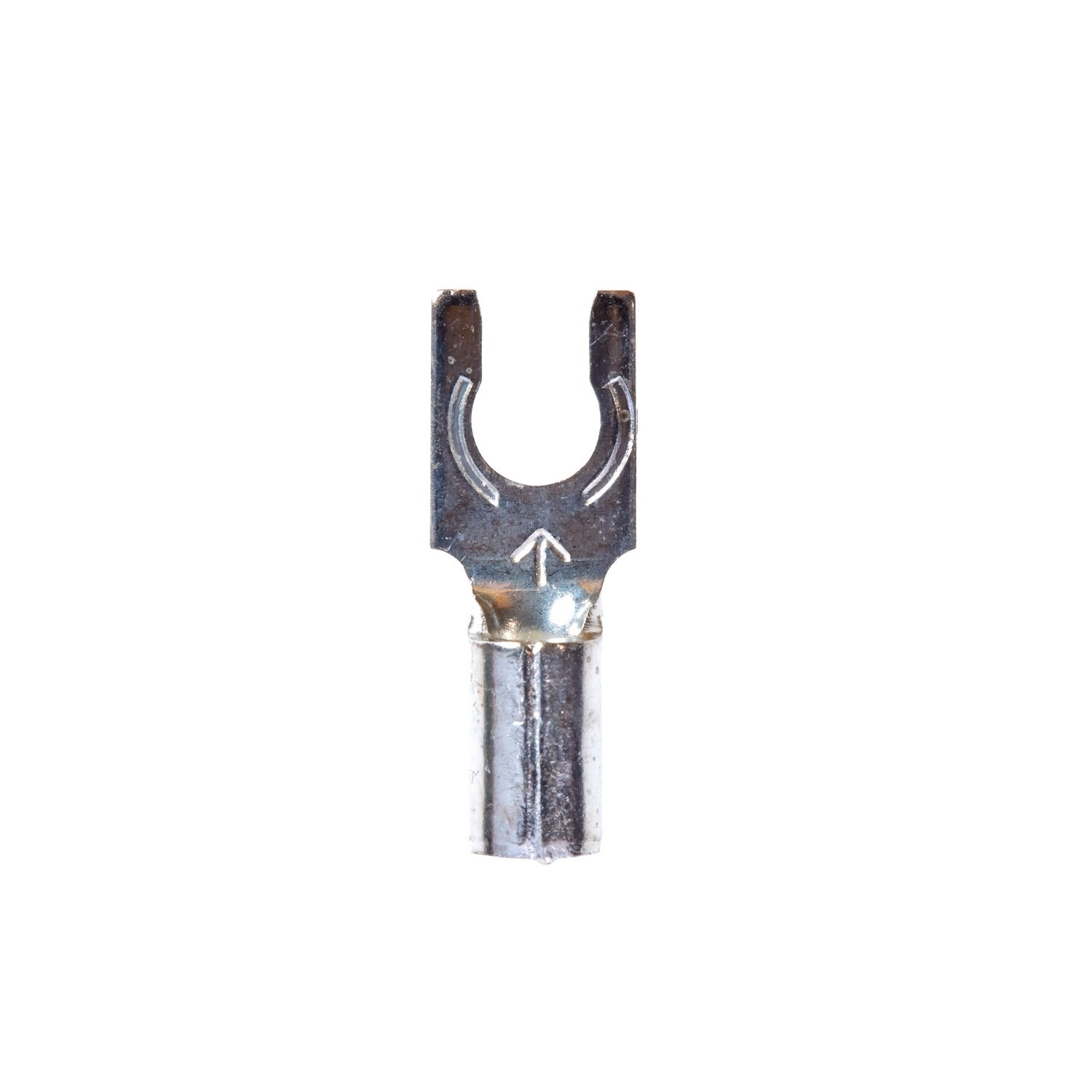

3M Scotchlok Locking Fork, Non-Insulated Brazed Seam M14-6FLK, Stud Size 6, 1000/Case

Part Number: 00054007137757 View more details
7100164207 - 3M Scotchlok Locking Fork, Non-Insulated Brazed Seam M14-6FLK, Stud Size 6, 1000/Case

Product Specifications

Unit of Measure
EA
Sold As
Case
Minimum Order Qty
1000 EA
Incremental Order Qty
1000 EA
Package Quantity
1000 Each per Case
Stock Type
Make To Order
Catalog #
M14-6FLK
Manufacturer ID
7100164207
UPC
00054007137757
ECCN
EAR99
Manufacturer
3M

Details

Highlights

600V-rated for building wire and 1000V for signs, fixtures or luminaires
Beveled mouth offers easy insertion of wires
Electrolytic copper construction offers good conductivity
Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Spring-like tongue firmly fits around the stud
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
3M Scotchlok Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Locking Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
