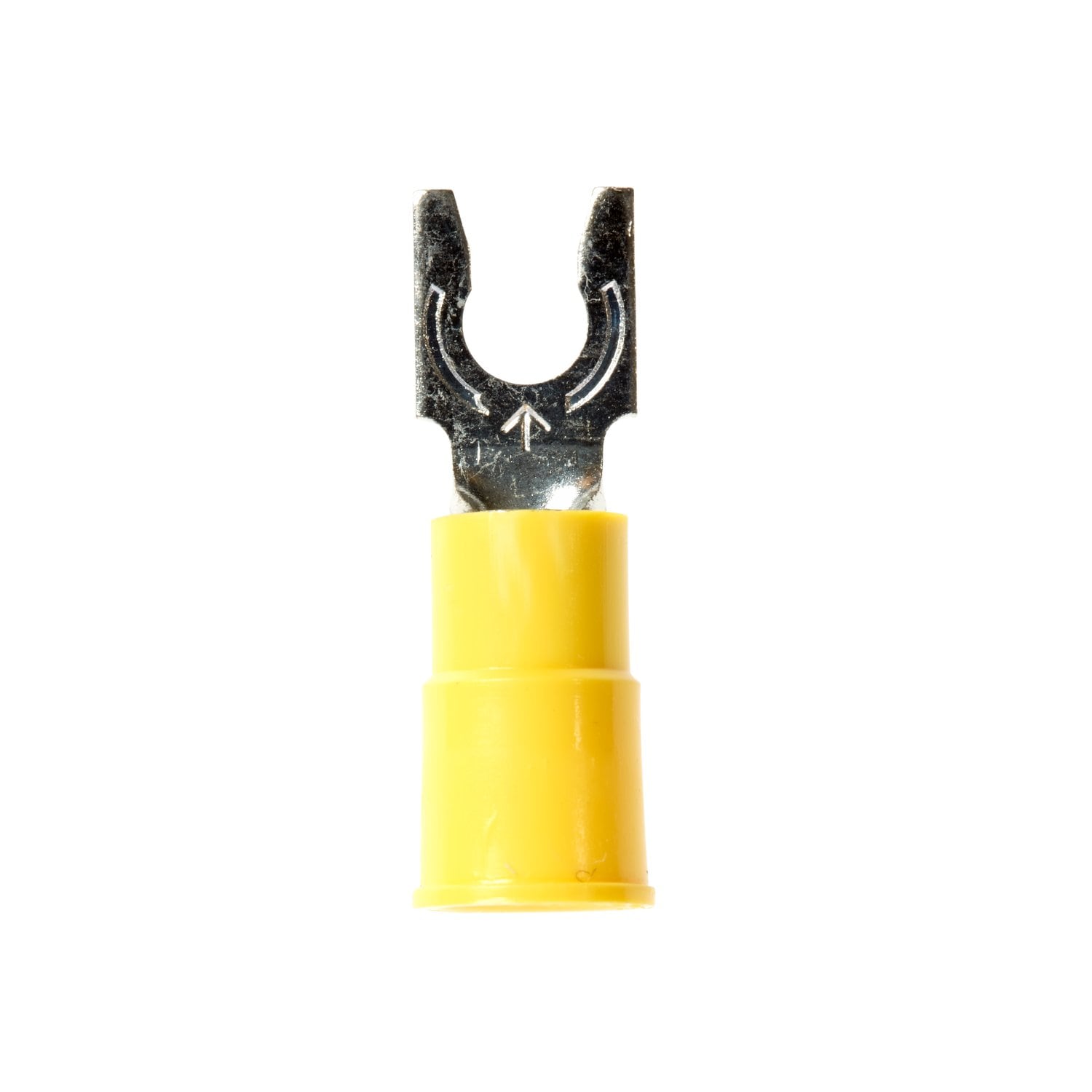

3M Scotchlok Locking Fork, Vinyl Insulated Brazed Seam MV10-8FLK, Stud Size 8, 500/Case

Part Number: 00054007139560 View more details
7100164200 - 3M Scotchlok Locking Fork, Vinyl Insulated Brazed Seam MV10-8FLK, Stud Size 8, 500/Case

Product Specifications

Unit of Measure
EA
Sold As
Case
Minimum Order Qty
500 EA
Incremental Order Qty
500 EA
Package Quantity
500 Each per Case
Stock Type
Make To Order
Catalog #
MV10-8FLK
Manufacturer ID
7100164200
UPC
00054007139560
ECCN
EAR99
Manufacturer
3M

Details

Highlights

600V-rated for building wire and 1000V for signs, fixtures or luminaires
Electrolytic copper construction offers good conductivity
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spring-like tongue firmly fits around the stud
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
