Millions of Consumable Products for the Aerospace Industry

3M Scotchlok Block Fork, Non-Insulated Brazed Seam M18-8FBK, Stud Size 8, suitable for use in a terminal block, 1000/Case

Part Number: 00054007012047 View more details

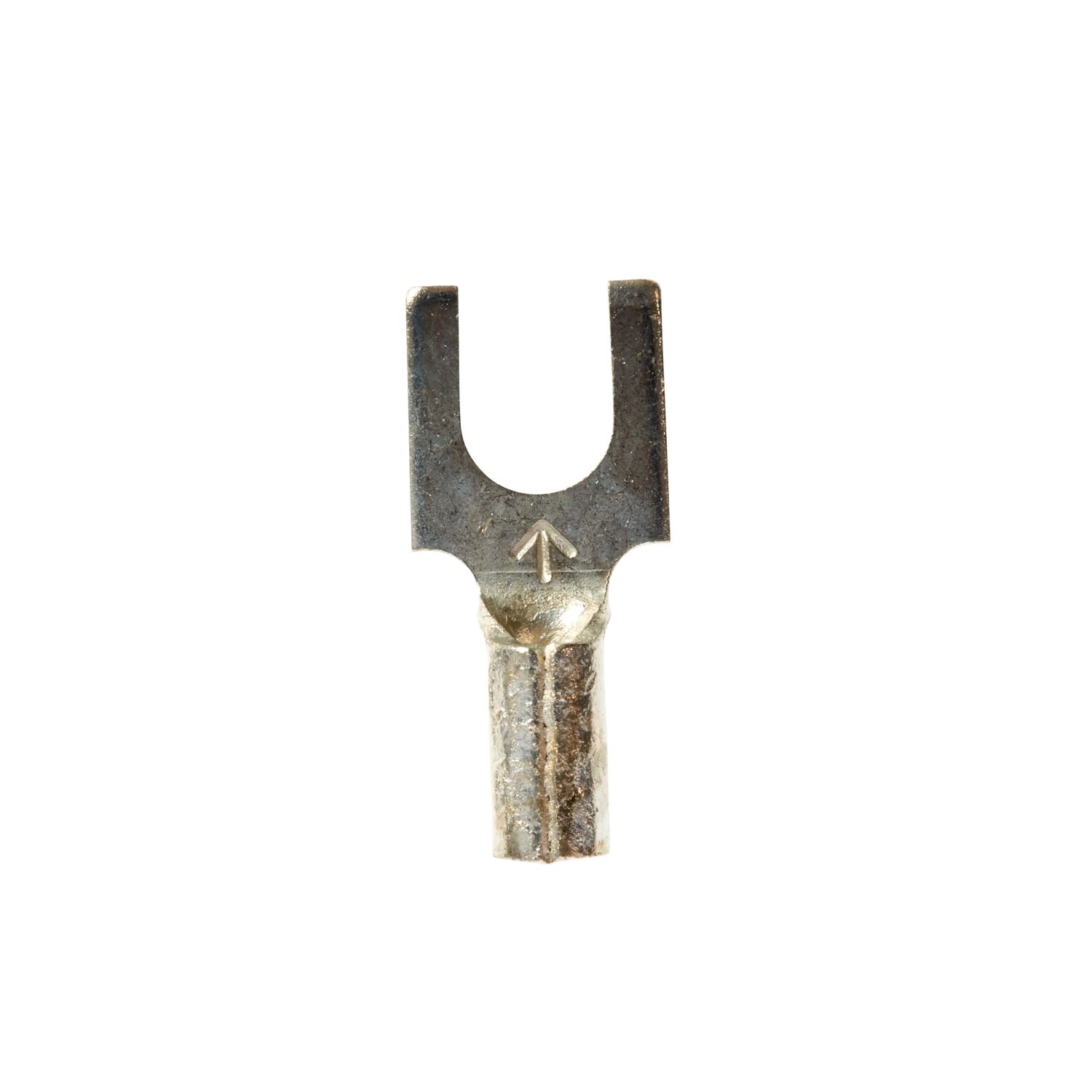

7100163948 - 3M Scotchlok Block Fork, Non-Insulated Brazed Seam M18-8FBK, Stud Size 8, suitable for use in a terminal block, 1000/Case

Product Specifications

Unit of Measure
EA
Sold As
Case
Minimum Order Qty
1000 EA
Incremental Order Qty
1000 EA
Package Quantity
1000 Each per Case
Stock Type
Make To Order
Catalog #
M18-8FBK
Manufacturer ID
7100163948
UPC
00054007012047
ECCN
EAR99
Manufacturer
3M

Details

3M Scotchlok Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Block Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
