Millions of Consumable Products for the Aerospace Industry

3M Scotchlok Fork, Vinyl Insulated Brazed Seam MV18-6FK, 22-18 AWG, 1000/Case

Part Number: 00054007011620 View more details

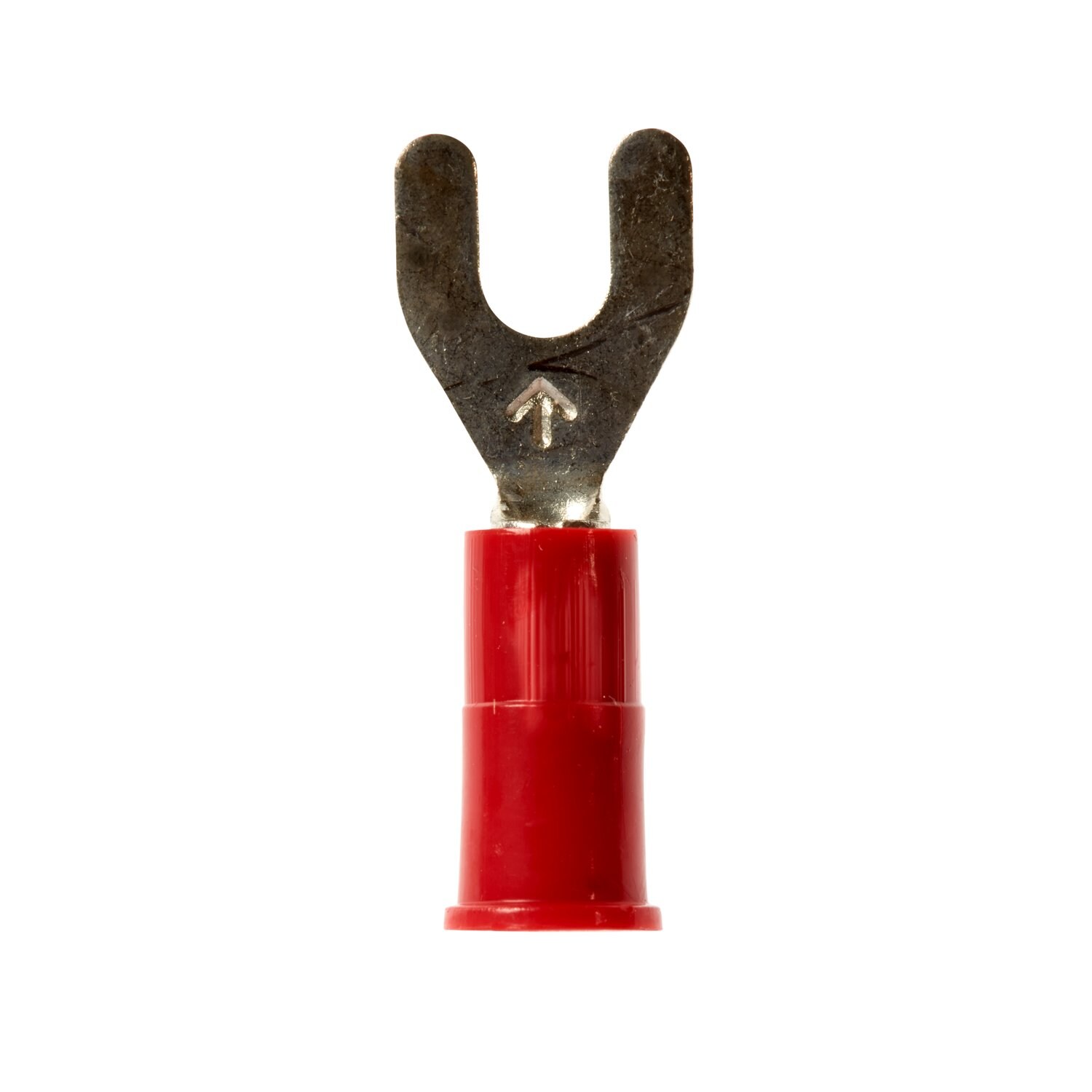

7100163939 - 3M Scotchlok Fork, Vinyl Insulated Brazed Seam MV18-6FK, 22-18 AWG, 1000/Case

Product Specifications

Unit of Measure
EA
Sold As
Case
Minimum Order Qty
1000 EA
Incremental Order Qty
1000 EA
Package Quantity
1000 Each per Case
Stock Type
Make To Order
Catalog #
MV18-6FK
Manufacturer ID
7100163939
UPC
00054007011620
ECCN
EAR99
Manufacturer
3M

Details

Highlights

600V-rated for building wire and 1000V for signs, fixtures or luminaires
Electrolytic copper construction offers good conductivity
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
Vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Wider-tongue design for use on free-standing studs
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
3M Scotchlok Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.3M Scotchlok Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
