3M Interam Endothermic Mat E-54-C is an easy-to-install heat-absorbing wrap system that provides excellent fire resistance for structural steel components and critical electrical circuitry. When exposed to intense heat, the mat releases chemically-bound water to cool its outer surfaces. Installers can easily cut the material to fit even complex installations.

A Tested System for Structural and Electrical Component Fire Protection
Tested for a full range of critical applications, our 3M™ Interam™ Endothermic Mat E- E-54C blocks heat by chemically absorbing it – when exposed to extreme heat, it releases chemically bound water that cools the outer surface of the mat. This helps reduce the rate of temperature rise and slows heat transfer. This mat has been tested for surface flame spread in accordance with ASTM E 84 (UL 723), provides up to 4-hour fire protection for structural steel applications in accordance with ASTM E 119 (UL 263), and up to 3 hour fire protection for electrical circuit applications in accordance with ASTM E 1725. It also protects against large hydrocarbon pool fires in accordance with ASTM E 1529 (UL 1709) and against natural gas jet fires (NBN 713-20/ISO TC 92).

Recommended Applications

• Structural steel
• Electrical circuity/raceways
• Cables, cable trays and conduits
• Equipment shrouds
• Critical systems for safe shutdown or occupant evacuation
• New or retrofit construction
• Applied over existing fire protection

Saves Before, During and After Installation

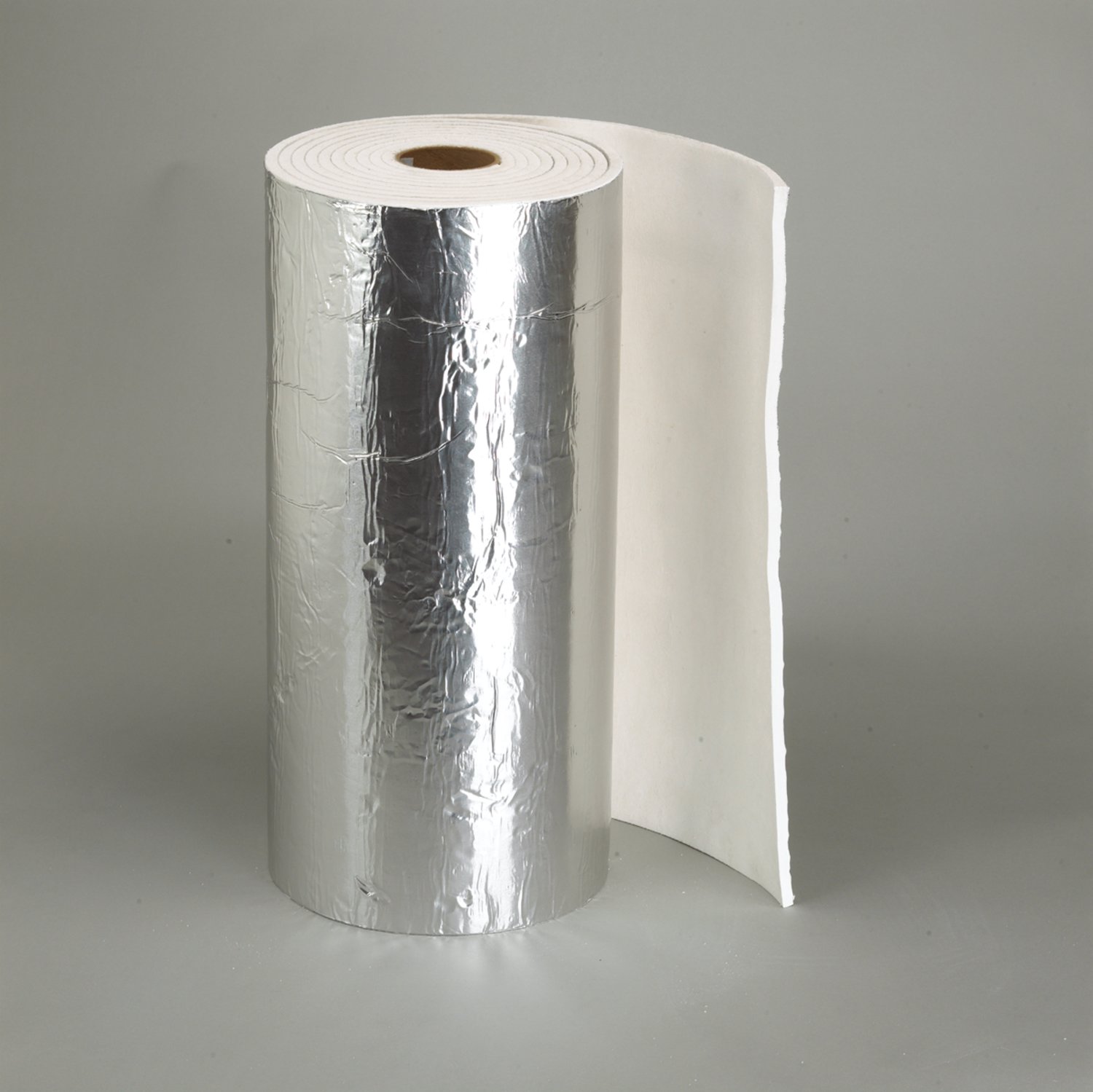

3M™ Interam™ Endothermic Mat E-54C arrives in a convenient roll that makes for simple storage and ease of use on the job site. Flexible and easy to cut and configure, this material makes installation faster and easier even on complex shapes and around corners – ideal for new and retrofit applications in the field. There is no need for water, mixing or the time and effort needed to measure for specific thicknesses. The mat is available with stainless steel backing, ideal for use with  3M™ Stainless Steel Tape T-65. It non-corrosive, easy to clean and requires no maintenance when properly installed. It is also re-enterable and easy to inspect – simply unwrap the mat, inspect the component and re-wrap.

The Science of Better Fire Protection from 3M
Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life –developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. And all of it goes into each of our adhesives, sealants, protective coatings, devices and fire resistance products including 3M™ Interam™ Endothermic Mat E-54C to help businesses like yours operate faster, better and more efficiently.
