3M Epoxy Film Electrical Tape Super 20, 15.5 in X 60 yd log trimmed, both sides, 1 Roll/Case

Part Number: 00051138692087 View more details

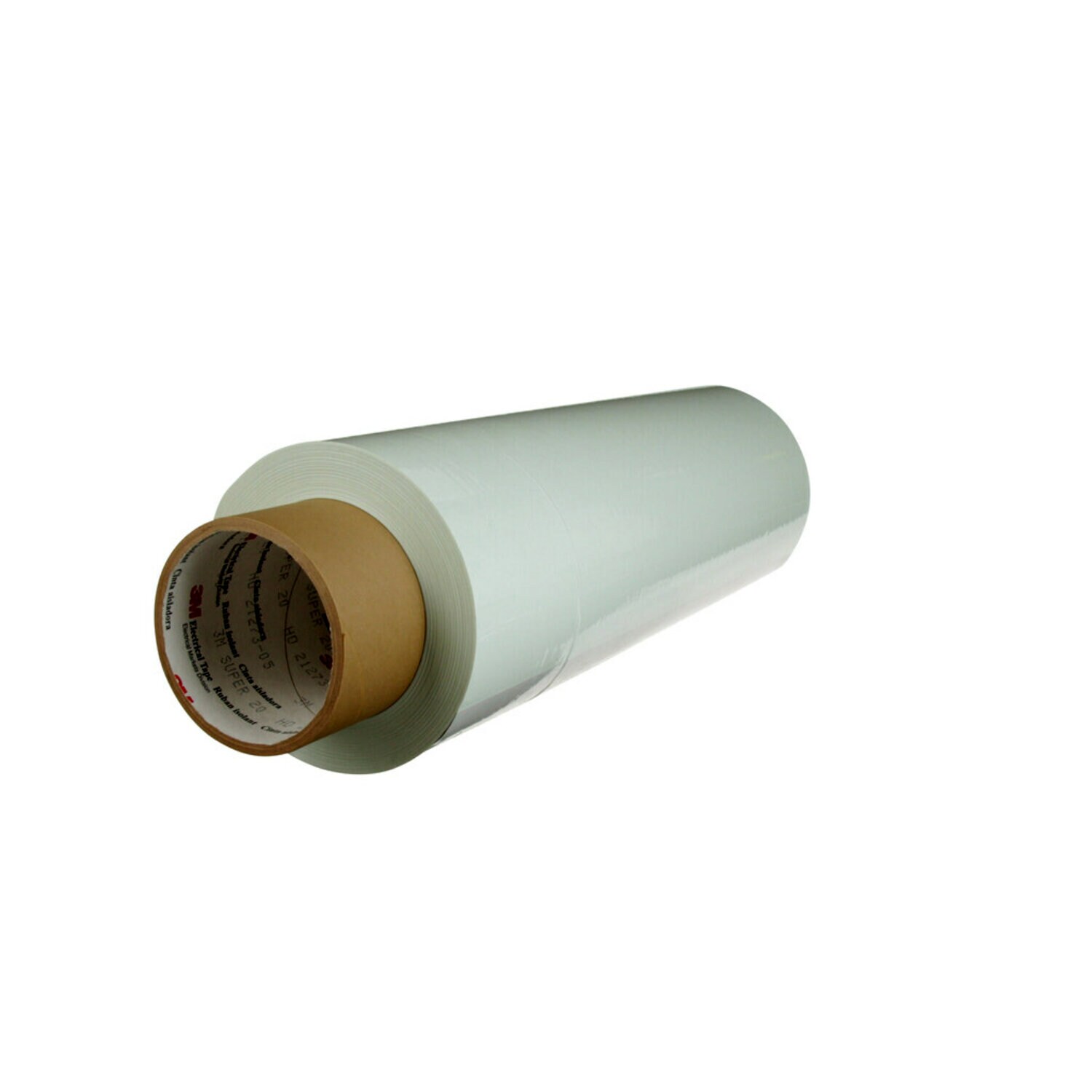

7000031666 - 3M Epoxy Film Electrical Tape Super 20, 15.5 in X 60 yd log trimmed, both sides, 1 Roll/Case

Product Specifications

Size
15.5 in X 60 yd log trimmed
Unit of Measure
RO
Sold As
Case
Minimum Order Qty
1 RO
Incremental Order Qty
1 RO
Stock Type
Standard
Shelf Life
1825 Days
Catalog #
S20LOG 15.5"X60YD
Manufacturer ID
7000031666
UPC
00051138692087
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Flame-retardant and highly resistant to heat, oxidation, solvents and oils
Printable
Suitable for use in transformers, coils, stick-wound coils, wrapping relays and bobbin-wound, sub-fractional horsepower, shaded-pole motors
The combination of the acrylic adhesive and the epoxy film backing provides excellent adherence and electrical properties
UL Listed and RoHS 2011/65/EU Compliant
Withstands a temperature range of 32 to 311 °F (0 to 155 °C)
3M Epoxy Film Electrical Tape Super 20 is a 5 mil thick, high dielectric electrical tape. This flame retardant tape is used as a coil cover, anchor, harnessing, banding, core, layer and crossover insulation. This tape is 600V rated and withstands a temperature range of 32 to 311 °F (0 to 155 °C).3M Tape Super 20 has an acrylic, pressure sensitive adhesive and is resistant to heat, oxidation, solvents and oils. This puncture resistant tape has excellent electrical and handling properties. Highly conformable tape is tough and provides resistant to solder damage. It is suitable for use in wrapping relays, coils, transformers, bobbin wound sub fractional horsepower shaded pole motors and stick wound coils. UL Listed and RoHS 2011/65/EU Compliant.
