3M EMI Absorber AB7020HF, 210 mm x 297 mmx 0.25 mm

Part Number: 00051141415659 View more details

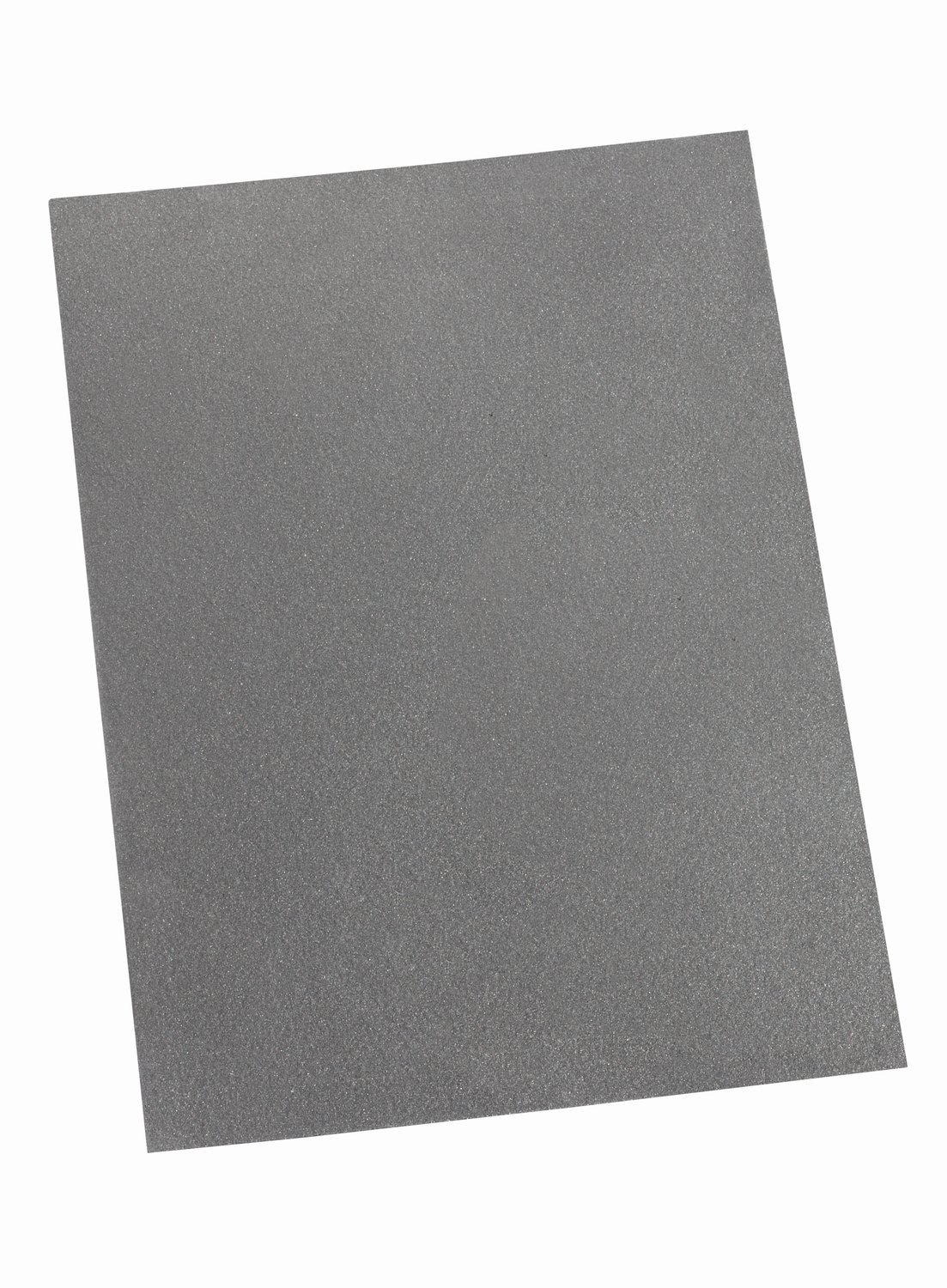

7100001702 - 3M EMI Absorber AB7020HF, 210 mm x 297 mmx 0.25 mm

Product Specifications

Size
210 mm x 297 mm x 0.25 mm
Unit of Measure
EA
Sold As
Case
Minimum Order Qty
50 EA
Incremental Order Qty
50 EA
Package Quantity
50 Each per Case
Stock Type
Make To Order
Shelf Life
365 Days
Catalog #
AB7020HF
Manufacturer ID
7100001702
UPC
00051141415659
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Acrylic   pressure-sensitive adhesive (PSA) allows for easy application
Easily die-cut into complex shapes
High-permeability magnetic film
Improved lower frequency absorber vs. the 3M EMI Absorber AB5000 Series or 3M EMI Absorber AB5000S Series (at < 1 GHz)
Less than 1500 ppm total bromine and chlorine
Less than 900 ppm bromine and chlorine
Low-halogen version of 3M EMI Absorber AB7000 Series absorbers
Meets guidelines set forth in IEC 61249-2-21
The 3M EMI Absorber AB7000HF Series is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz to 4 GHz. Target frequency range– the “sweet spot” for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.
