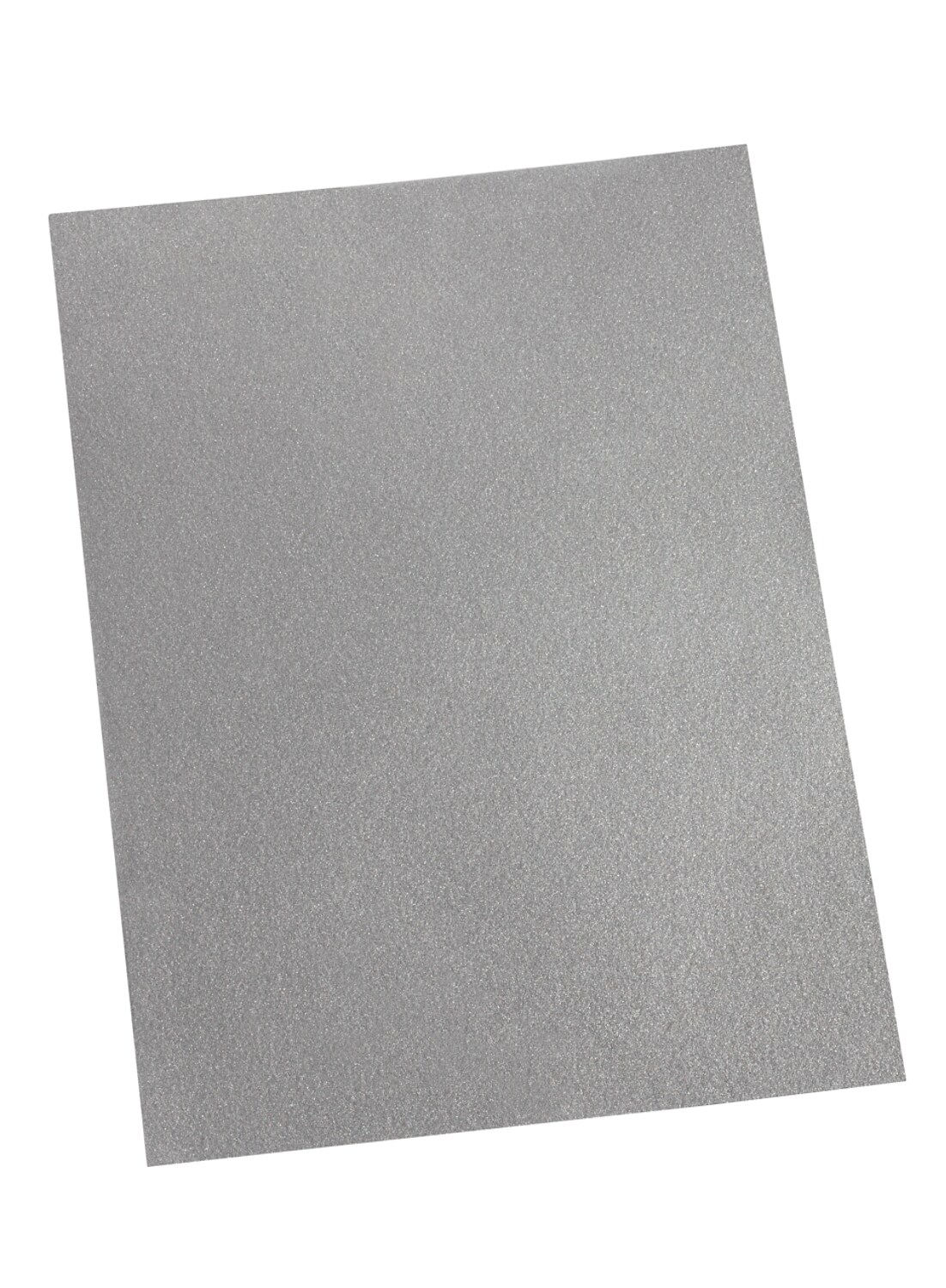

3M EMI Absorber AB7050HF without Adhesive, 210 mm x 297 mm

Part Number: 00068060486004 View more details
7100416093 - 3M EMI Absorber AB7050HF without Adhesive, 210 mm x 297 mm

Product Specifications

Size
210 mm x 297 mm
Unit of Measure
ST
Sold As
Case
Minimum Order Qty
1000 ST
Incremental Order Qty
1 ST
Package Quantity
50 Sheets per Case
Stock Type
Make To Order
Shelf Life
365 Days
New Product Indicator
X
Manufacturer ID
7100416093
UPC
00068060486004
ECCN
EAR99
Manufacturer
3M

Details

Highlights

Acrylic pressure sensitive adhesive makes for fast, simple application
Broad operating frequency of 300 MHz to 4 GHz
Die-cuttable into shapes for precise fit
Filler consisting of soft metal flakes absorb noise into the polymer
Halogen-free*
Polymer resin sheets are flexible for consistent coverage
Removable liner makes material easy to handle
Target absorbing performance from 800 MHz - 2.5 GHz
The 3M EMI Absorber AB7000HF Series is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz to 4 GHz. Target frequency range– the “sweet spot” for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.
